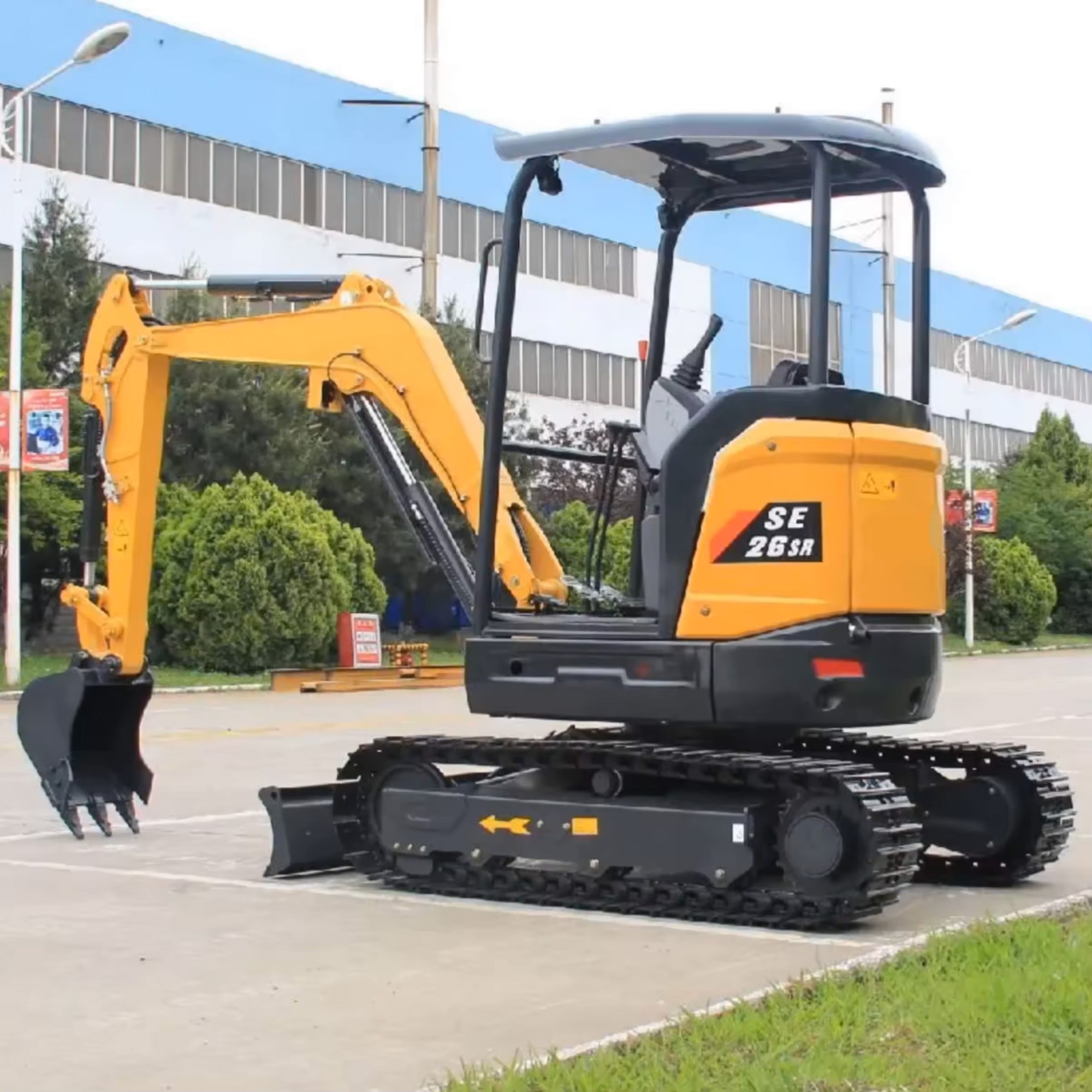

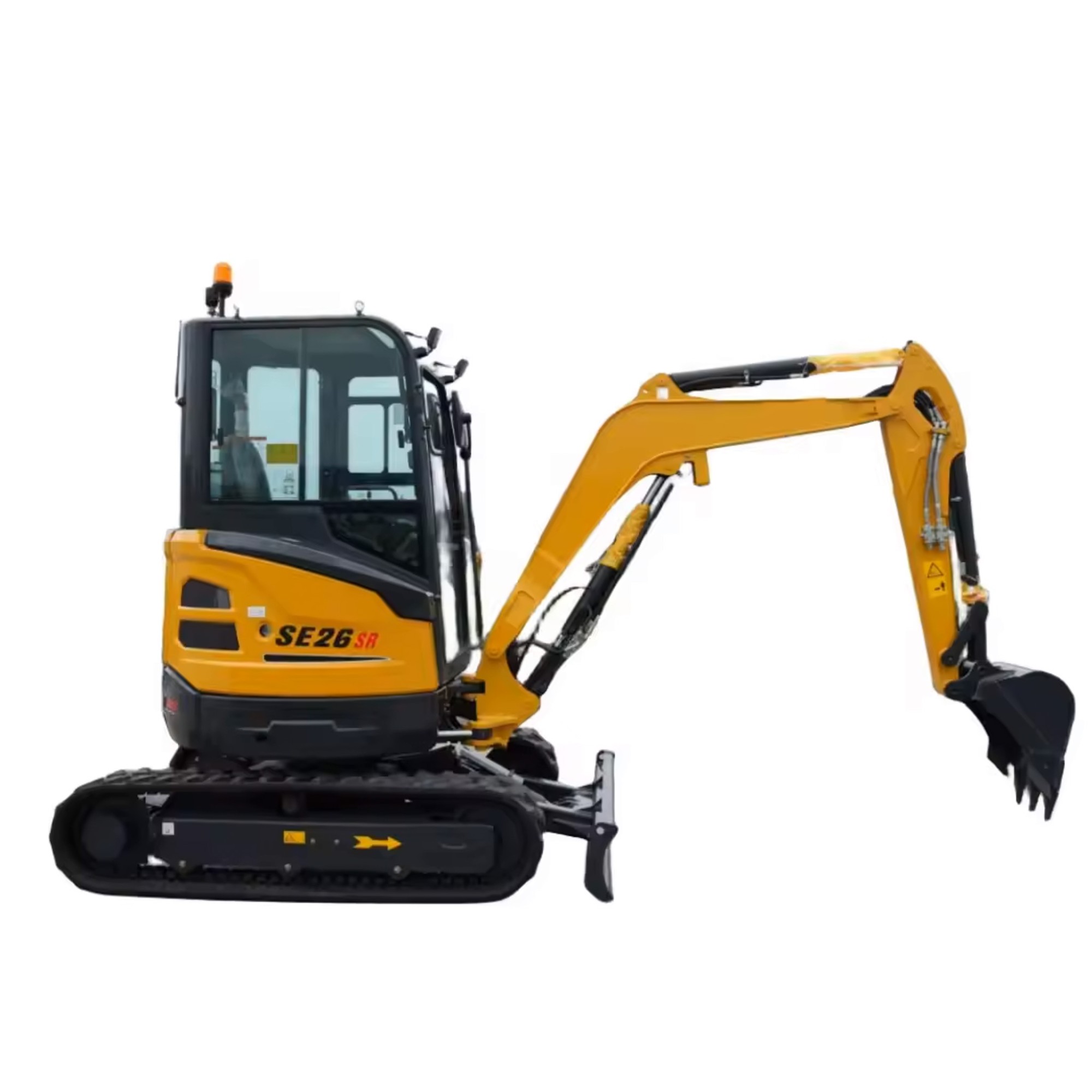

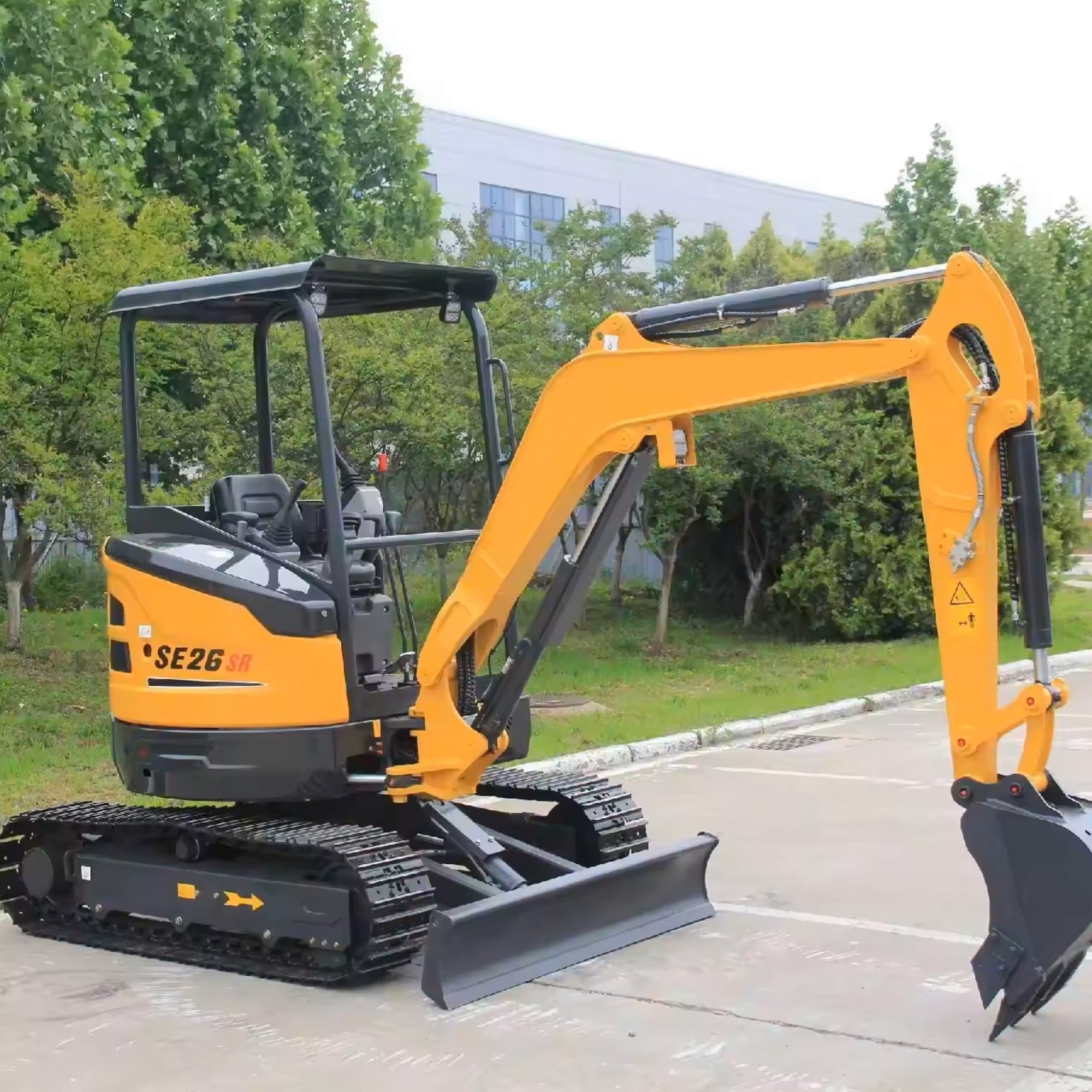

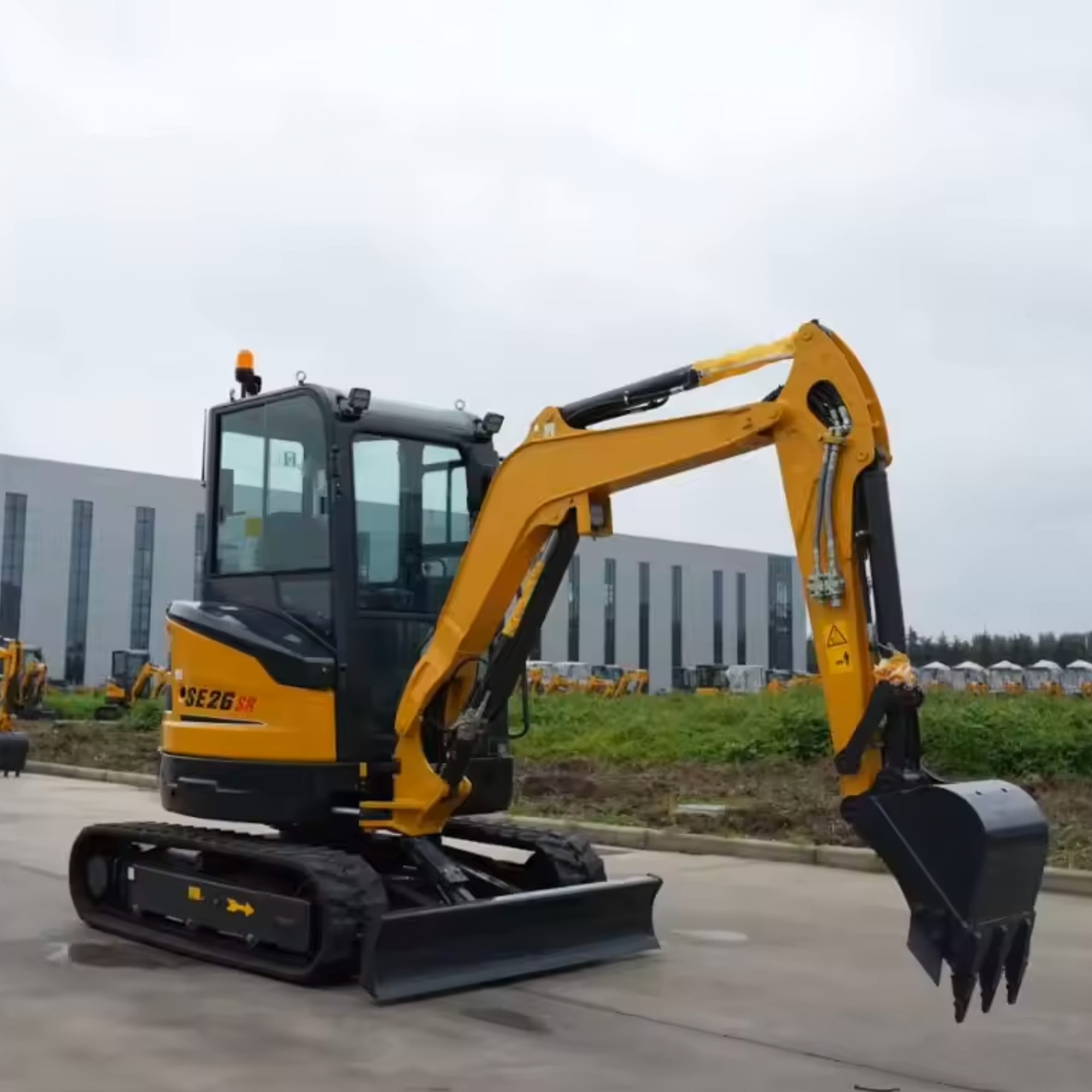

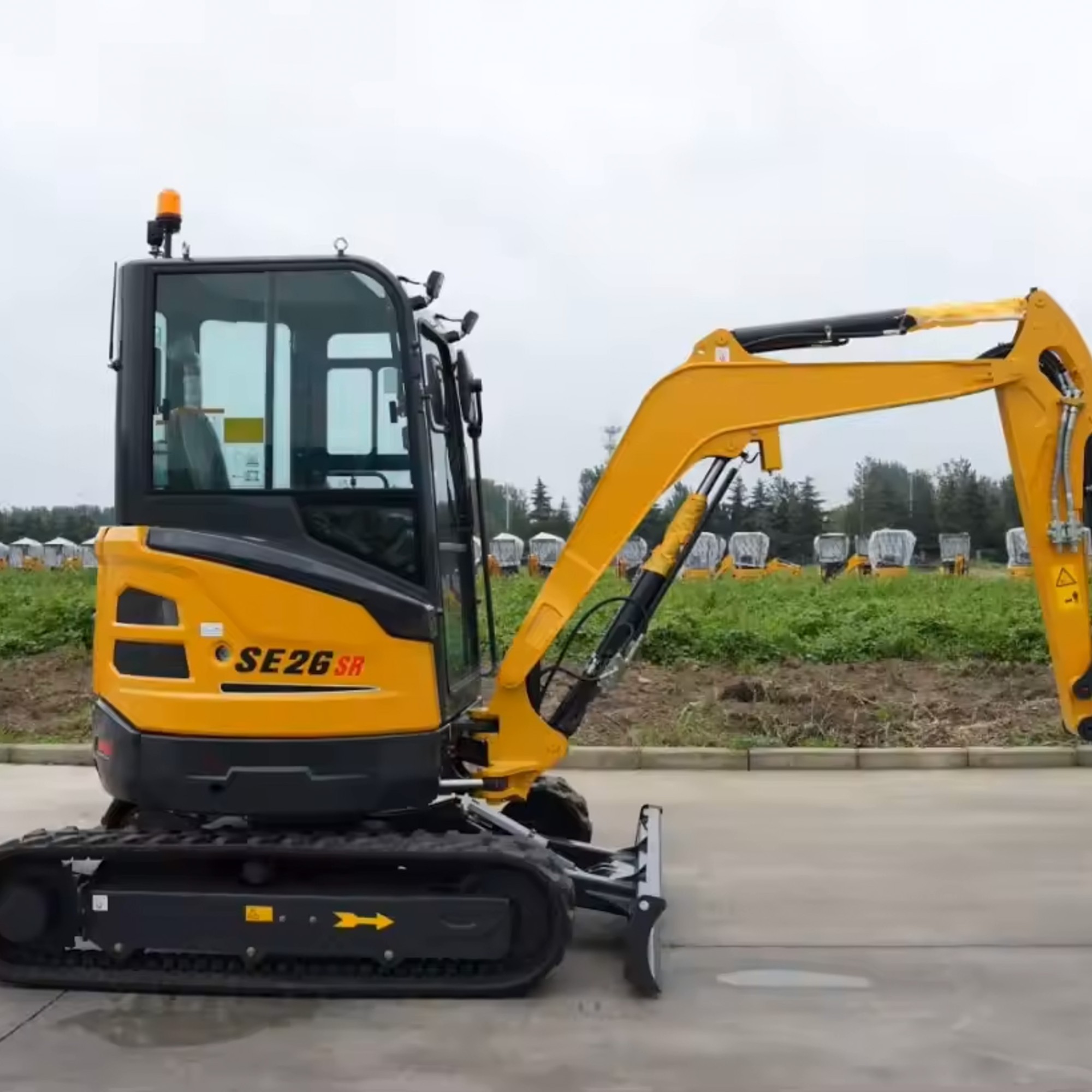

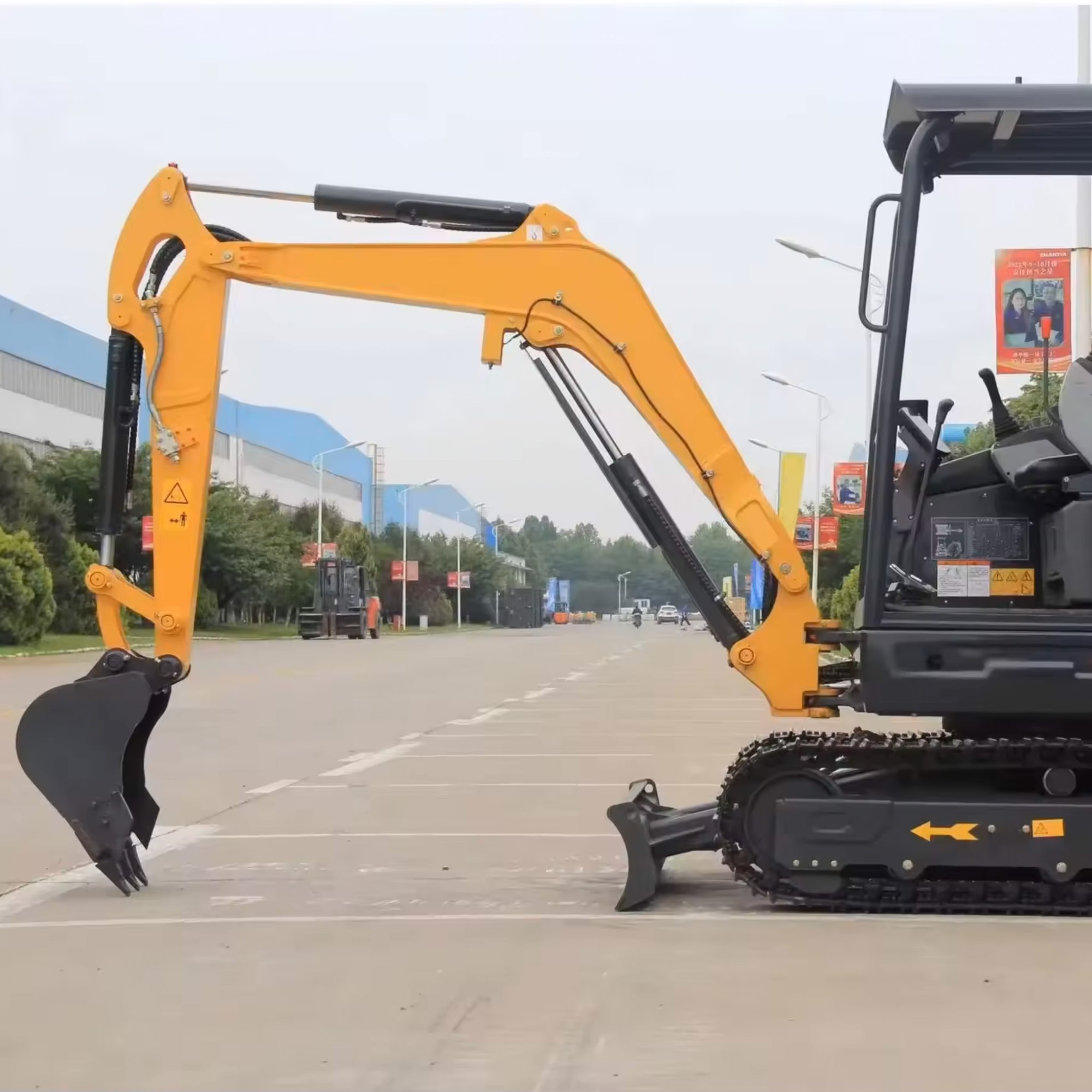

Shantui SE26SR 2.8Ton Excavator

• Price : $20,000.00
Engine:
Model: 3TNV80F
Type: 3 cylinders, direct injection
Number of cylinders: 3
Emission: EPA Tier4Final/Europe Stage V
Displacement: 1.267L
Power output: 14.6kW/2400rpm
Hydraulic System:
Type: Variable plunger pump
Operating flow: 86.4L/min
Operating pressure: 24.5MPa
Digging Force:
Bucket digging force: 24kN
Arm digging force: 14.8kN
Bucket:
Type: Backhoe bucket
Capacity: 0.065m²
Width: 460mm
Travel System:
Type: Plunger motor
Track roller: 2x3
Track shoes: 2x42
Carrier roller quantity: 1x2
Travel speed: 2.3/4.0km/h
Max.  Drawbar pull: 29kN
Grade ability: ≤30°
Swing System:
Swing motor type: Plunger motor
Swing pressure: 23MPa
Swing speed: 0 - 10r/min
Brake type: Pressure release mechanical braking
Refilling Capacities & Lubrications:
Fuel tank: 33L
Cooling system: 5L
Engine oil: 3.4L
Hydraulic oil tank: 22L
System Capacity: 32L
Operating Weight and Ground Pressure:
Shoe width: 300mm
Ground pressure: 26.3kPa/27.3kPa
Operating weight: 2780kg/2880kg
Dimensions:
Overall length: 4200mm
Ground contact length (Transportation): 2735mm
Overall height (to top of boom): 1540mm
Overall width: 1550mm
Overall height (to top of cab): 2480mm
Counter weight ground clearance: 575mm
Ground clearance: 300mm
Tail swing radius: 775mm
Crawler wheel base: 1540mm
Track length: 2020mm
Track gauge: 1250mm
Track width: 1550mm
Shoe width: 300mm
Bonnet height: 1530mm
Revolving frame width: 1400mm
Distance from swivel center to tail: 775mm
Working Range:
Max. digging height: 4390mm
Max. dumping height: 3060mm
Max. digging depth: 2800mm
Max. vertical digging depth: 2310mm
Max. digging radius: 4800mm
Max. digging radius at ground level: 4680mm
Tail swing radius: 775mm
Maximum Dozer Lift Height: 300mm
Maximum Dozer Dig Depth: 320mm.
