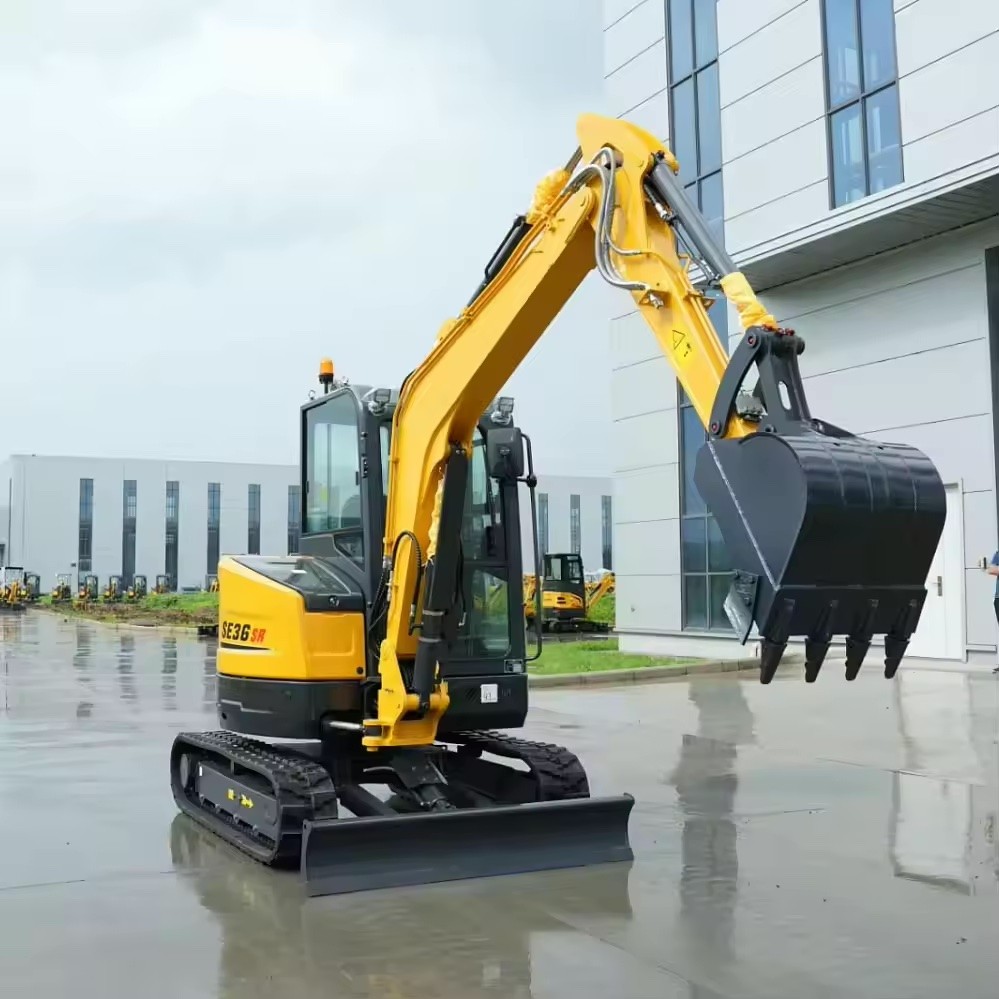

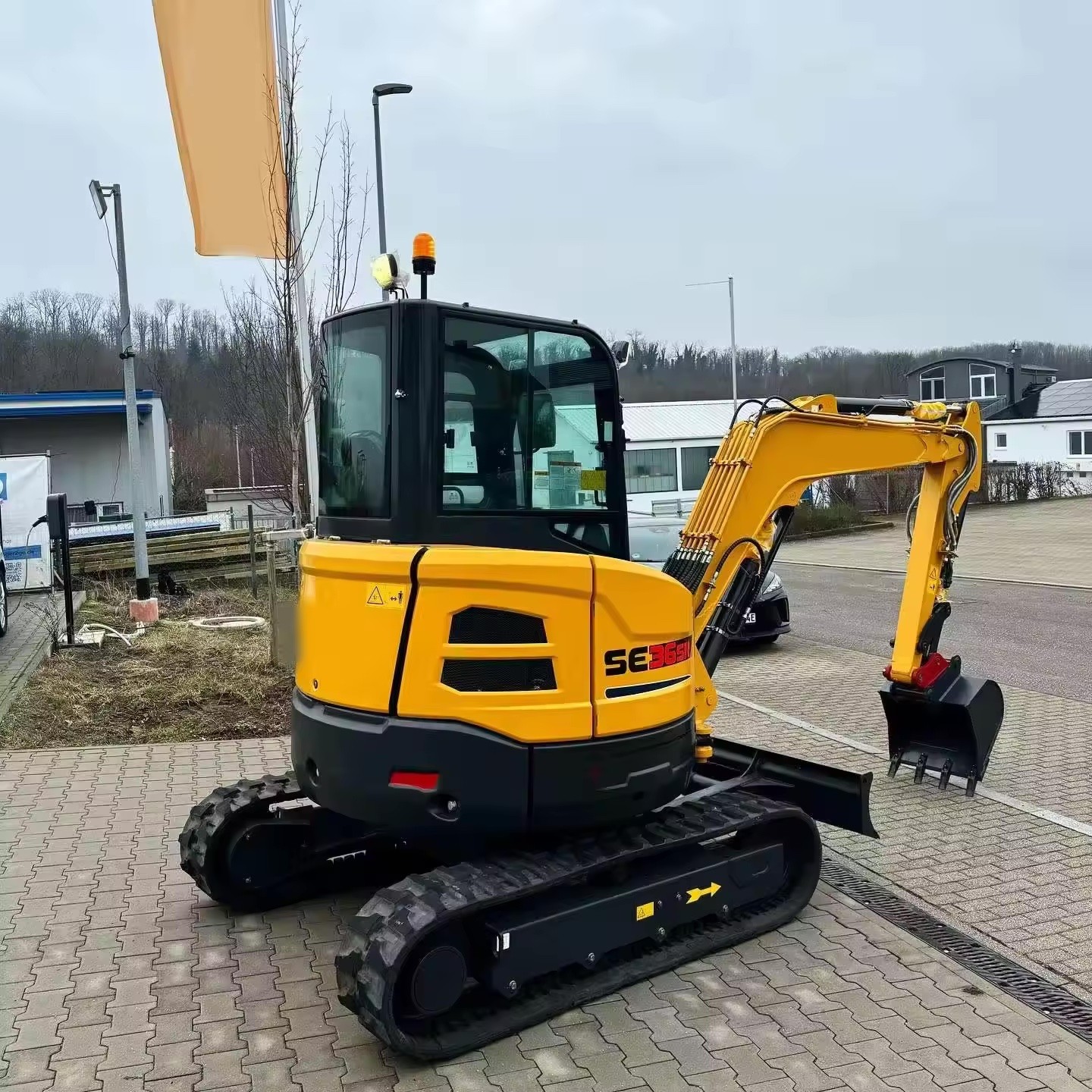

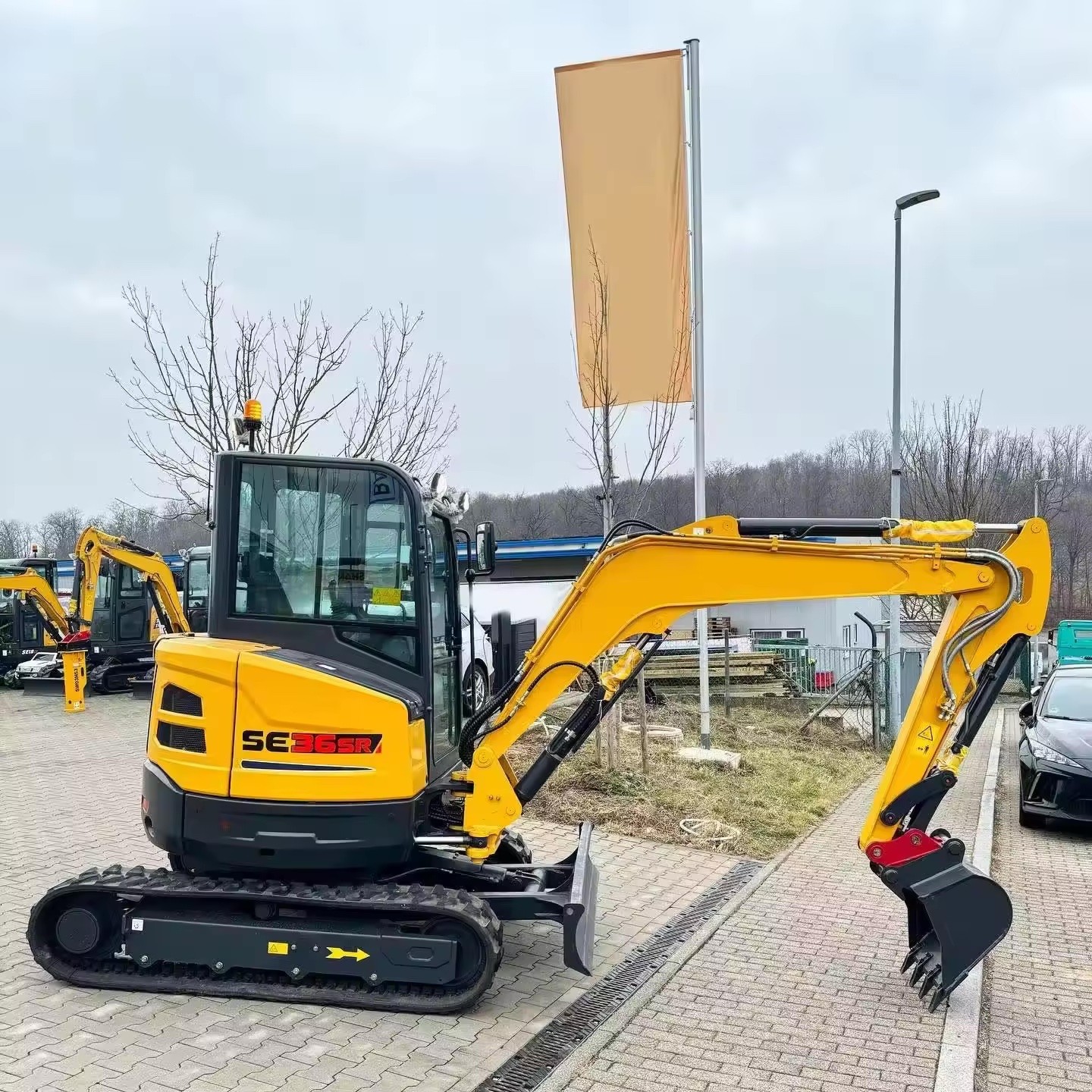

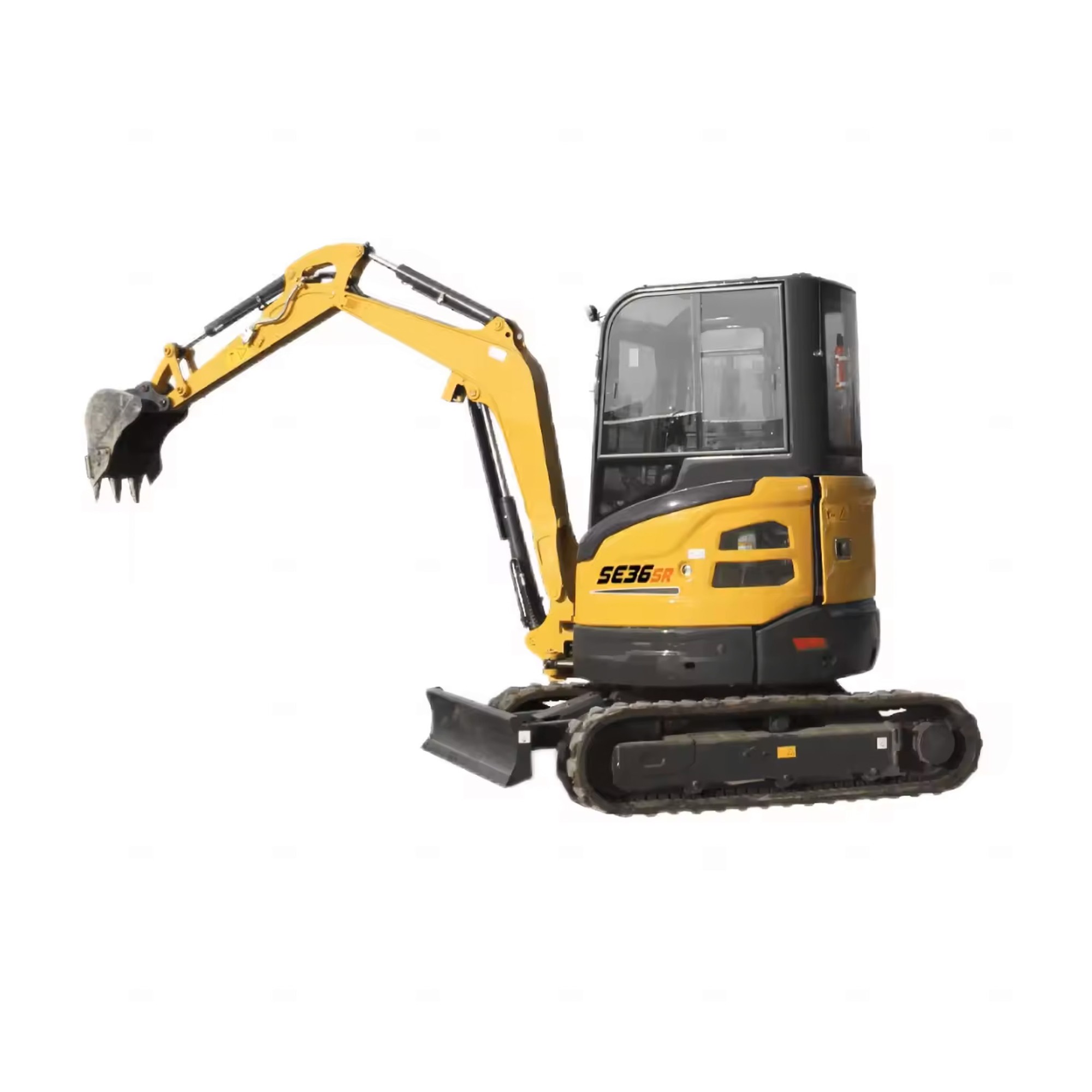

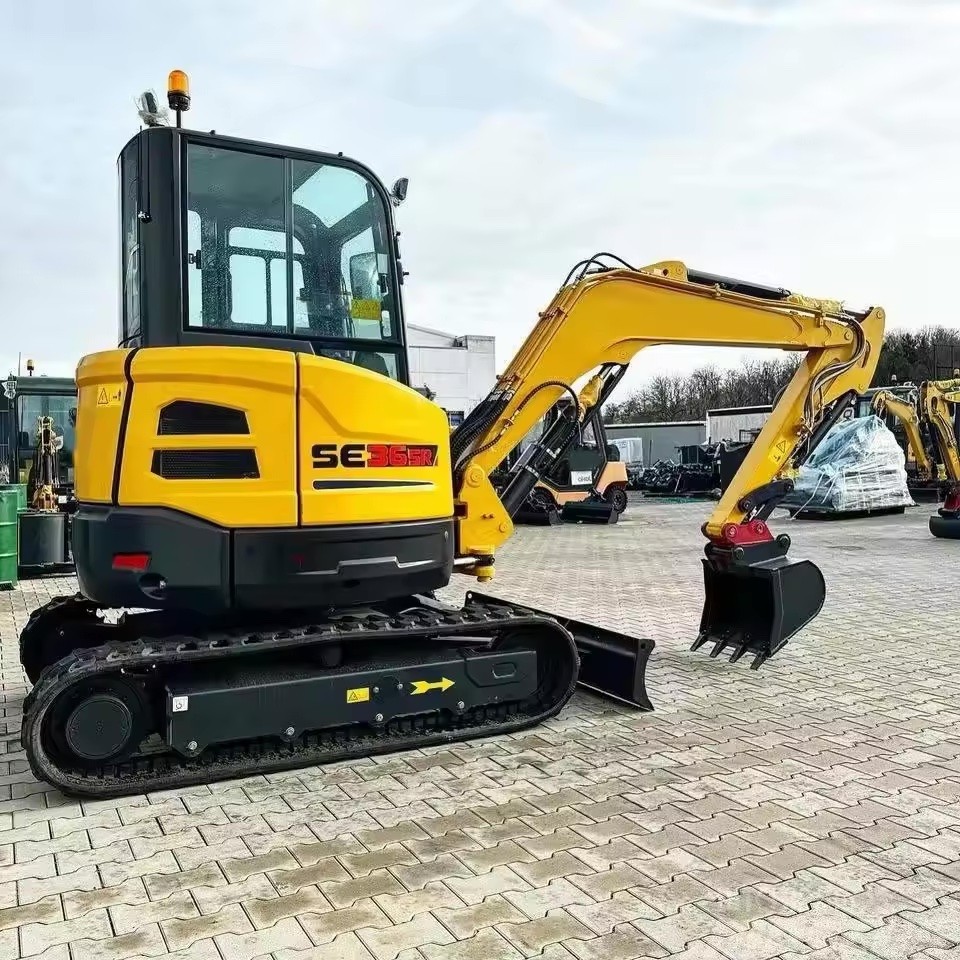

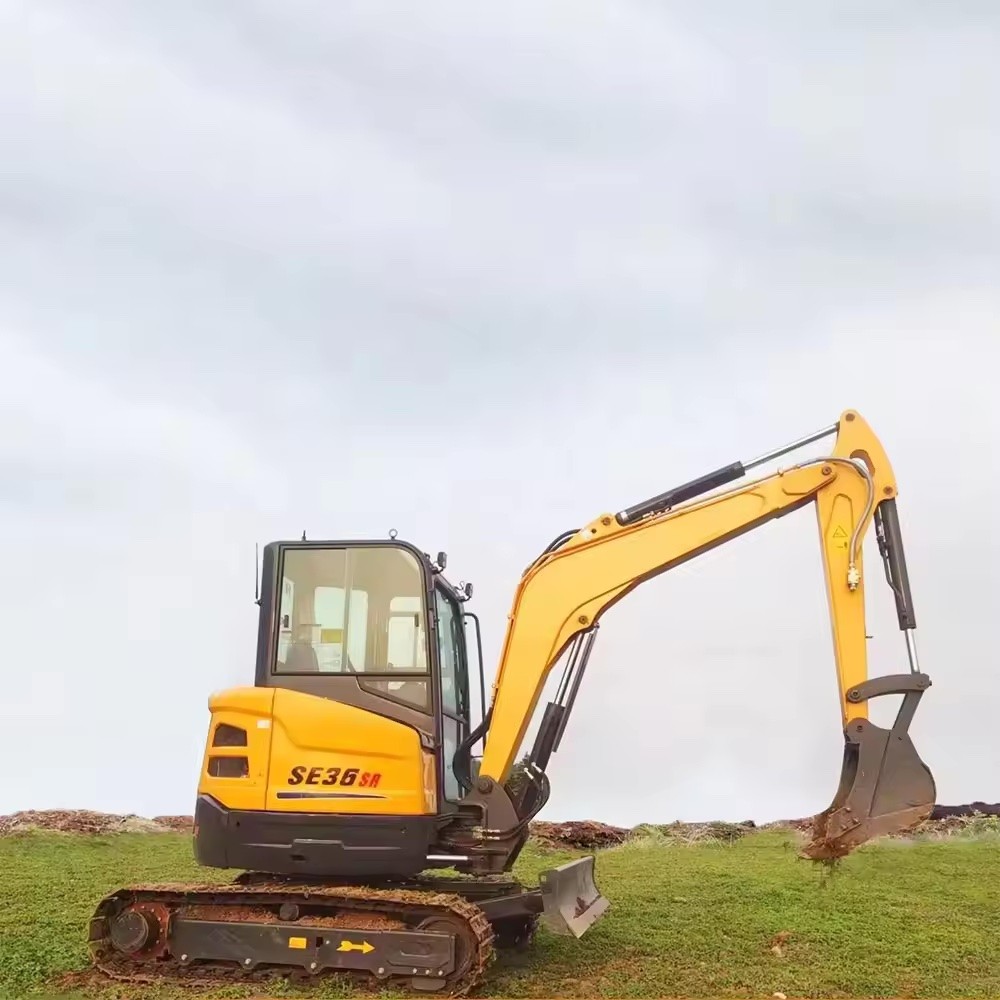

Shantui SE36SR 3.8Ton Excavator

• Price : $24,286.00
Engine:
Model: YANMAR 3TNV88F
Type/Number of cylinders: Three cylinder direct injection (3)
Emission: EPA Tier 4 Final/Europe Stage V
Displacement: 100.2cu.in(1.642L)
Power output: 24.41hp(18.2kW/2200rpm)
Hydraulic System:
Type: Variable plunger pump
Max.  hydraulic flow: 25.6gal/min(96.8L/min)
Digging Force (ISO6015):
Bucket digging force: 6834lbf(30.4kN)
Arm digging force: 4092lbf(18.2kN)
Bucket:
Type: Backhoe bucket
Capacity: 0.16cuyd(0.12m³)
Width: 25.6in.(650mm)
Drive System:
Carrier roller qty: 1×2
Track roller qty: 24
Track shoes: 2x44
Travel speed: 1.5/2.7mph (2.4/4.4 km/h)
Ground clearance: 11.6in.(295mm)
Grade ability: ≤30°
Swing System:
Swing speed: 0 - 9r/min
Refilling Capacities & Lubrications:
Fuel tank: 13.2gal(50L)
Cooling system: 1.85gal(7L)
Engine oil: 1.8gal(6.7L)
Hydraulic oil tank: 10.6gal(40L)
System Capacity: 10.6gal(40L)
Operating Weight and Ground Pressure:
Shoe width: 11.8in.(300mm)
Ground pressure: 4.64psi(32kPa)
Operating weight: 8378lbs(3800kg)
Working Range:
Max. digging height: 193.3in.(4910mm)
Max. dumping height: 139.6in.(3545mm)
Max. digging depth: 121.1in.(3075mm)
Max.  vertical digging depth: 104.9in.(2640mm)
Max. Depth cut for 2500mm Level Bottom:--
Max. digging distance: 218.5in.(5500mm)
Max. digging radius at ground level: 211.6in.(5345mm)
Maximum Dozer Lift Height: 14.8in.(375mm)
Maximum Dozer Dig Depth: 14.6in.(370mm)
Dimensions:
Overall length: 192.1in.(4880mm)
Ground contact length (Transportation): 132.3in.(3360mm)
Overall height (to top of boom): 74in.(1880mm)
Overall width: 68.5in.(1740mm)
Overall height (to top of cab): 100.4in.(2550mm)
Counter weight ground clearance: 23.4in.(595mm)
Ground clearance: 11.6in.(295mm)
Tail swing radius: 33.9in.(860mm)
Crawler wheel base: 65.8in.(1670mm)
Track length: 84.8in.(2155mm)
Track gauge: 56.7in.(1440mm)
Track width: 68.5in.(1740mm)
Shoe width: 11.8in.(300mm)
Bonnet height: 61.02in.(1550mm)
Revolving frame width: 61.02in.(1550mm)
Distance from swivel center to tail: 33.9in.(860mm).
