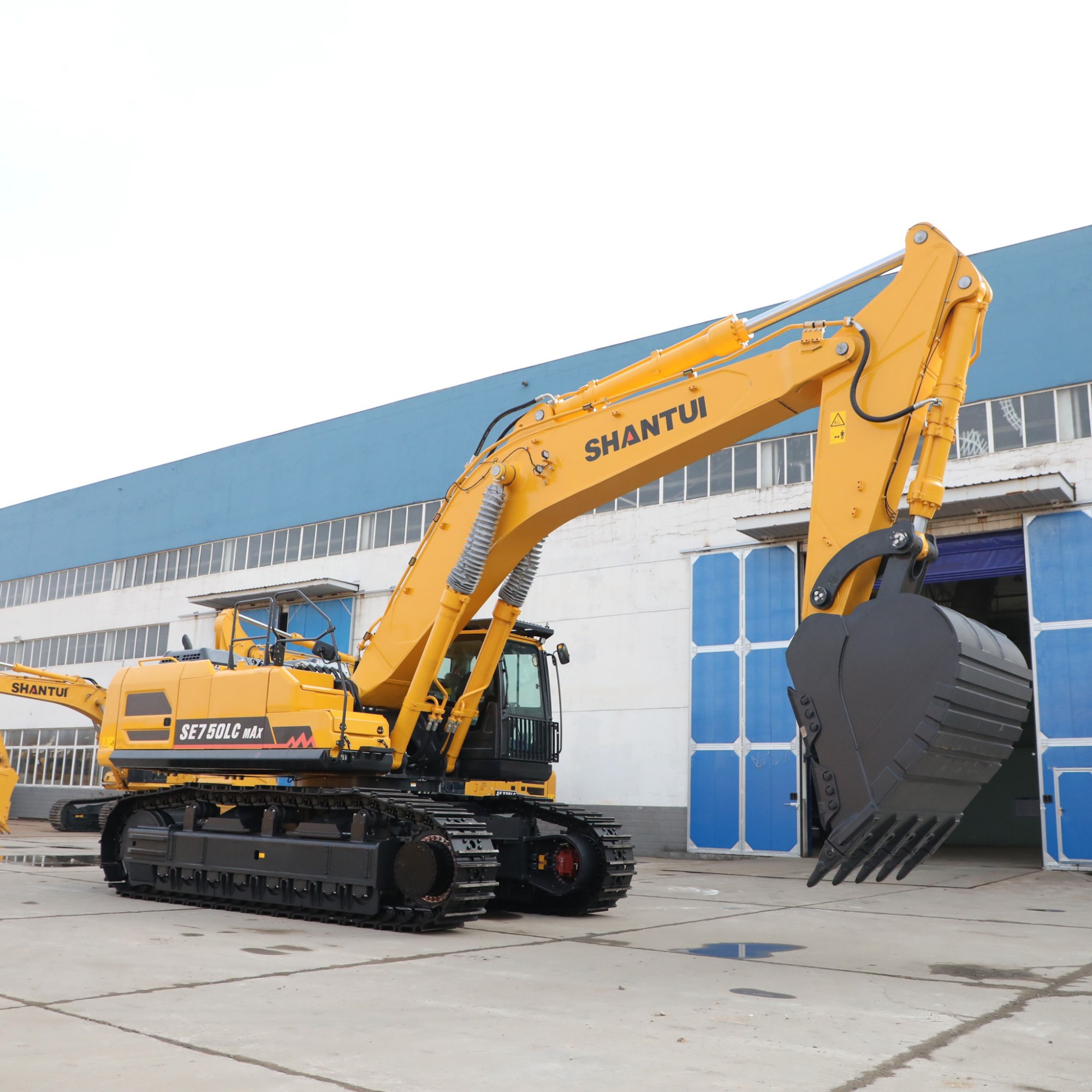

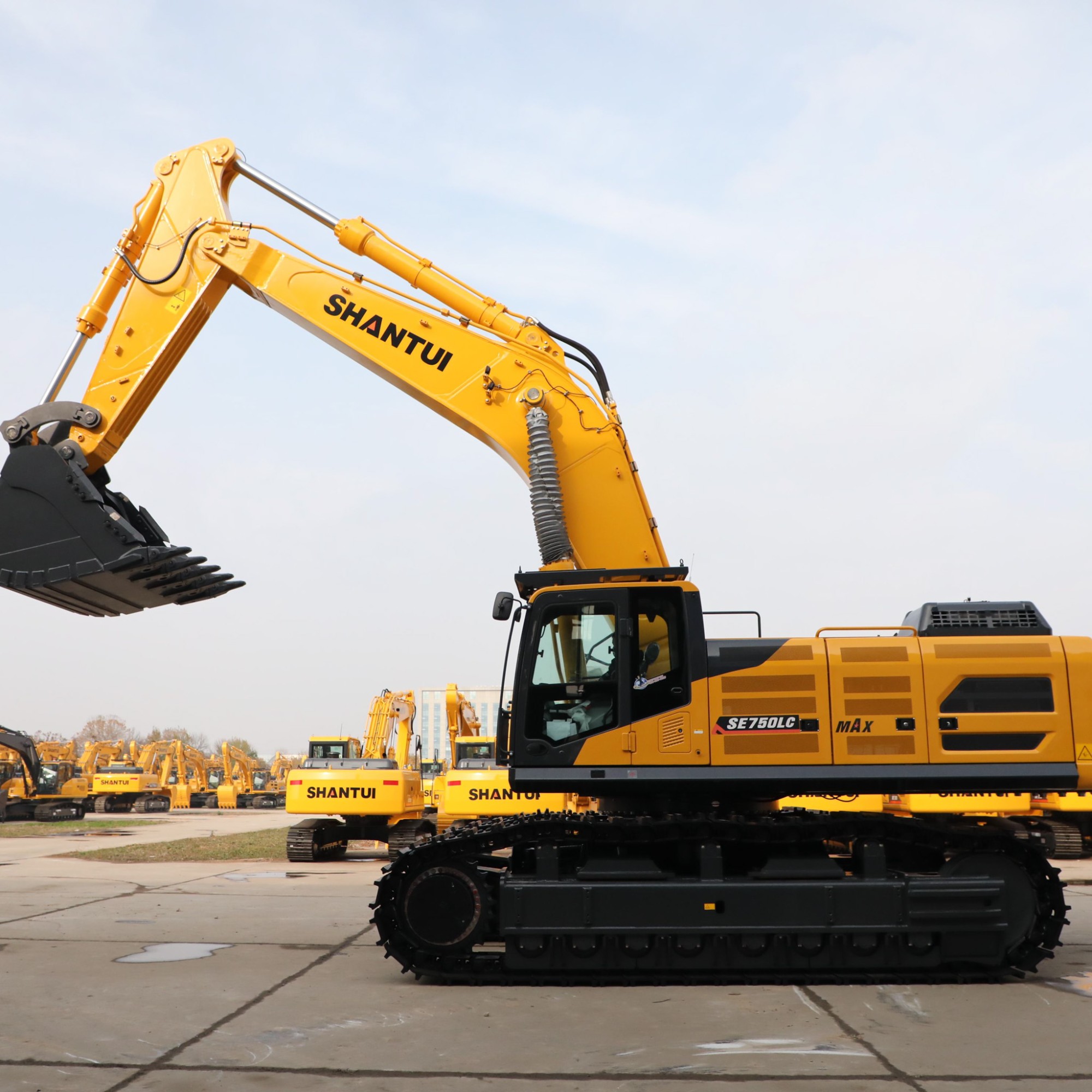

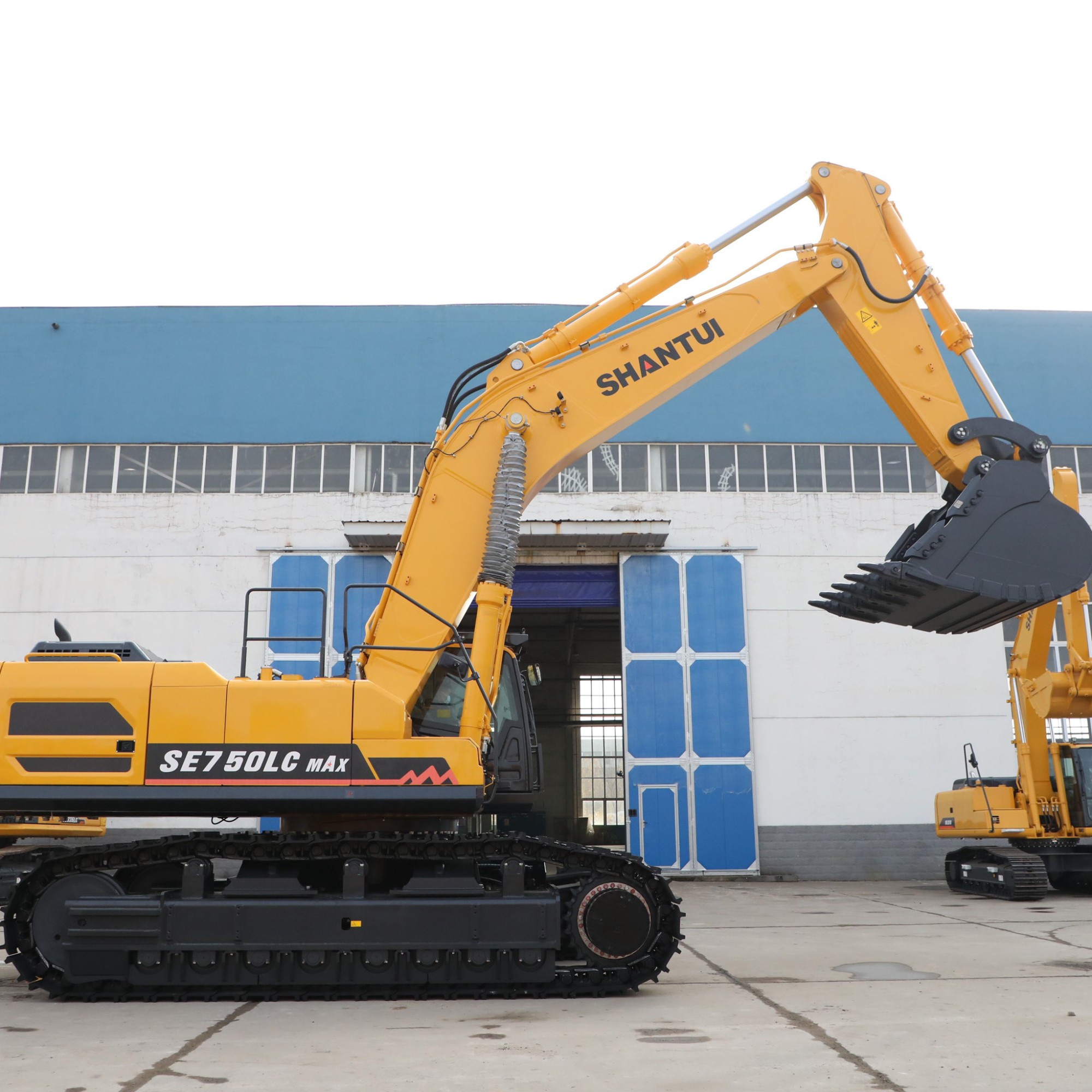

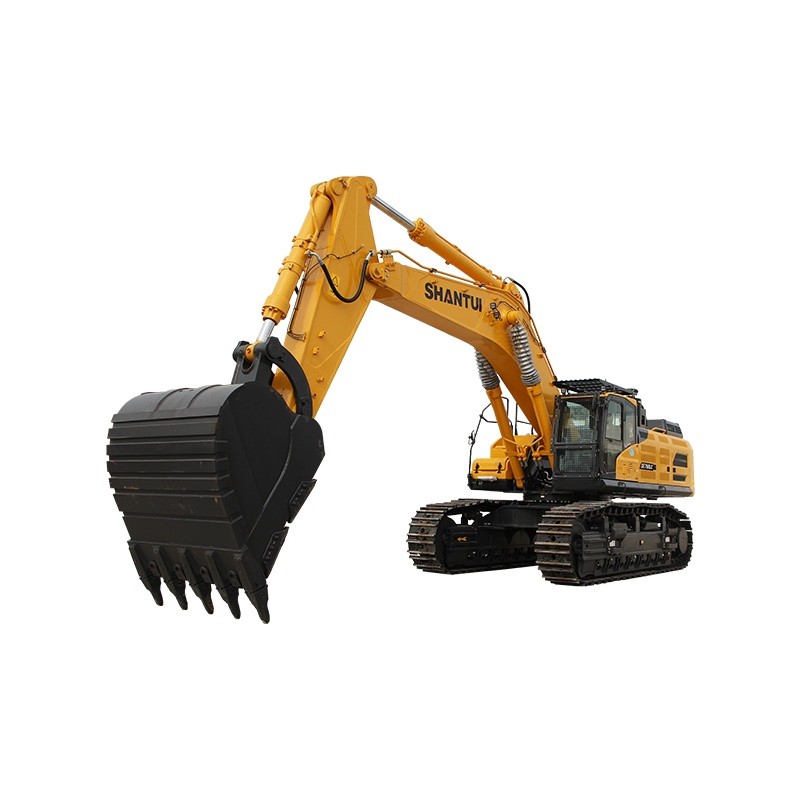

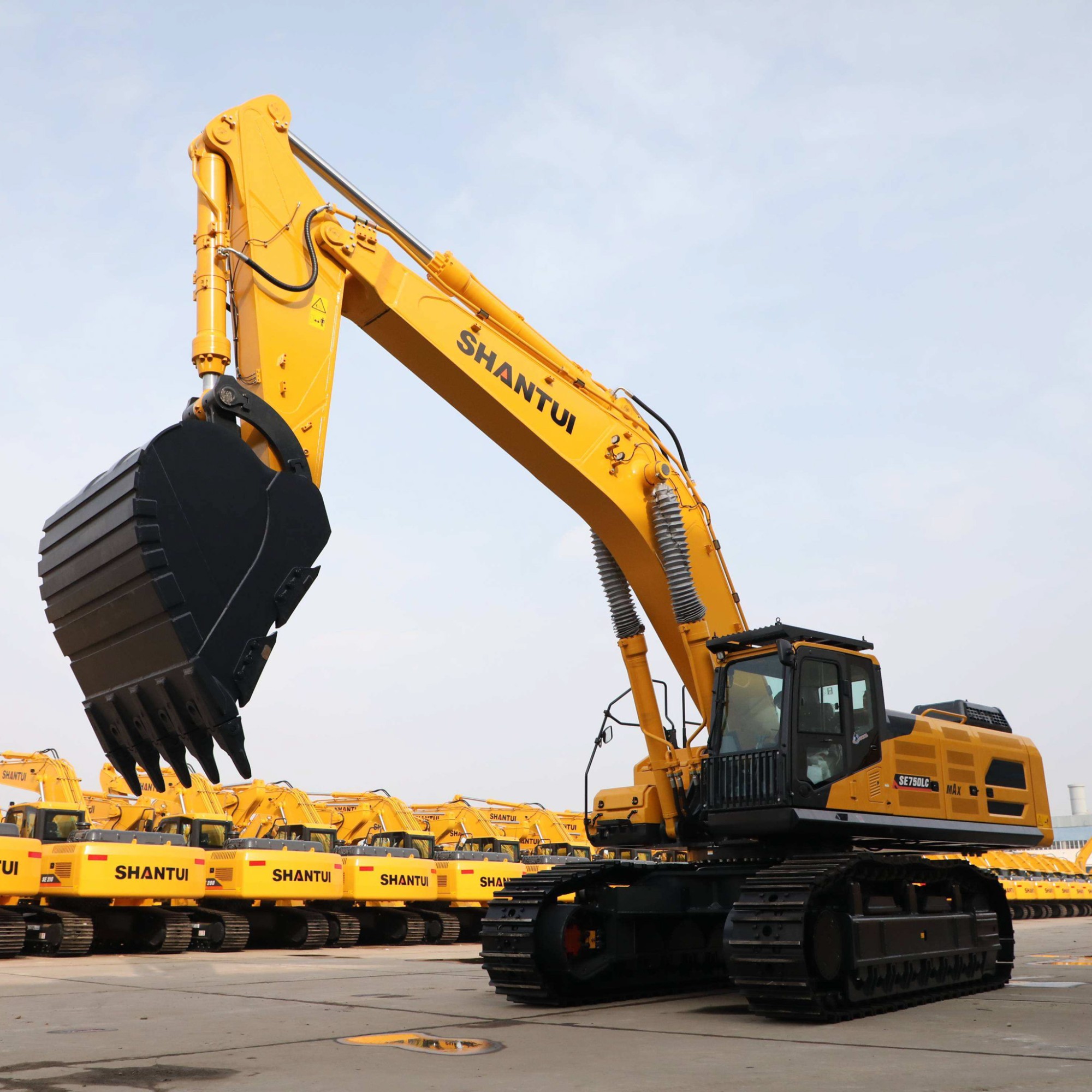

Shantui SE750LC 72ton excavator

• Price : $414,286.00
Dimension Information
Total length: 12260mm.
Ground contact length (during transportation): 7600mm.
Total height (to top of boom): 4740mm.
Total width: 4310/3680mm.
Total height (to top of cab): 3705mm.
Ground clearance of counterweight: 1550mm.
Minimum ground clearance: 895mm.
Rear swing radius: 4145mm.
Track length: 5960mm.
Track gauge: 3440/2810mm.
Track width: 4090mm.
Track plate width: 650mm.
Turntable width: 3505mm.
Distance from slewing center to rear end: 4055mm.
Operation Range Information
Maximum digging height: 11070 mm.
Maximum unloading height: 7235 mm.
Maximum digging depth: 6835 mm.
Maximum vertical digging depth: 5250 mm.
Maximum digging distance: 11530 mm.
Maximum digging distance on ground level: 11240 mm.
Minimum slewing radius of working device: 4950 mm.
Engine Information
Model: Isuzu 6WG1.
Form: Direct injection / 6 cylinders, 4 strokes / Turbocharged intercooling / Water cooling.
Displacement: 15.681L.
Rated power: 382kW/1800rpm.
Hydraulic System Information
Form: Variable piston pump.
Rated working flow: 2x504L/min.
Excavating Force Information
Bucket arm excavating force: 350kN.
Bucket excavating force: 420kN.
Traveling System Information
Traveling speed: 3.2/4.9km/h.
Traction force: 475kN.
Climbing ability: 70% (35°).
Slewing System Information
Maximum slewing speed: 7r/min.
Brake type: Pressure release, mechanical brake.
Operating Weight and Ground Pressure Information
Operating weight: 72500kg.
Ground pressure: 105kPa.
Bucket Information
Bucket capacity: 4.5 - 5.5m³.
Lubricant and Capacity Information
Fuel tank capacity: 900L.
Cooling system: 80L.
Engine oil volume: 52L.
Hydraulic tank/system capacity: 360/600L.
Optional Configuration Information
Boom: 6.6m.
Arm: 2.9m.
Buckets: 4.5/5/5.5m³.
