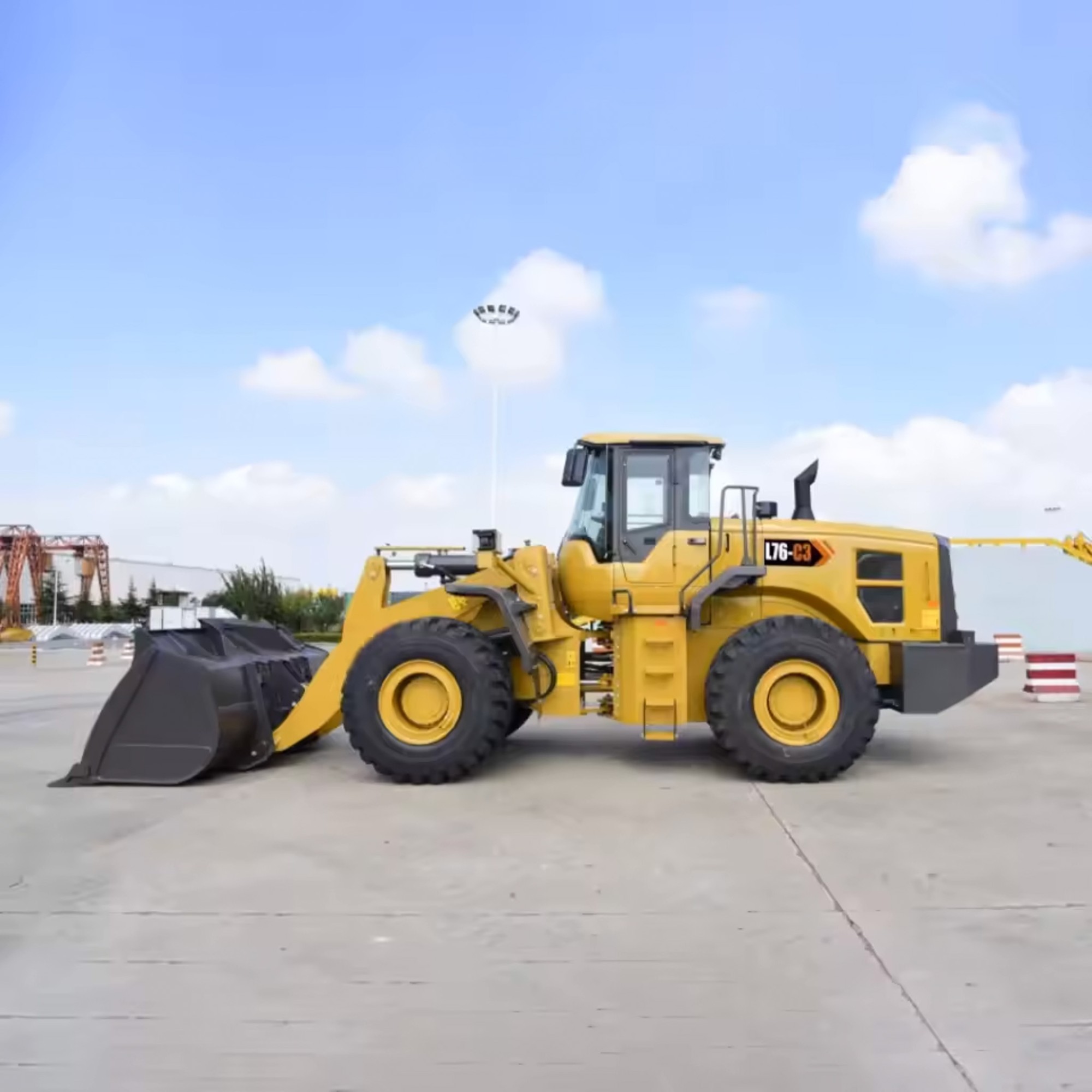

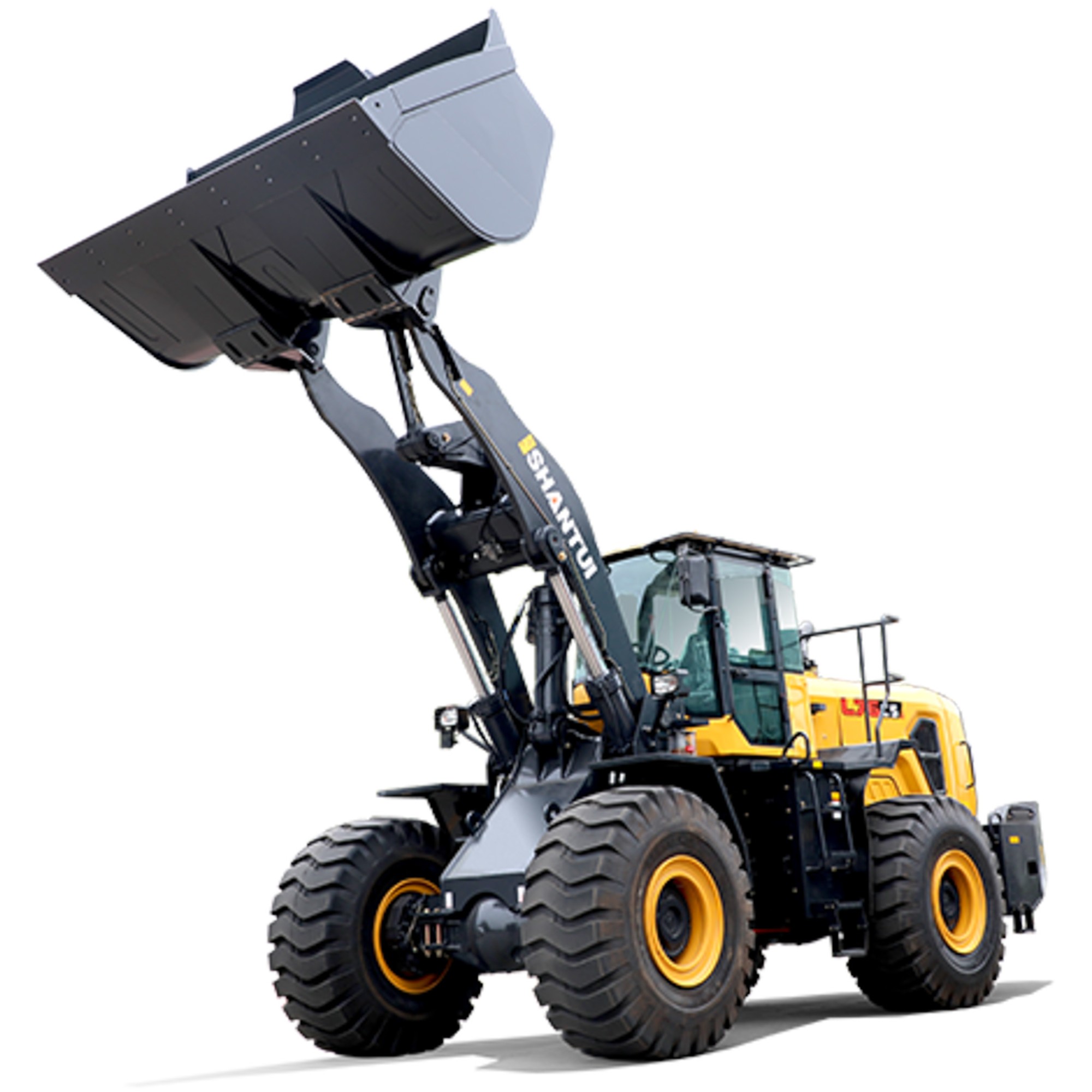

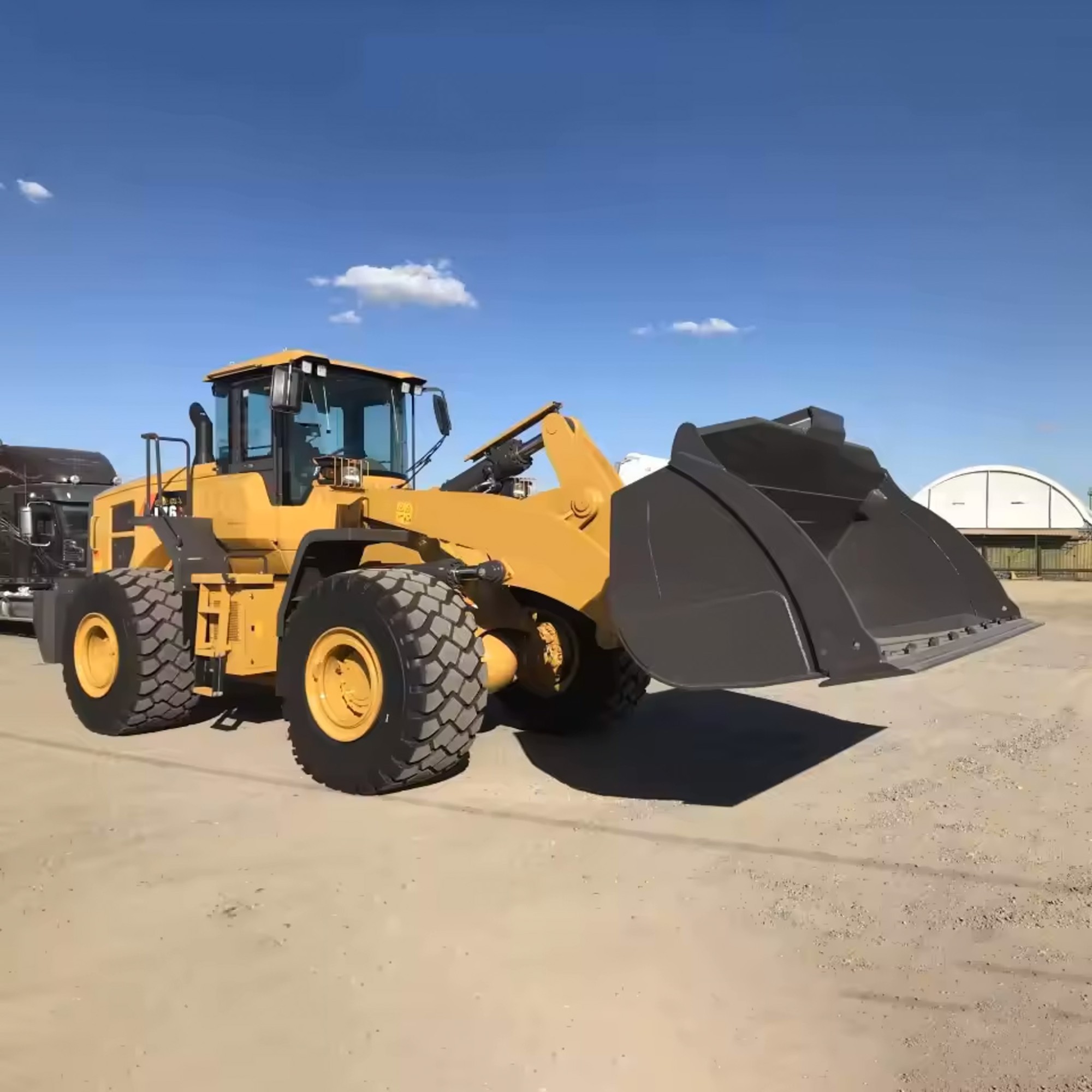

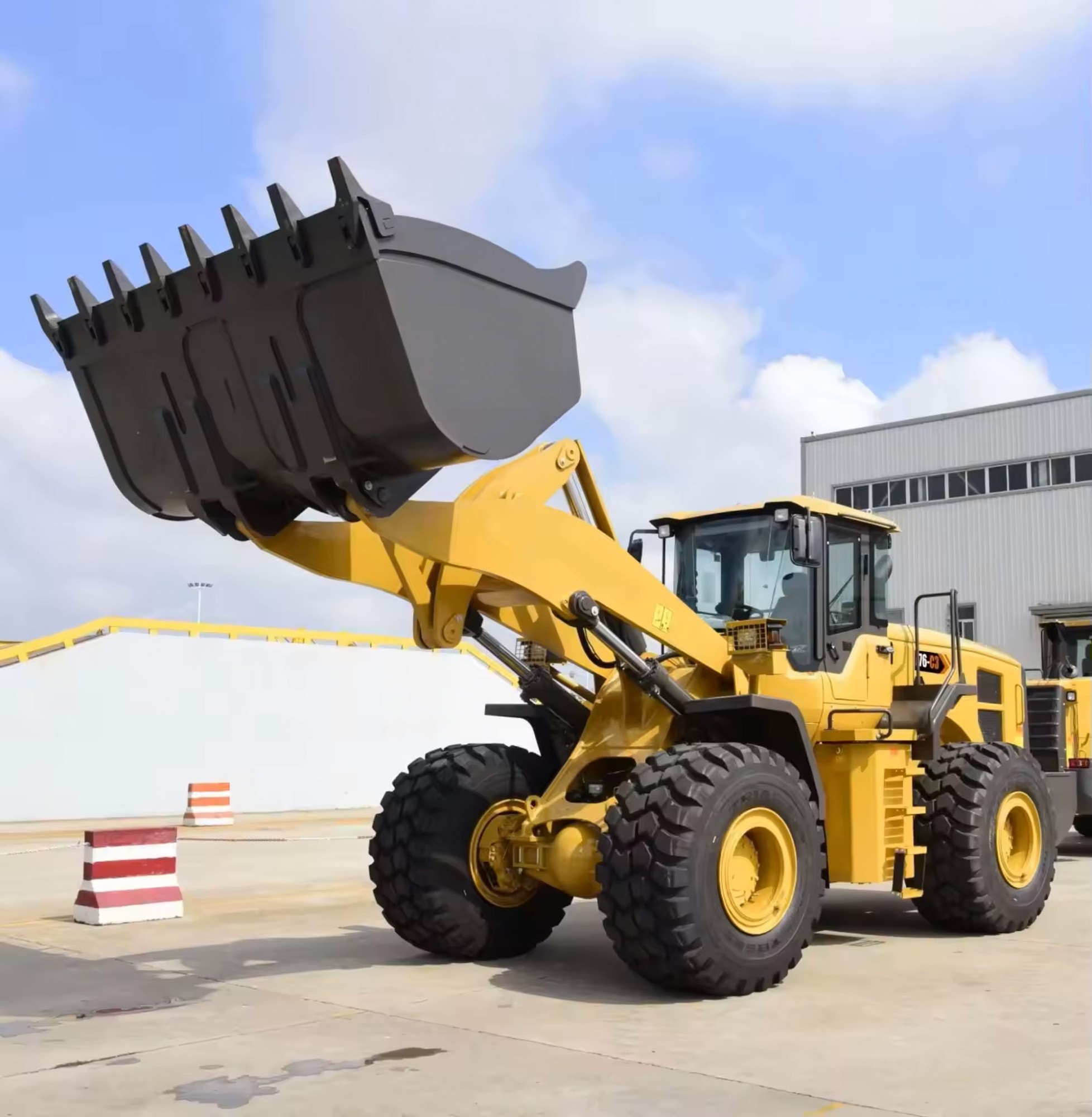

Shantui L76-C5 7Ton Wheel Loader

• Price : $77,143.00
Engine:
Emission Regulation: Tier 3/Stage ll
Make: Cummins
Model: QSL8.9-C280-30
Rated Power: 209kW @2200 rpm
Max Torque: 1250N·m
Displacement: 8.9L
Number of Cylinders: 6
Aspiration: Turbocharged
Loader Arm Performance:
Tipping Load - Full Turn: 160KN
Bucket Breakout Force: 215KN
Maximum Dump Angle at Full Height: 45°
Dump Clearance at Ful Height Discharge: 3540mm
Dump Reach at Full Height Discharge: 1220 mm
Maximum Hinge Pin Height: 4800mm
Maximum Digging Depth, Bucket Level: 100mm
Bucket Capacity: 5m³
Operating Weight: 24800kg
Transmission:
Transmission Type: Electronically controlled fixed shaft
Torque Converter: Single stage, three elements
Maximum Travel Speed, fwd: 39.4km/h
Maximum Travel Speed, rev: 25.8km/h
Number of Speeds, fwd: 4
Number of Speeds, rev: 3
Axles:
Axle Oscillation: ±12°
Steering:
Steering Configuration: Articulated
Steering System Pressure: 20 Mpa
Brakes:
Service Brake Type: Caliper disc brake
Service Brake Actuation: Air over Hydraulic
Parking Brake Type: Caliper brake
Parking Brake Actuation: Air brake
Tires:
Tire Size: 26.5-25
Hydraulic System:
Main Pump Type: Constant variable dual pump confluence
Main Relief Pressure: 25Mpa
Raise time: 5.5S
Total Cycle Time: 10.1S
Service Capacity:
Fuel Tank: 365L
Hydraulic oil Tank: 185L
Engine Oil: 21L
Axles, each: 43L
Transmission: 46L
Antifreeze: 80L
Dimensions:
Length: 9445mm
Width: 3236mm
Height: 3670 mm
Wheelbase: 3550mm
Wheel Tread: 2380mm
Ground Clearance: 480mm
Turn Angle, Either Side: 38°
Turning Radius, Outside of Tire: 6345mm
Turning Radius, Center of Tire: 6170 mm
Turning Radius, Bucket Carry: 7560mm.
