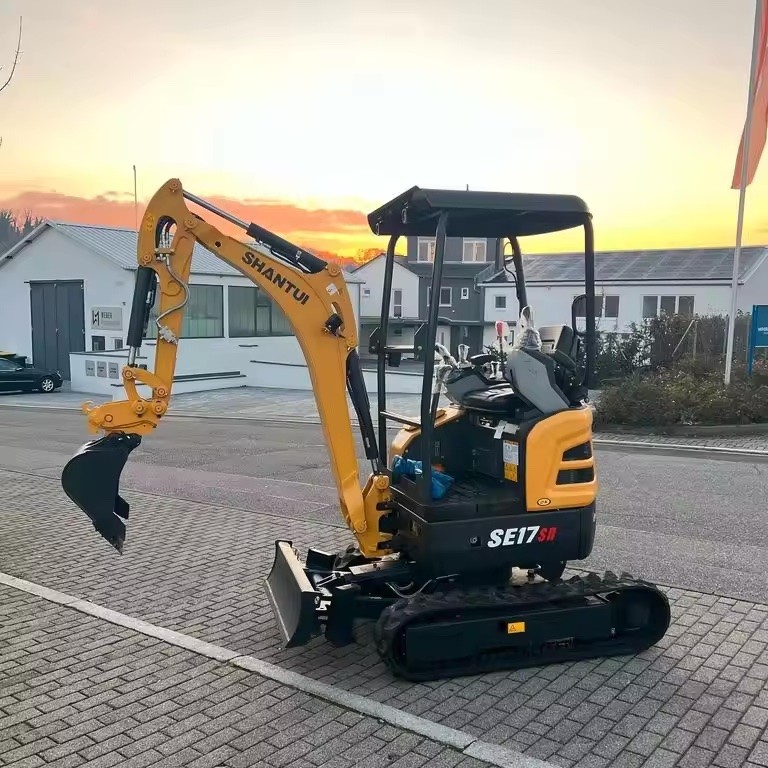

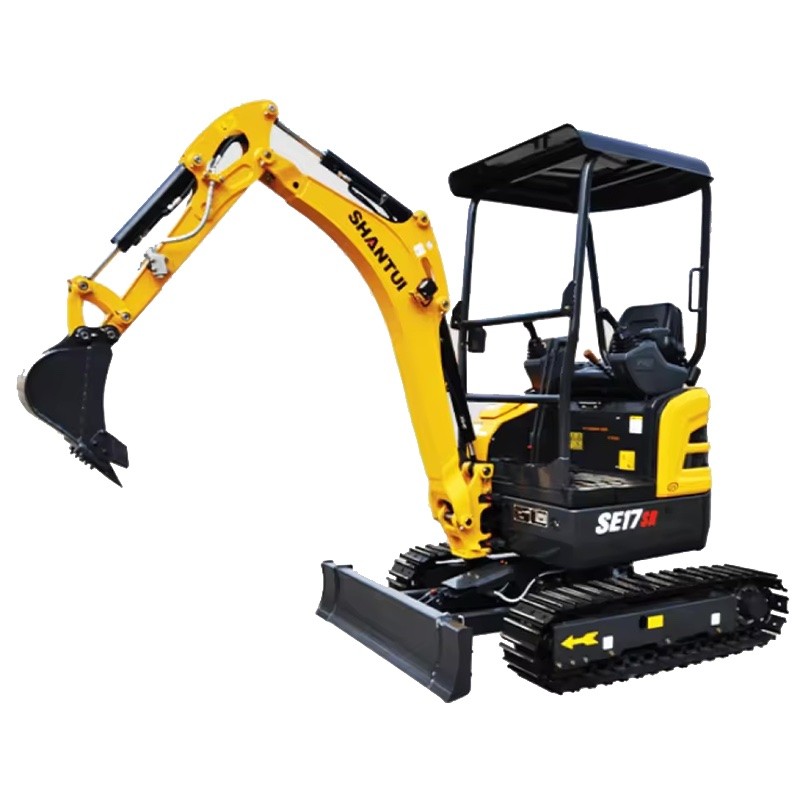

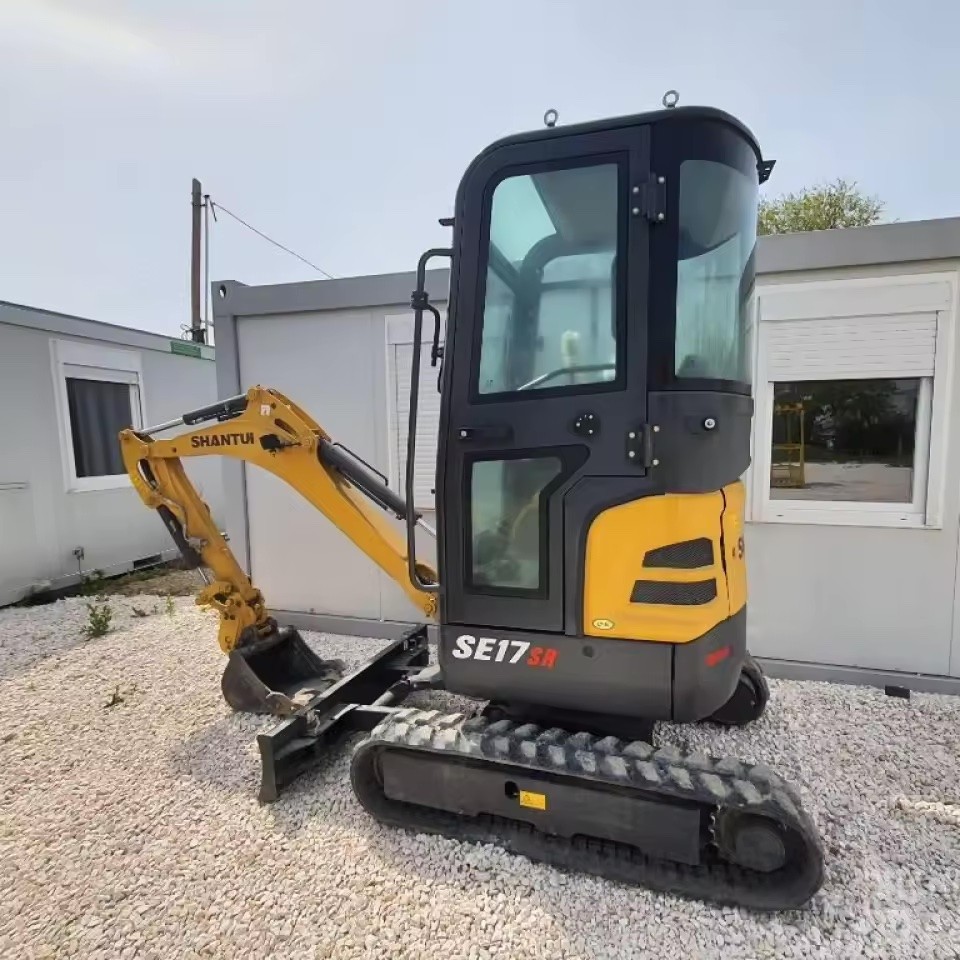

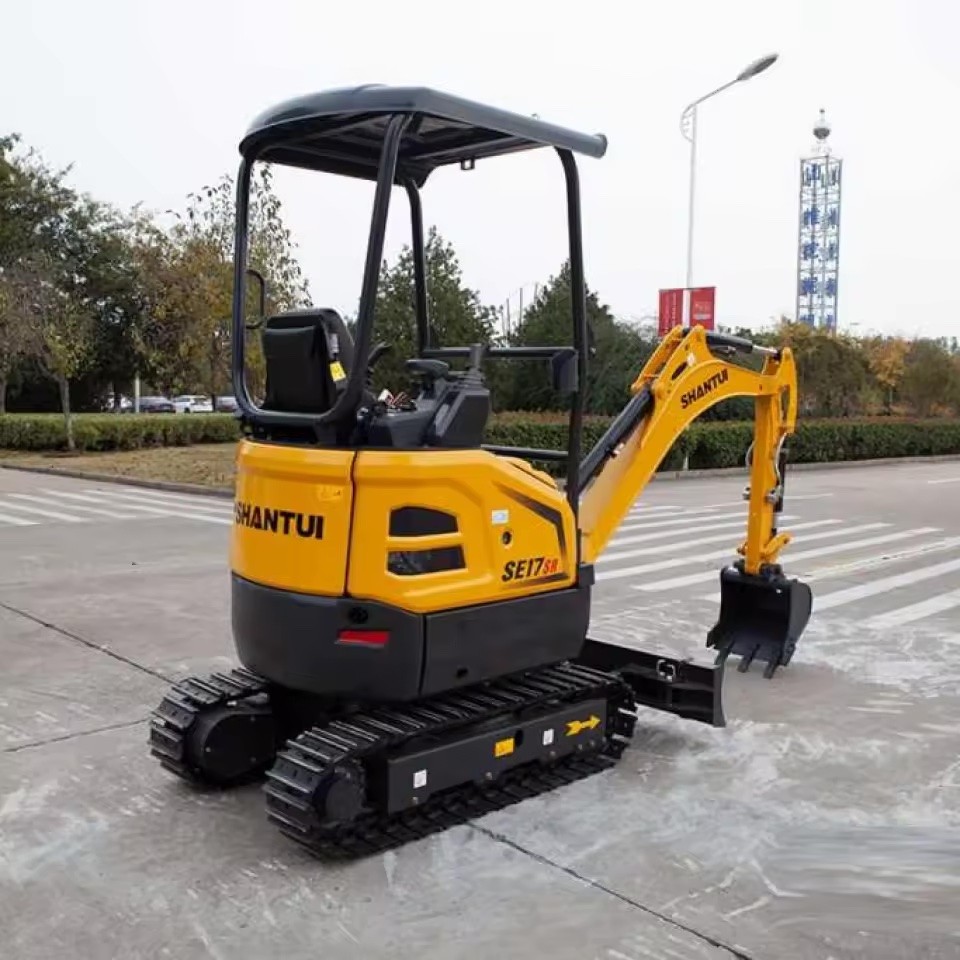

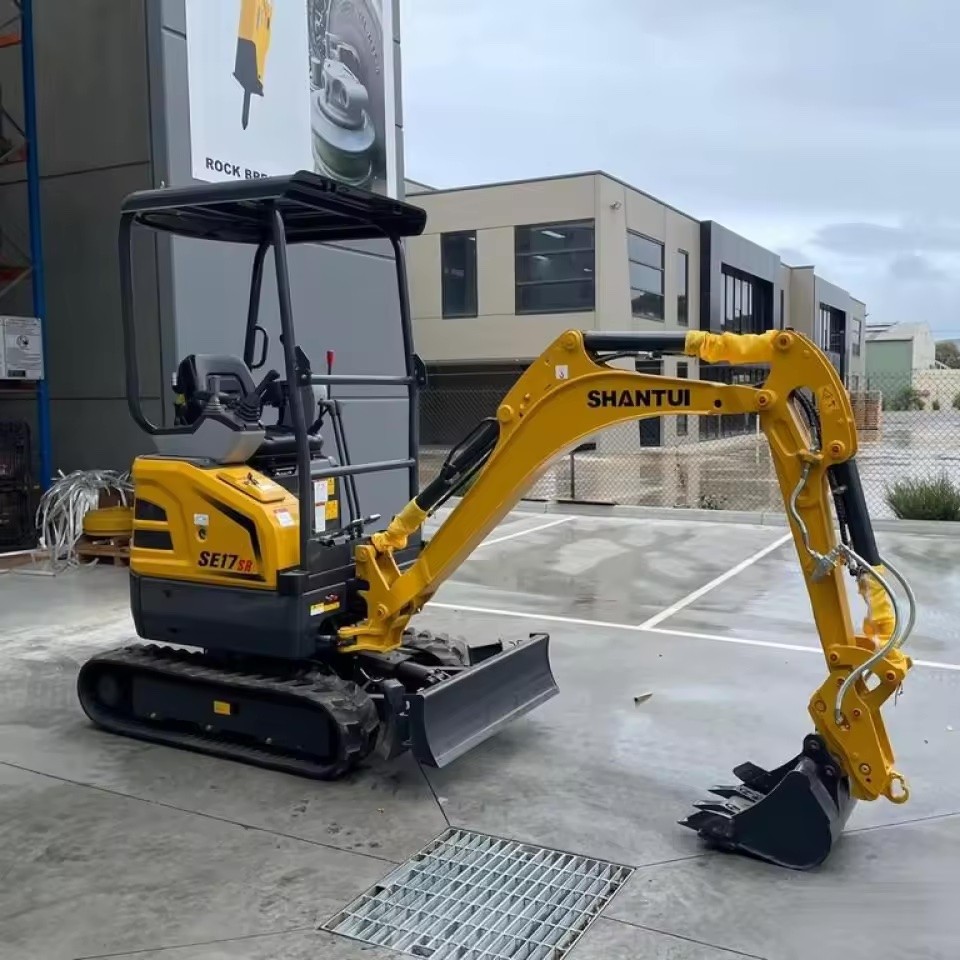

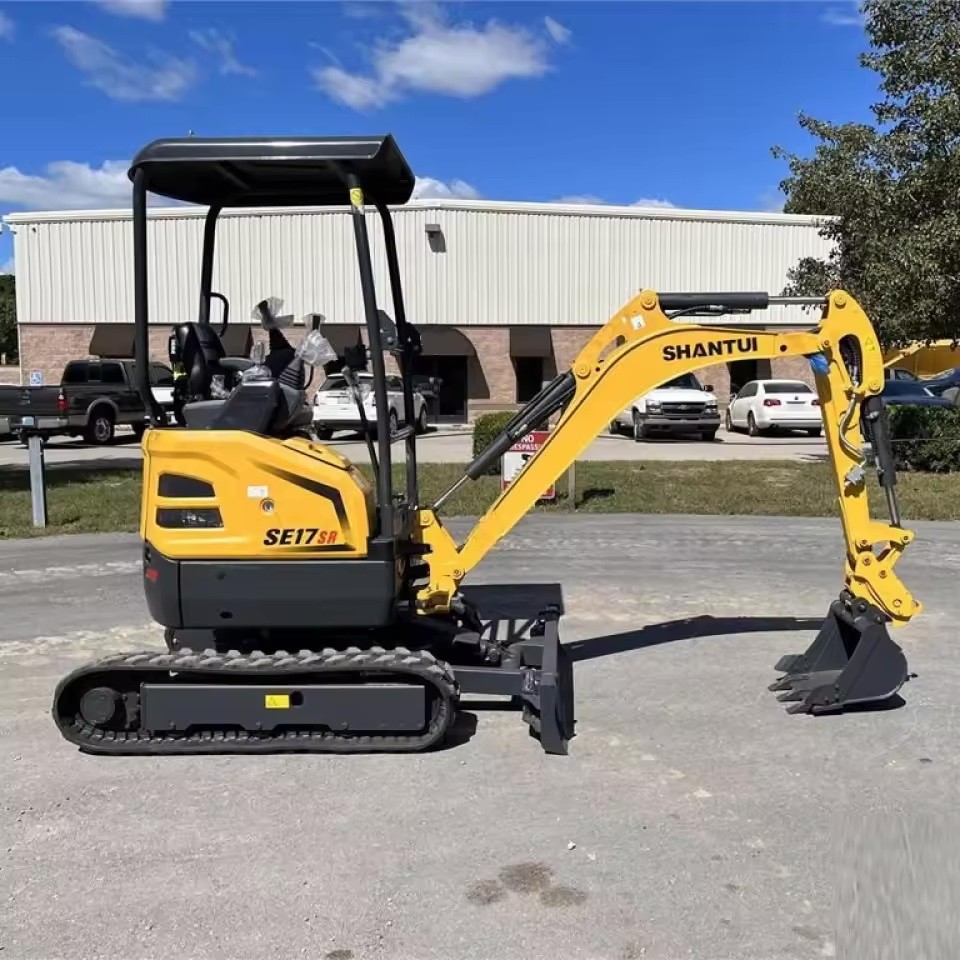

Shantui SE17SR 1.8Ton Excavator

• Price : $14,000.00
Engine:
Model: KUBOTA D902
Type: Vertical, water cool, 4-cycle
Number of cylinders: 3
Emission: EPA Tier 4 Final/Europe Stage V
Displacement: 0.898L
Power output: 11.8kW/2300rpm
Hydraulic System:
Type: Axial piston-variable displacement
Max.  hydraulic flow: 28L/min
Digging Force (ISO6015):
Bucket digging force: 16kN
Arm digging force: 9.5kN
Bucket:
Type: Backhoe bucket
Capacity: 0.04m³
Width: 450mm
Drive System:
Type: Cycloidal motor
Track roller: 2x3
Track shoes: 2x37
Travel speed: 2.2/4.3km/h
Max.  Drawbar pull: 18kN
Grade ability: 58%
Swing System:
Swing motor type: Plunger motor
Swing speed: 0 - 9.5r/min
Brake type: Pressure release mechanical braking
Refilling Capacities & Lubrications:
Fuel tank: 19L
Cooling system: 5L
Engine oil: 3.7L
Hydraulic oil tank: 20L
Operating Weight and Ground Pressure:
Shoe width: 230mm
Ground pressure: 29kPa
Operating weight: 1800kg
Dimensions:
Transport Length (arm lowered): 3570mm
Overall height (top of canopy): 2400mm
Undercarriage Width (Retracted): 990mm
Undercarriage Width (Extended): 1300mm
Undercarriage Length: 1587mm
Upperbody width (zero tail): 990mm
Working Range:
Max.  digging height: 3535mm
Max.  dumping height: 2445mm
Max.  digging depth: 2270mm
Max vertical digging depth: 1910mm
Max.  digging radius: 3910mm
Max.  digging radius, at ground level: 3845mm
Min. swing radius of work equipment: 1495mm
Min. tail swing radius: 650mm
Ground clearance of counterweight: 450mm
Maximum Dozer Lift Height: 280mm
Maximum Dozer Dig Depth: 190mm
Maximum Boom Offset (LH): 385mm
Maximum Boom Offset (RH): 510mm
Boom Swing Angle (LH&RH): 57°/61°.
