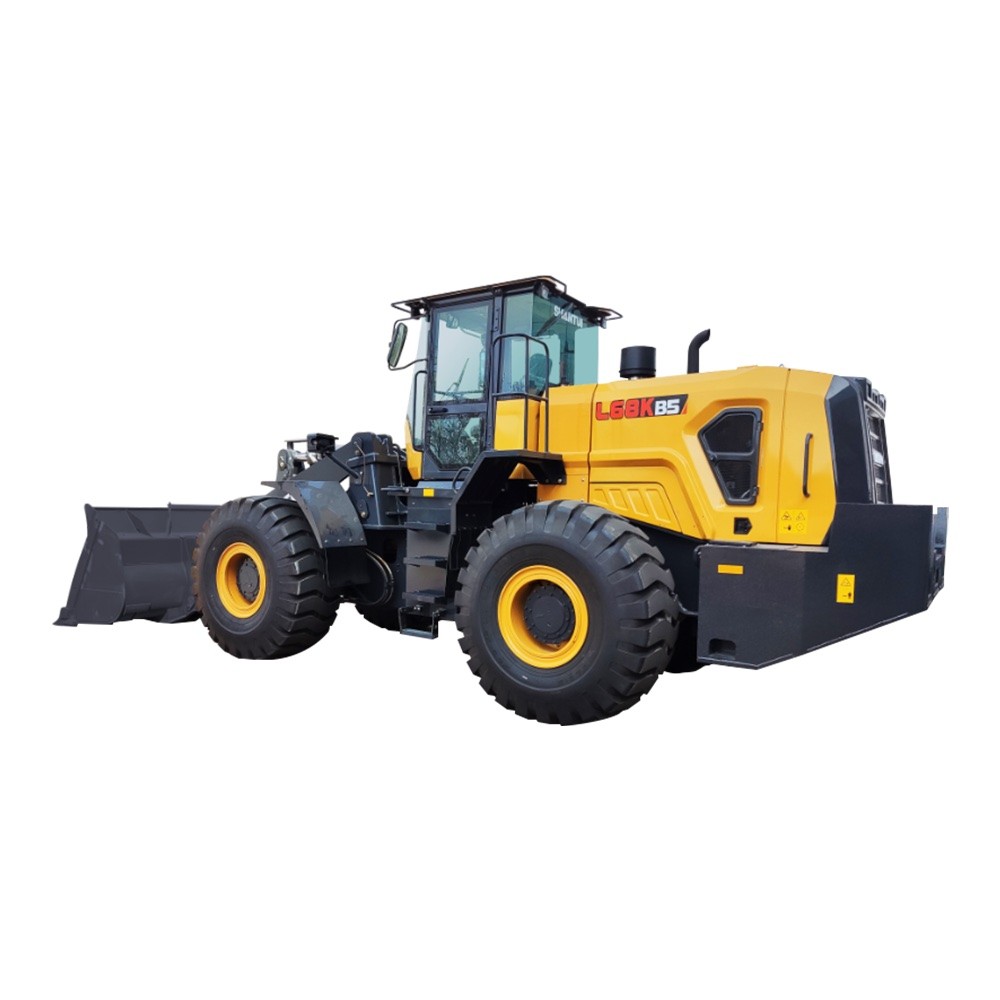

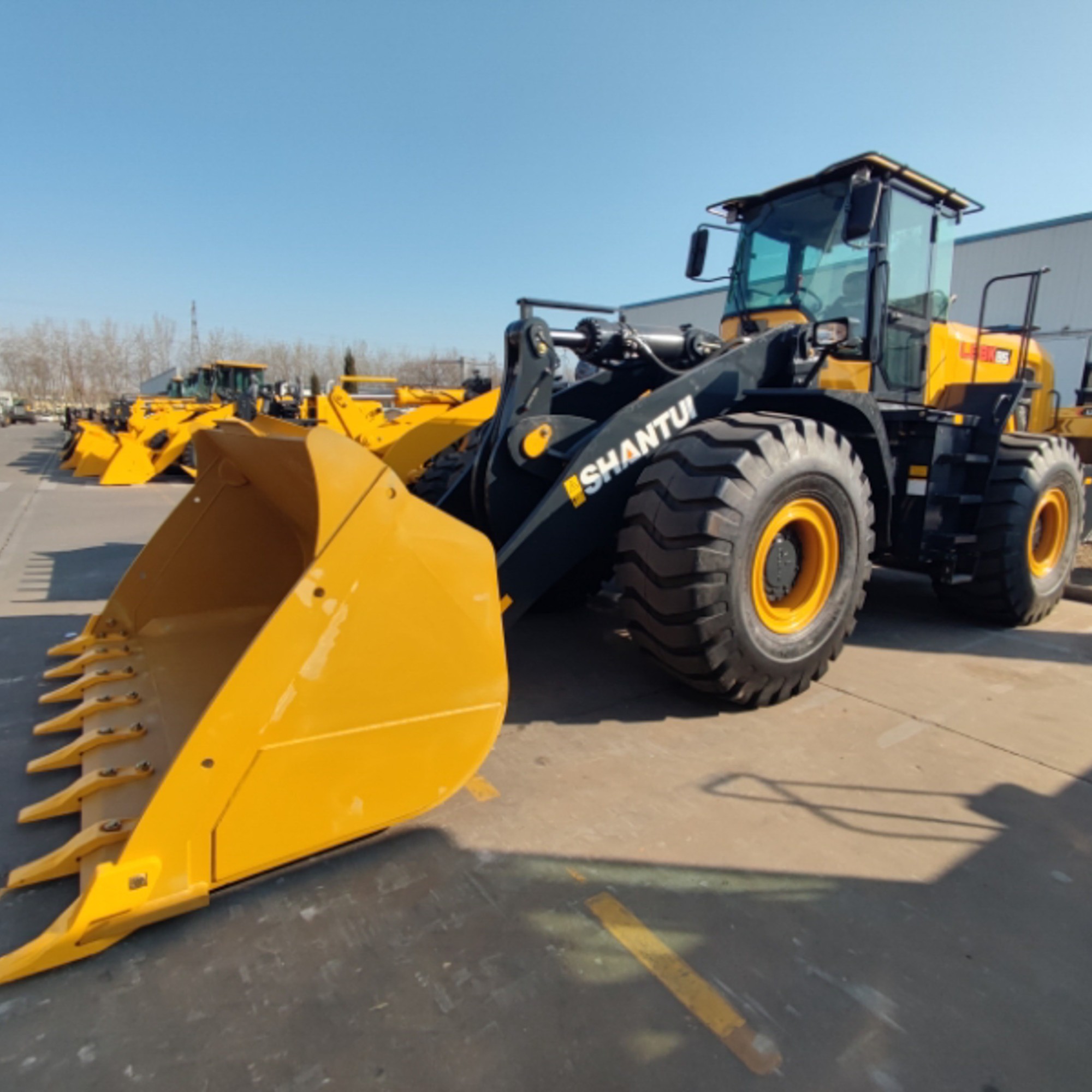

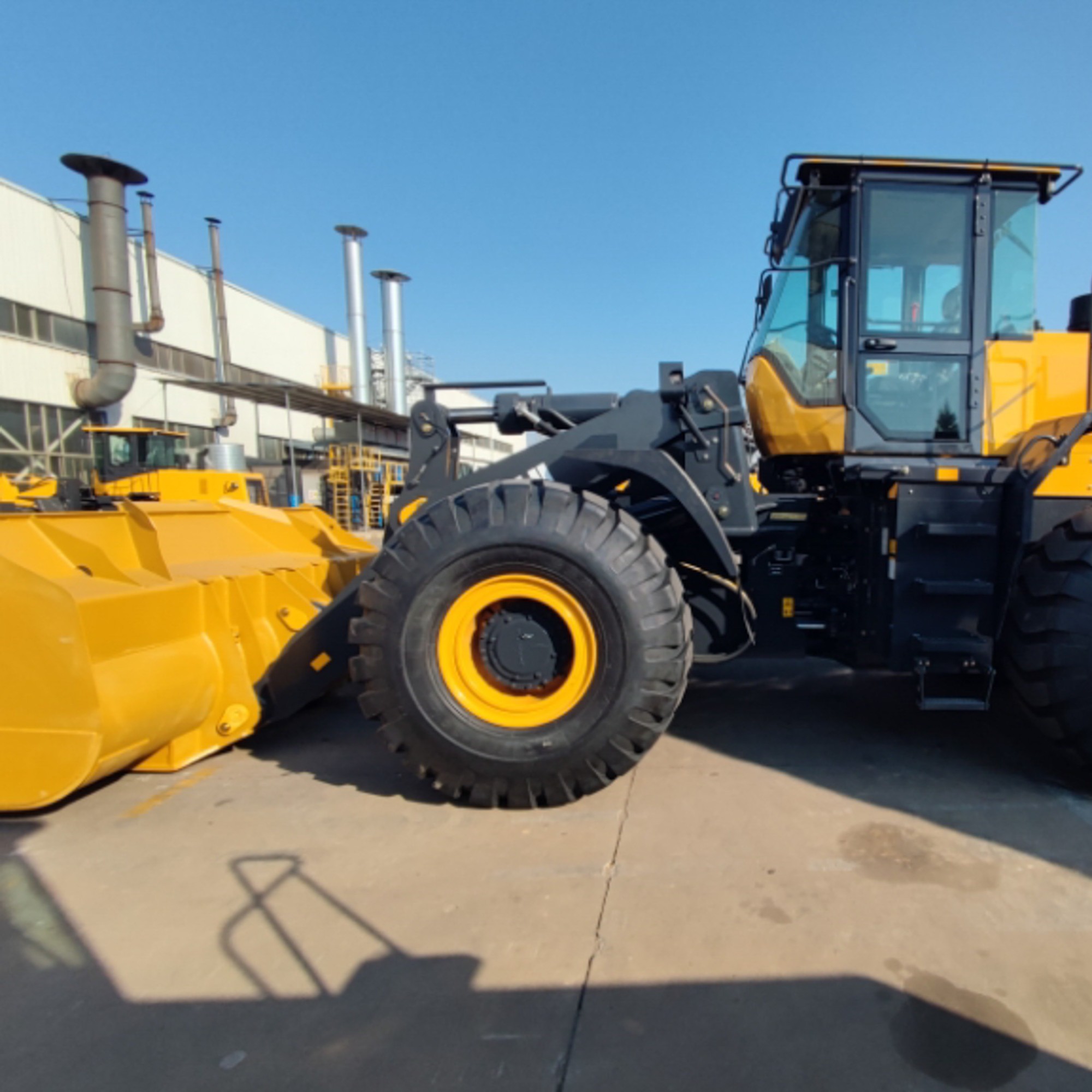

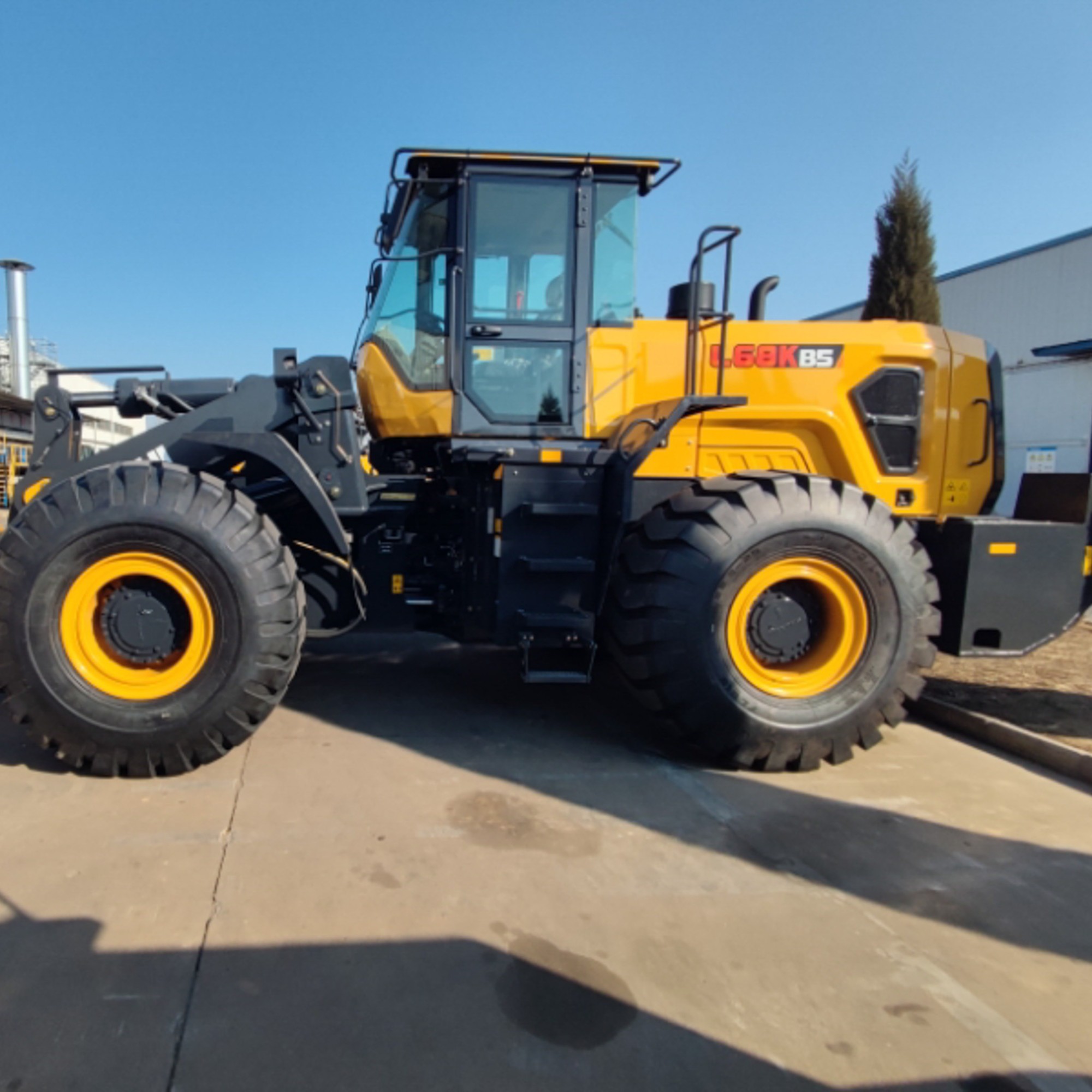

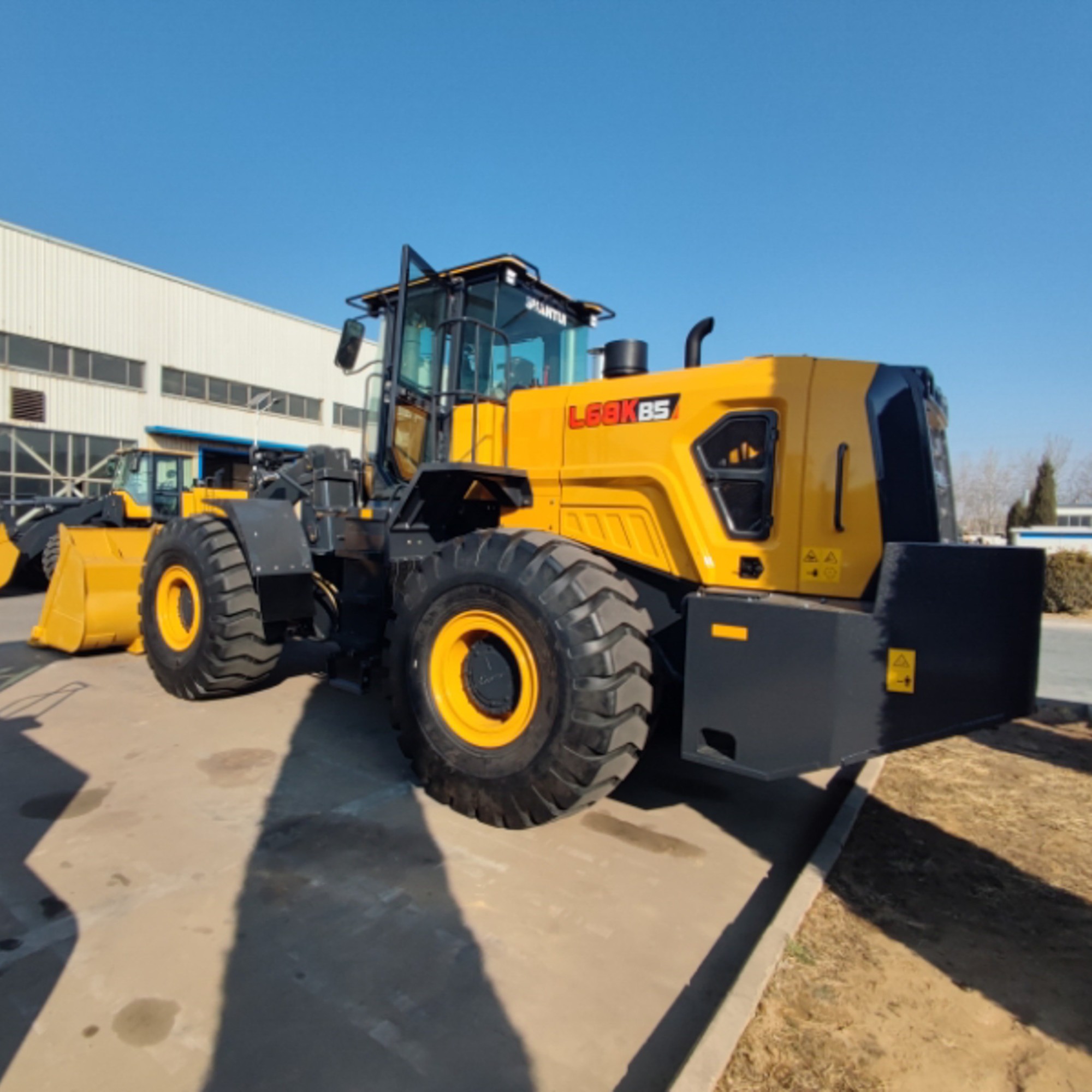

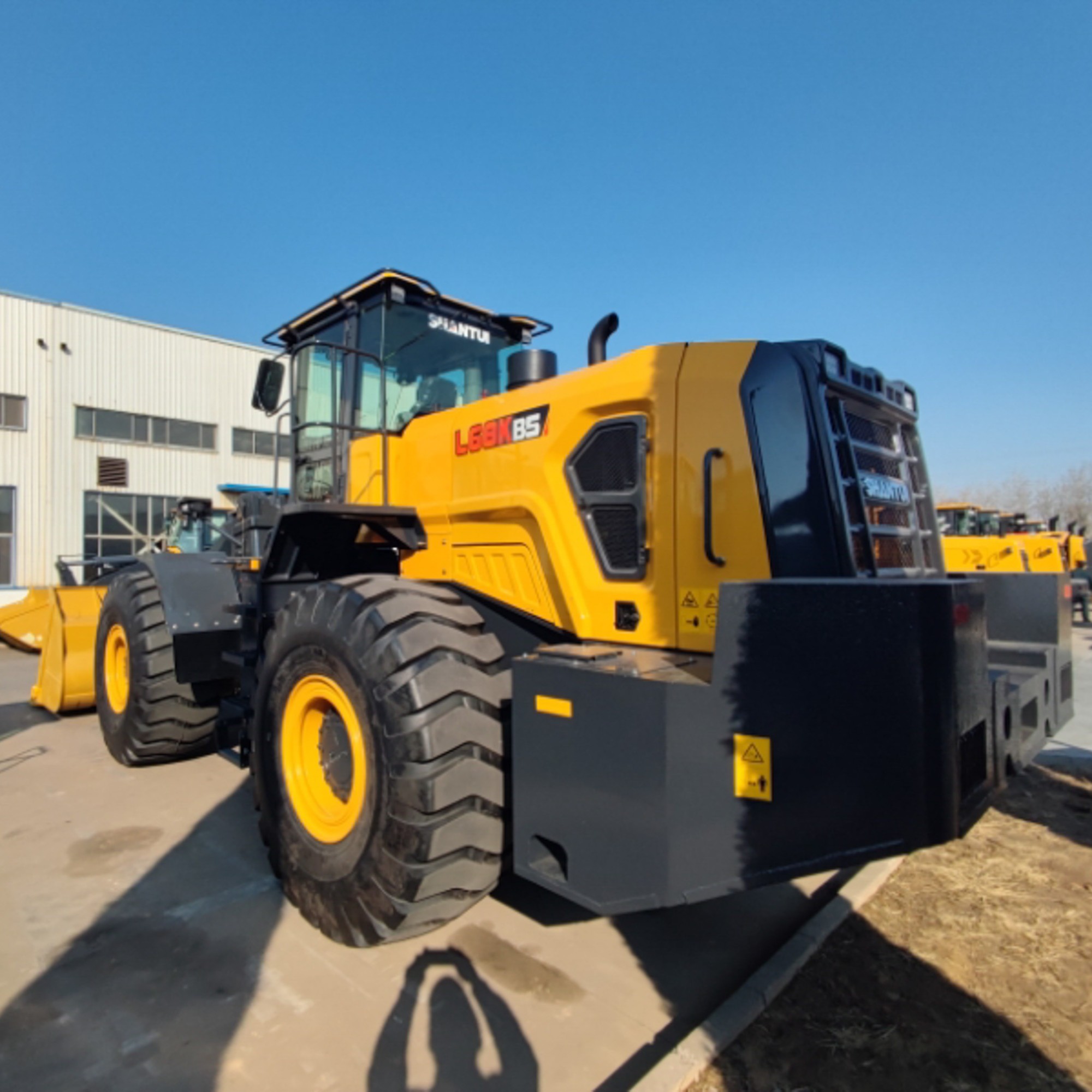

Shantui L68K-B5 6.5Ton Wheel Loader

• Price : $65,714.00
Engine:
Emission Regulation: Tier 2/Stage ll
Make: Weichai
Model: WD10G240E201
Rated Power: 178kW@2,200 rpm
Max Torque: 1000N·m
Displacement: 9.726L
Number of Cylinders: 6
Aspiration: Turbocharged
Loader Arm Performance:
Tipping Load - Full Turn: 137kN
Bucket Breakout Force: 205kN
Maximum Dump Angle at Full Height: 45°
Dump Clearance at Full Height Discharge: 3480mm
Dump Reach at Full Height Discharge: 1300mm
Maximum Hinge Pin Height: 4718 mm
Maximum Digging Depth, Bucket Level: 80 mm
Bucket Capacity: 4m³
Operating Weight: 22500kg
Transmission:
Transmission Type: Planetary, power shift
Torque Converter: Single stage, four elements
Maximum Travel Speed, fwd: 37km/h
Maximum Travel Speed, rev: 16km/h
Number of Speeds, fwd: 2
Number of Speeds, rev: 1
Axles:
Axle Oscillation: ±12°
Steering:
Steering Configuration: Articulated
Steering System Pressure: 18 Mpa
Brakes:
Service Brake Type: Caliper disc brake
Service Brake Actuation: Air over Hydraulic
Parking Brake Type: Air brake
Parking Brake Actuation: Mechanical
Tires:
Tire Size: 26.5-25
Hydraulic System:
Main Pump Type: Gear
Main Relief Pressure: 21 Mpa
Raise time: 5.3S
Total Cycle Time: 9.97S
Service Capacity:
Fuel Tank: 330L
Hydraulic oil Tank: 255L
Engine Oil: 21L
Axles, each: 41LX2
Transmission: 45L
Antifreeze: 80L
Dimensions:
Length: 9320mm
Width: 3080mm
Height: 3570mm
Wheelbase: 3500 mm
Wheel Tread: 2250mm
Ground Clearance: 510mm
Turn Angle, Either Side: 35°
Turning Radius, Outside of Tire: 6955mm
Turning Radius, Center of Tire: 6675mm
Turning Radius, Bucket Carry: 7686mm.
