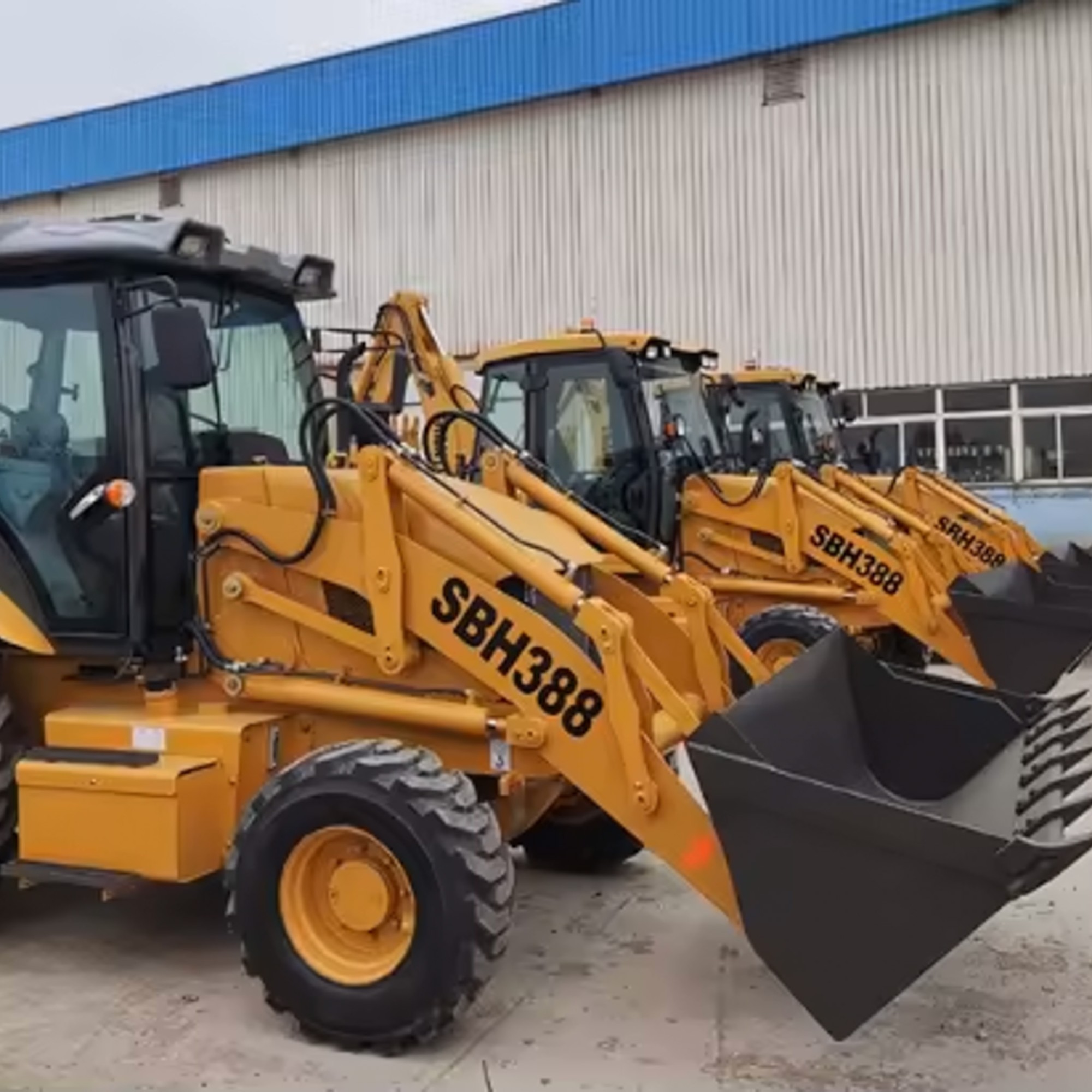

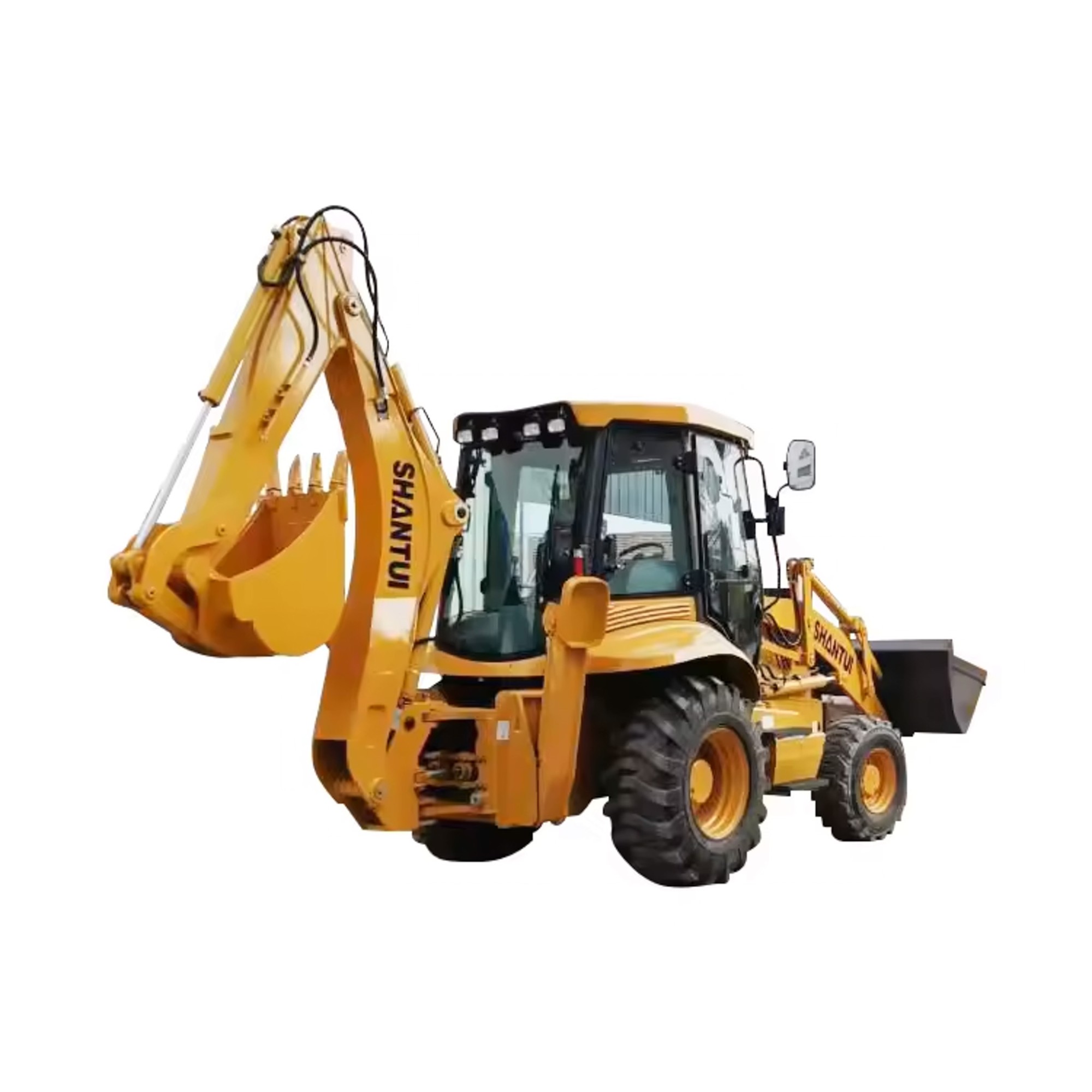

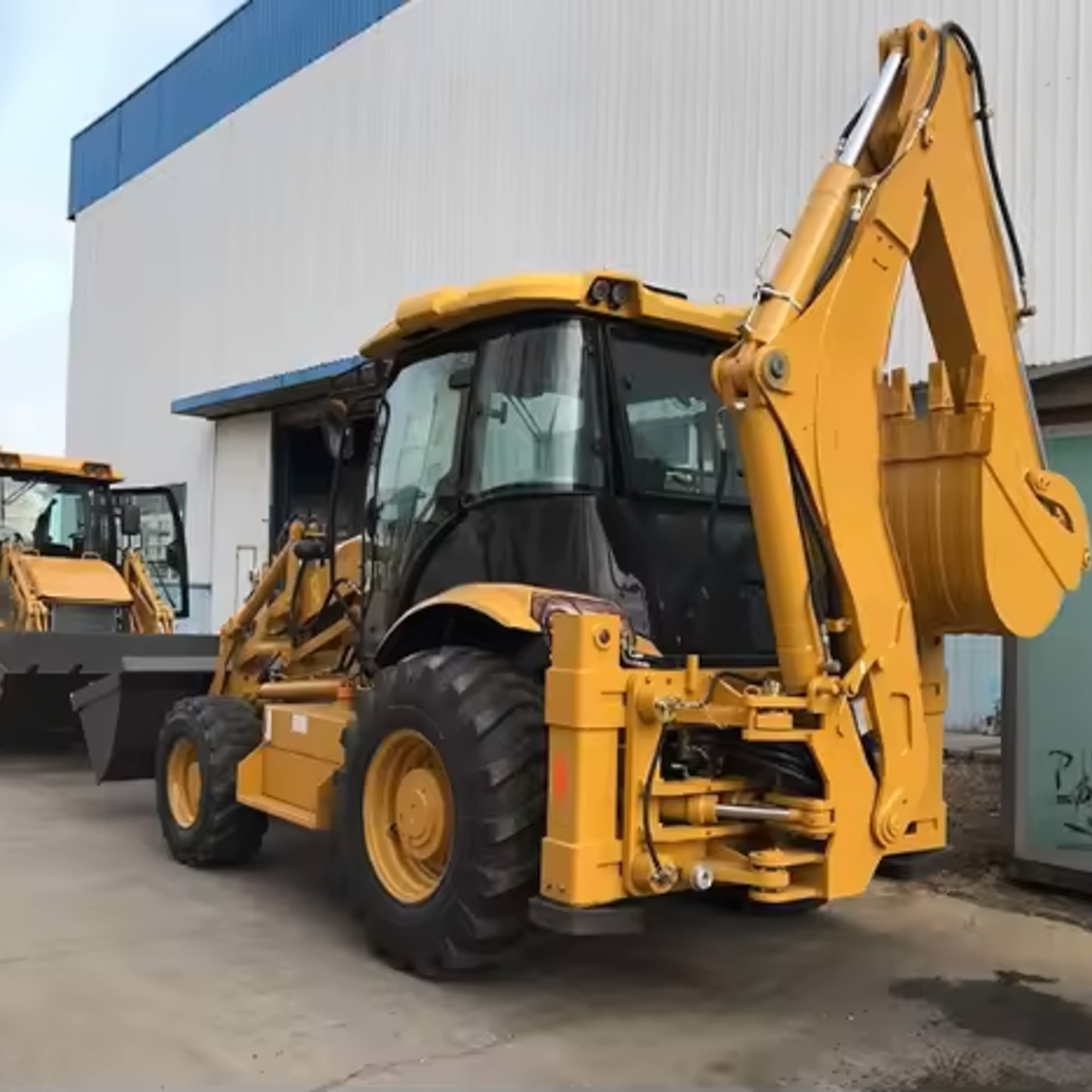

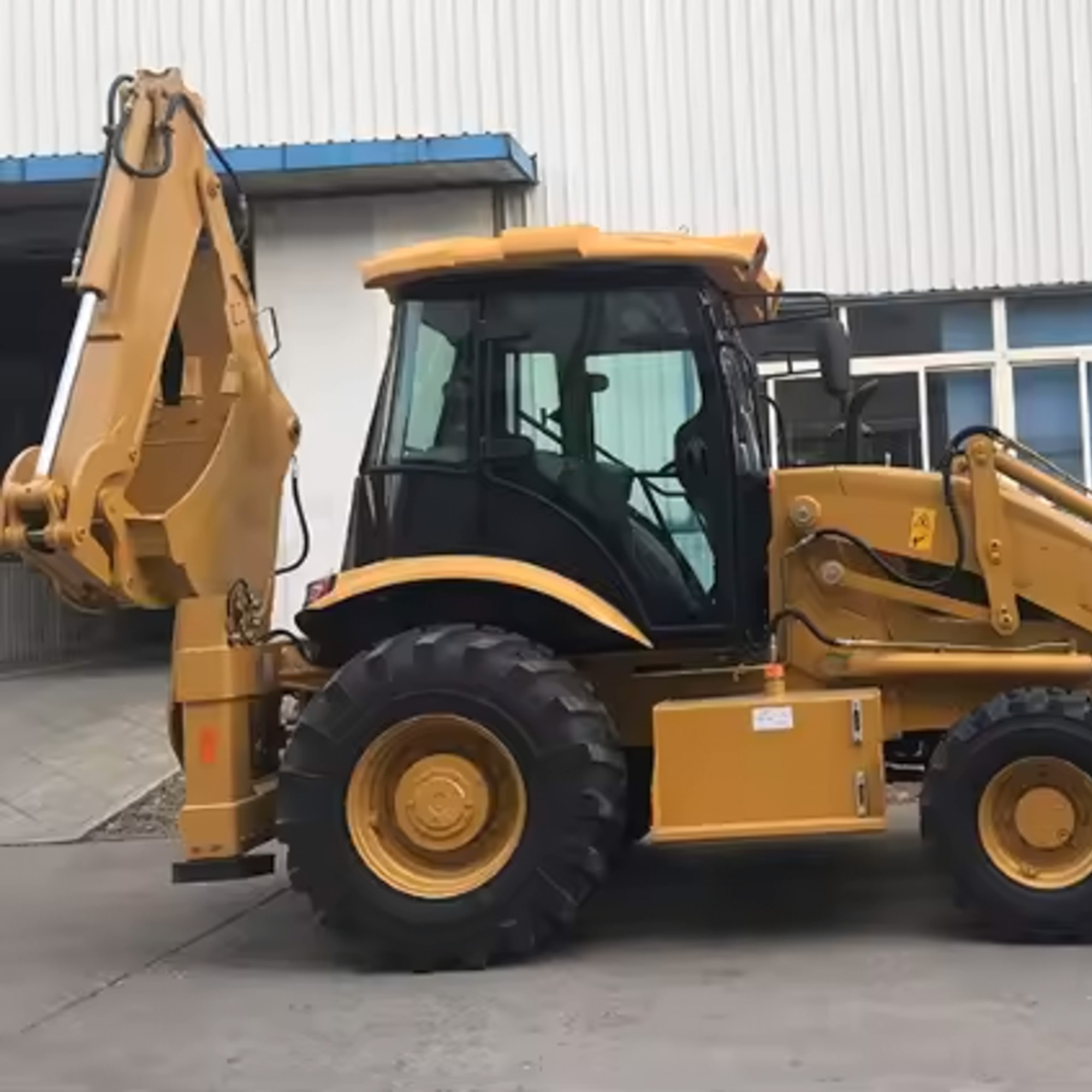

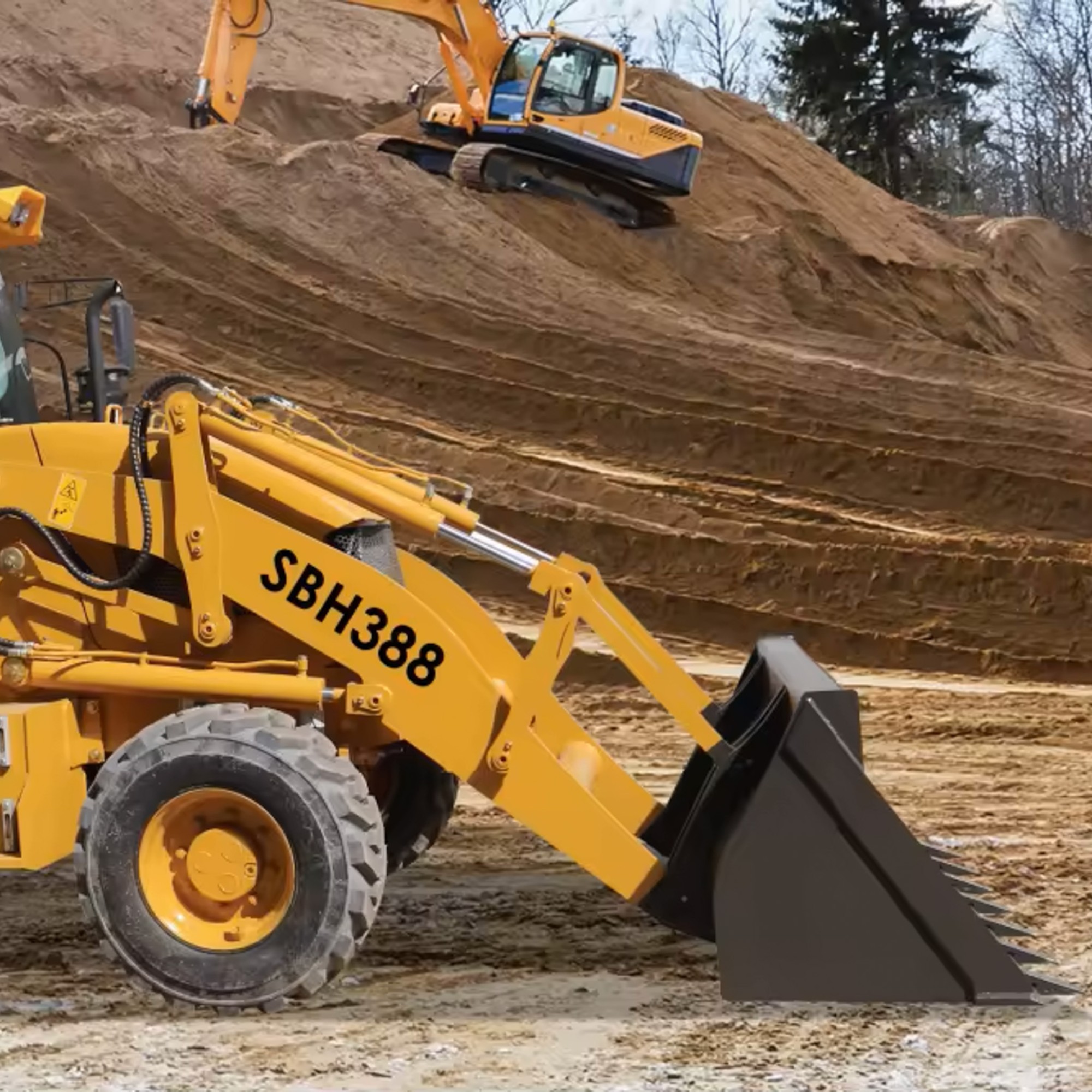

Shantui SBH388 8.2 Ton Backhoe Excavator Loader

• Price : $35,143.00
General Specifications:
Operating Weight: 8200 KG
Dimensions: 6100x2365x3752 mm
Wheel base: 2200mm
Min. Ground Clearance: 300mm
Loader Specifications:
Loader Bucket Capacity: 1.0m³
Breakout Force: 38KN
Rated Load: 2500KG
Bucket Dumping Height: 2742mm
Bucket Dumping Distance: 925mm
Digging Specifications:
Digging Depth: 52mm
Backhoe Bucket Capacity: 0.3m³
Max.  Digging Depth: 4082/4500mm
Swing Angle of Excavator Grab: 190°
Max.  Pulling Force: 39KN
Engine Specifications:
Model: YUCHAI YC4A105Z-T20
Type: In Line, Four cylinder, Direct injection
Cylinder-Inside Diameter*Stroke: 4-108x132
Rated Power: 75KW
Rated Speed: 2200r/min
Min.Fuel Consumption: ≤230g/km.h
Max. Torque: ≥400N. M
Displacement: 4.8L
Steering System Specifications:
Model of Steering Device: BZZ5-250
Steering Angle: ±36°
Min. turning radius: 6581mm
Pressure of the system: 12Mpa
Axle Specifications:
Type: Conventional
Main Transmission Type: Double Reduction
Final Reducer:Final Reducer
Rated Loader of Axle: 8/18.5t
Transmission System Specifications:
Torque Converter: YJ280
Type: Single-stage Three Elements
Max. Efficiency: 84.40%
Inlet Pressure: 1.3Mpa - 1.5 Mpa
Outlet Pressure: 0.25Mpa - 0.3 Mpa
Cooling Method: Oil-cooling Pressure Circulation
Transmission Type: Countershaft Power Shift
Oil Pressure of Clutch: 1373Kpa - 1569 Kpa
Gears: Two Fwd, Two Rev
Max. Speed: 28Km/h
Tyre Specifications:
Size: 14 - 17.5/19.5L - 24
Pressure of Front wheel: 0.55Mpa
Pressure of Back Wheel: 0.22Mpa
Brake System Specifications:
Service Brake: Air Over Oil Caliper Brake,External Type,Self-regulation,Self-balance
Parking Brake: Operation Power Implementing brake & Manual Operation Power Terminating Brake
Hydraulic System Specifications:
Digging Force of Excavator Bucket: 46.5KN
Digging Force of Excavator Arm: 44KN
Front Bucket Lifting Time: 6.8S
Front Bucket Lowering Time: 3.1S
Front Bucket Discharge Time: 2.0S
