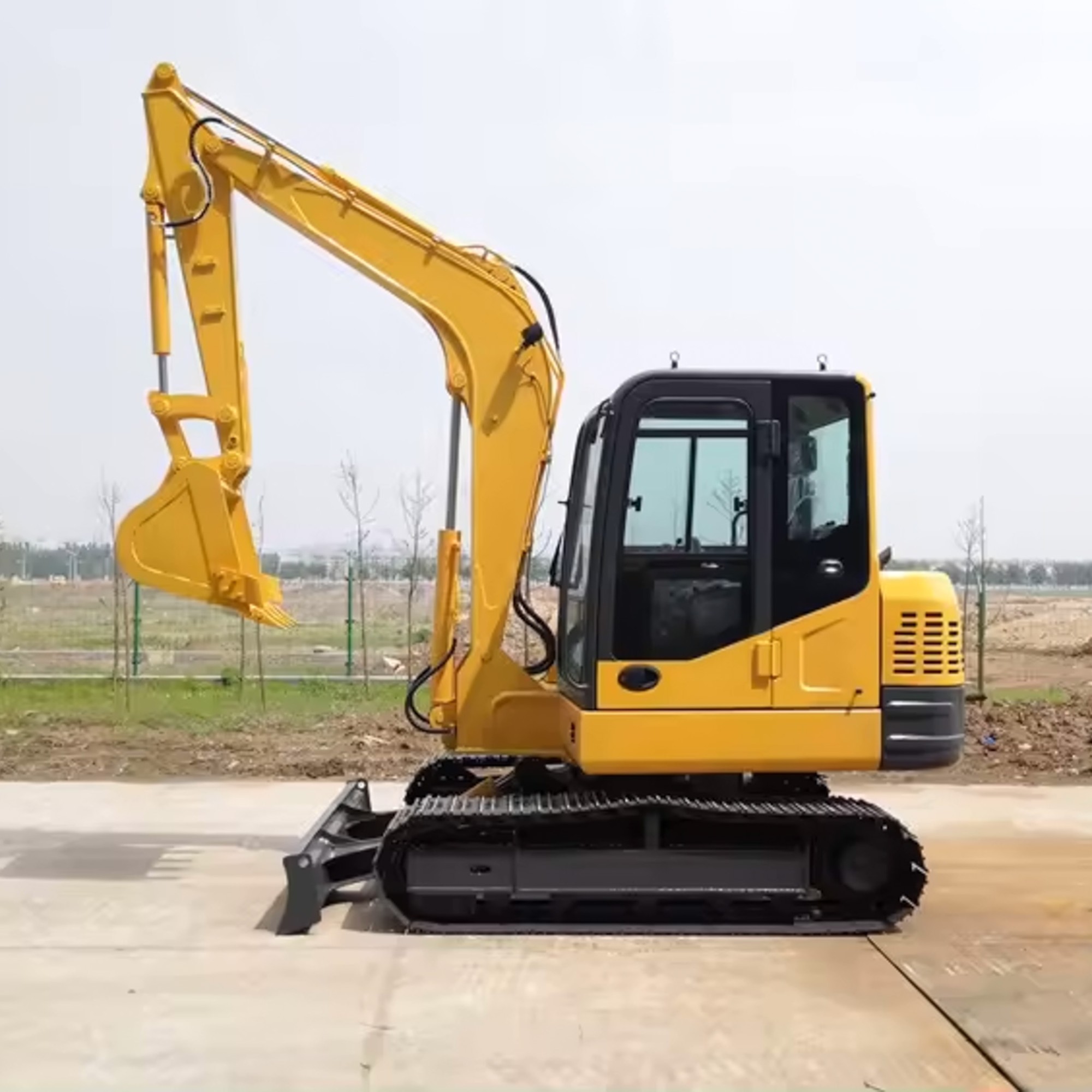

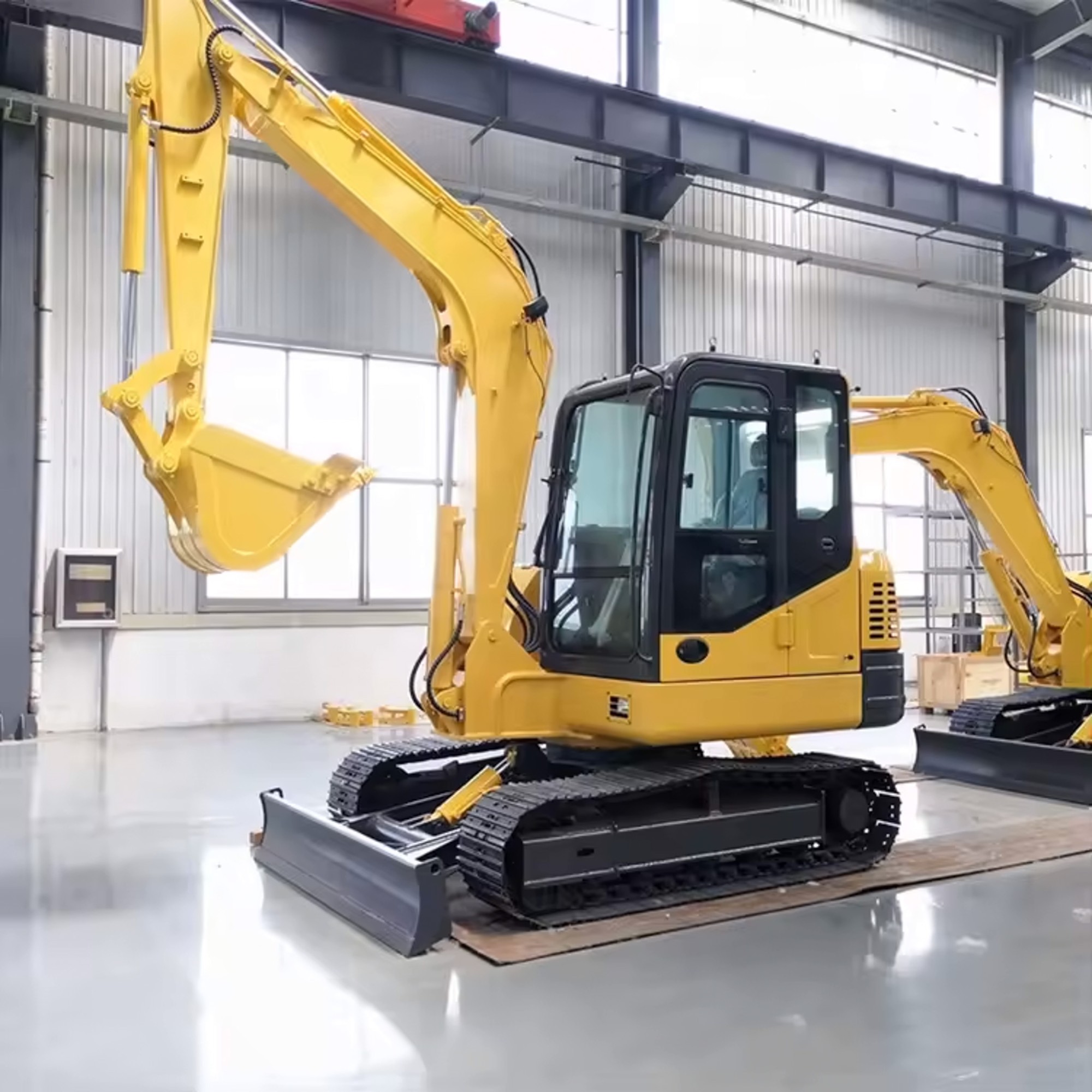

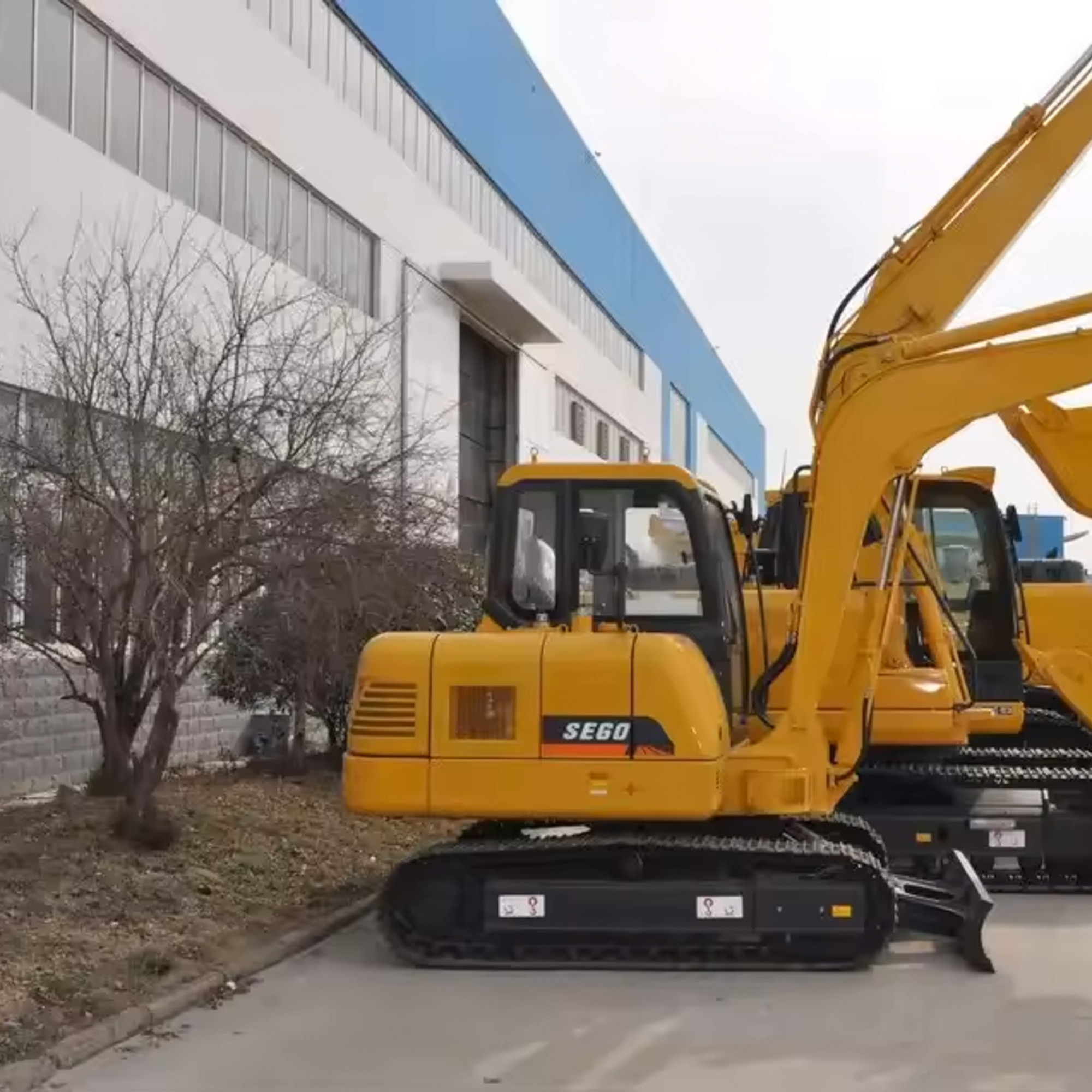

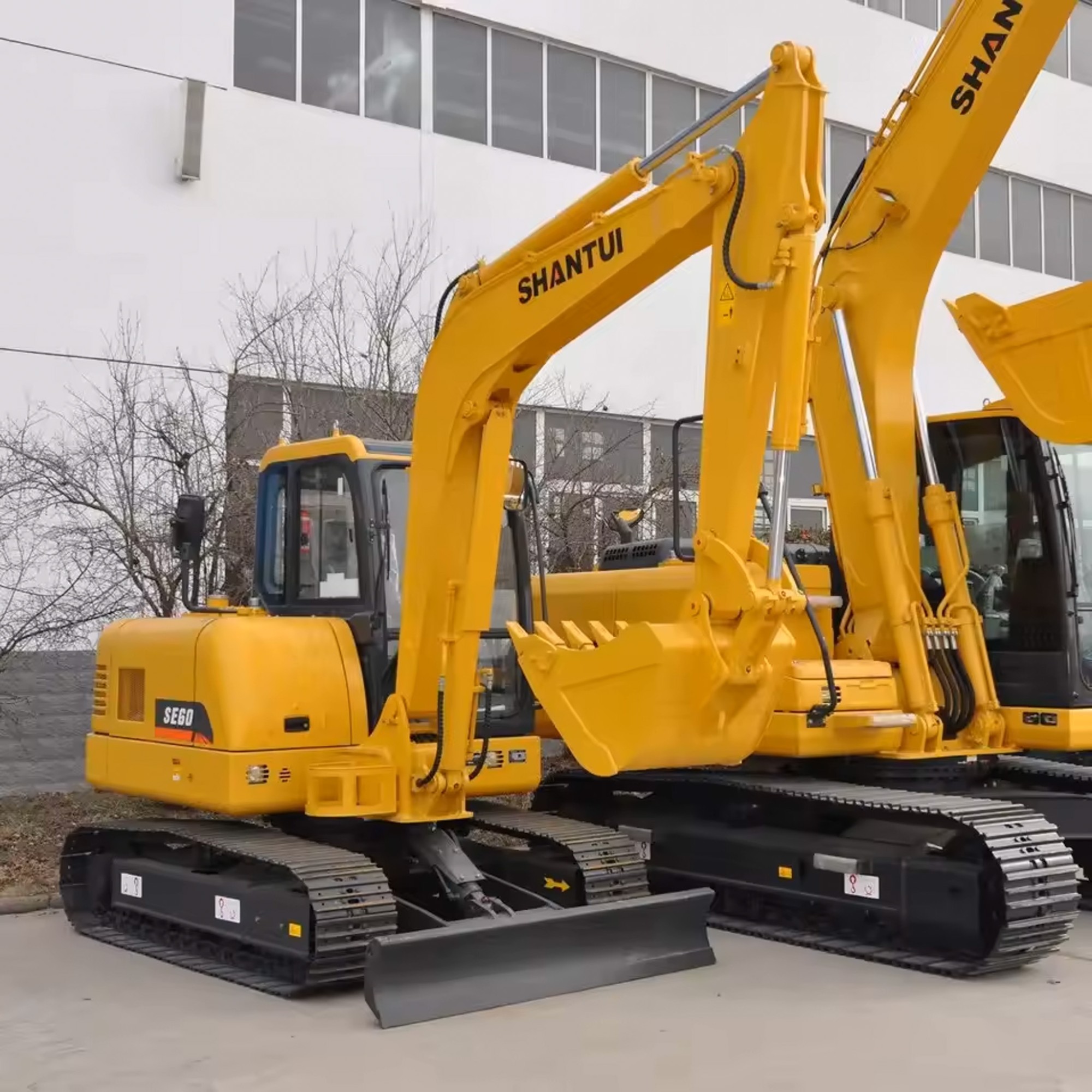

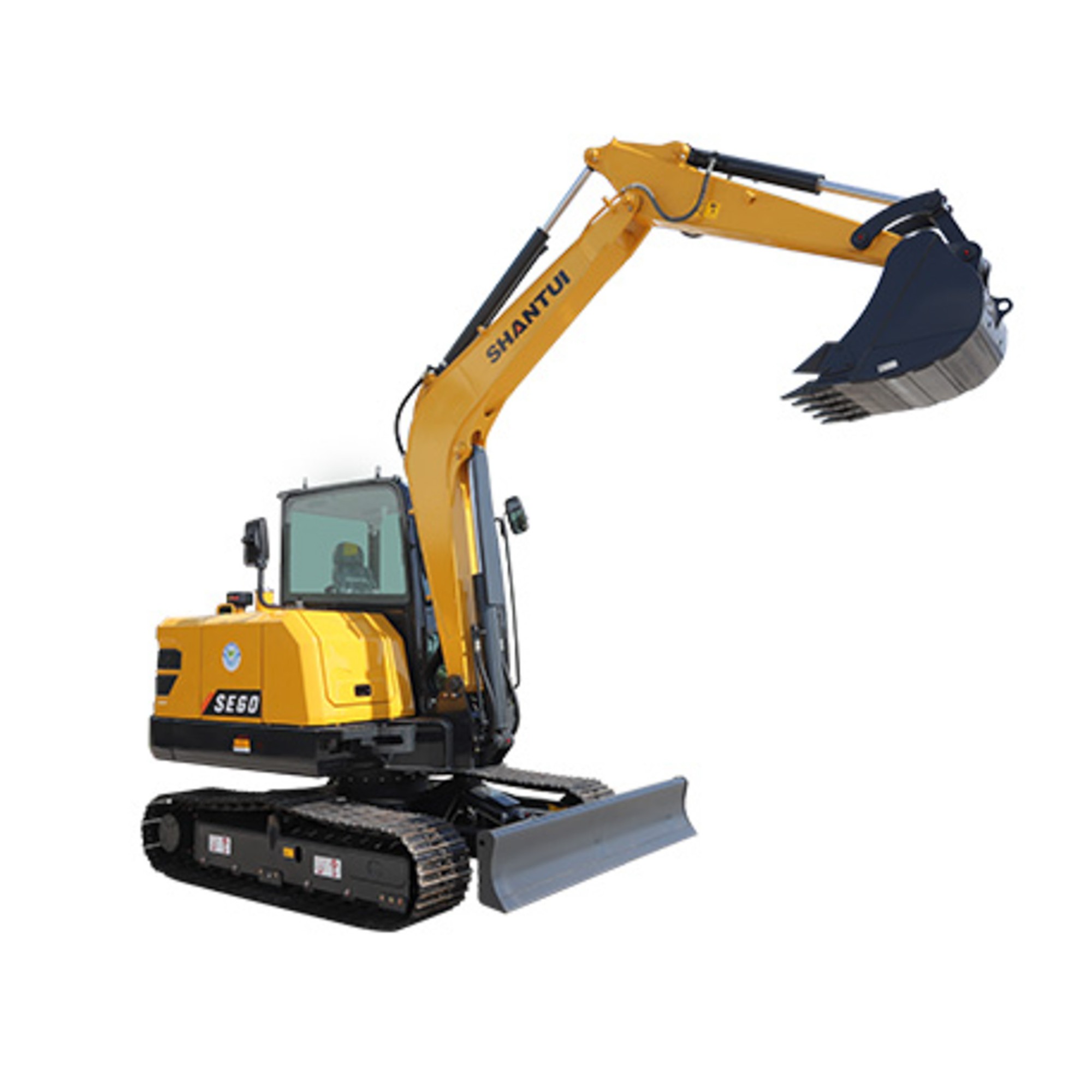

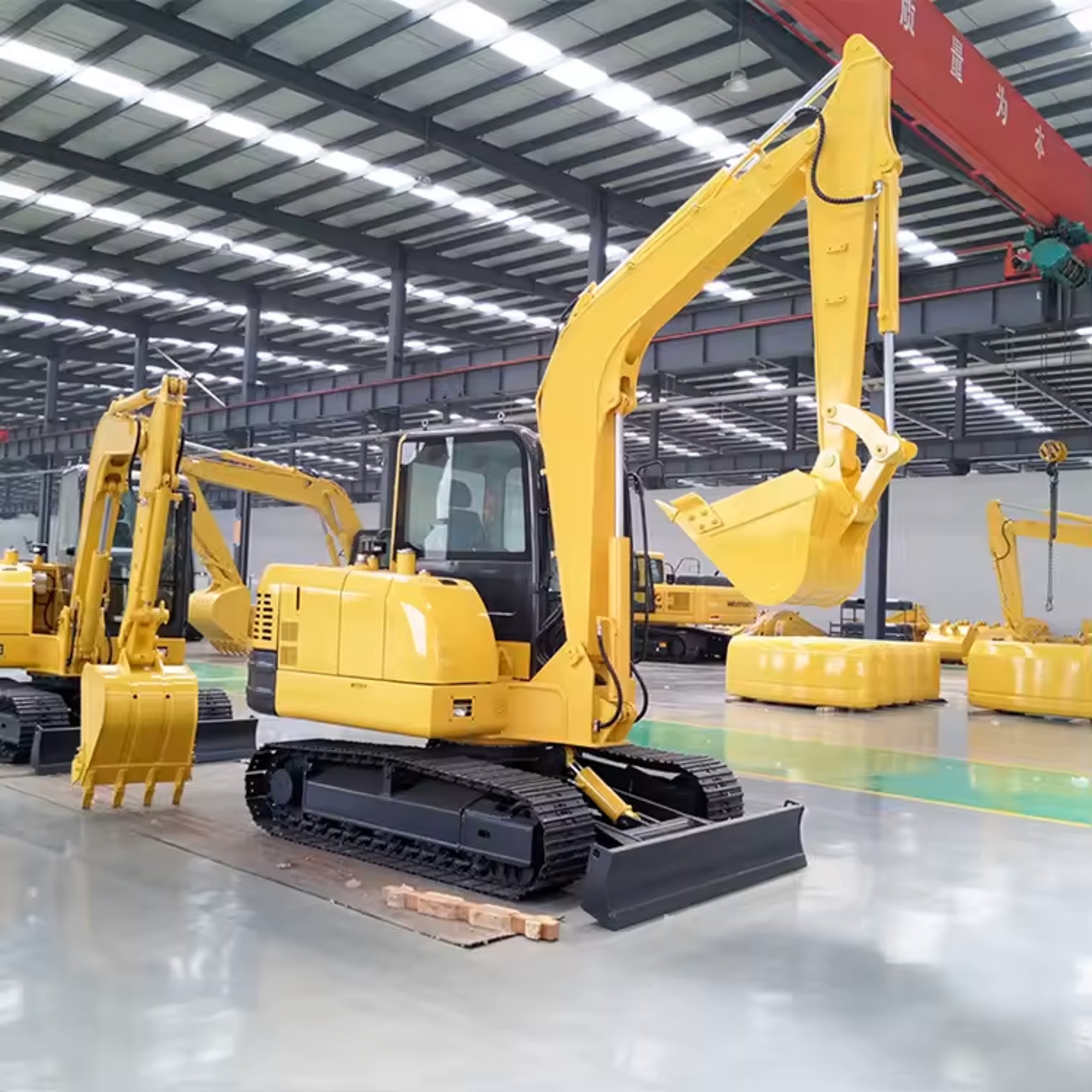

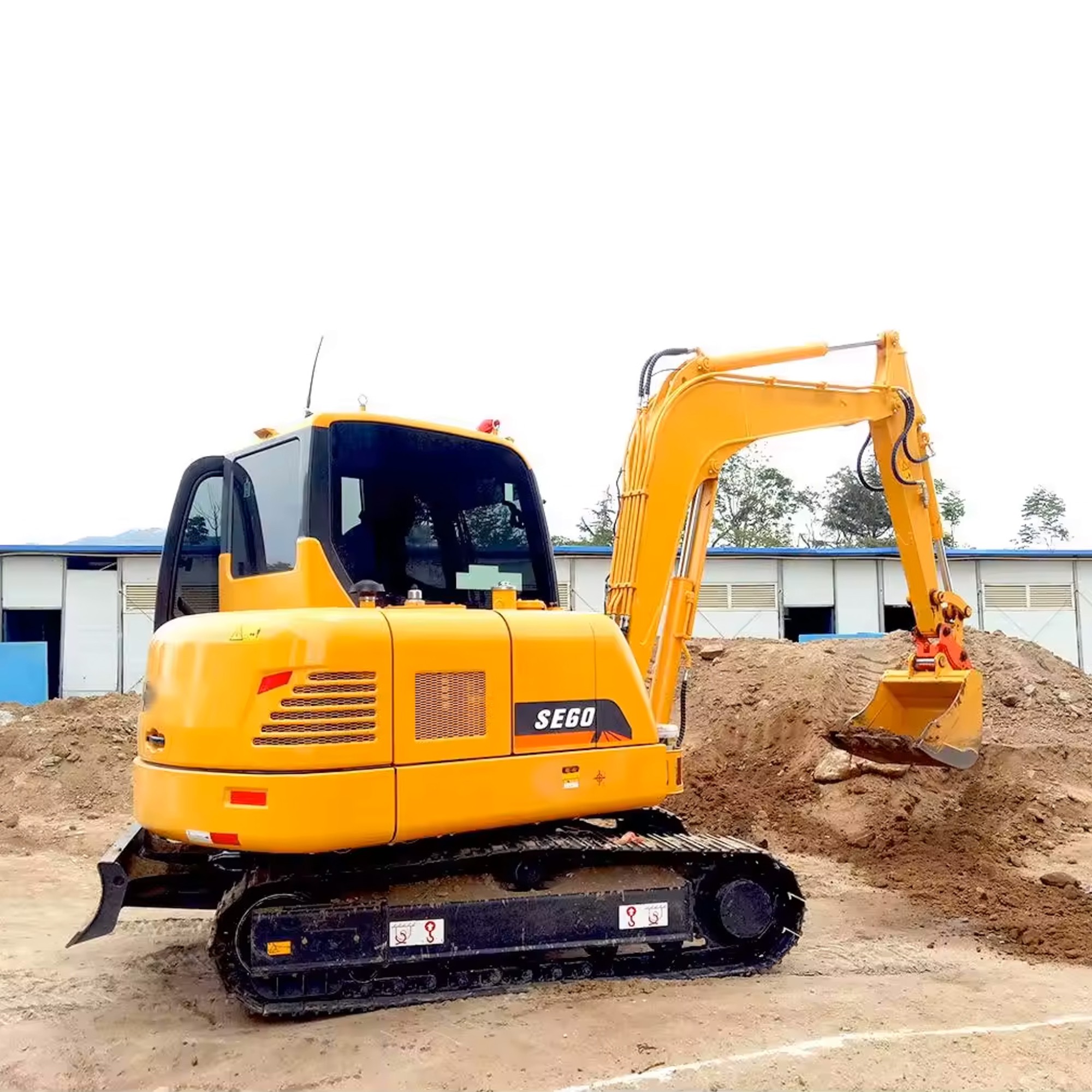

Shantui SE60 6Ton Excavator

• Price : $22,857.00
Engine:
Model: WEICHAI WP3.2
Type: Four cylinders, water cooling, electric spray, self-priming
Number of cylinders: 4
Emission Regulation: Tier 3/Stage lll
Displacement: 3.17L
Power output: 36.8kW/2200rpm
Hydraulic System:
Type: Variable plunger pump
Max.  discharge flow: 152L/min
Digging Force (ISO6015):
Bucket digging force: 48 kN
Arm digging force: 29 kN
Bucket:
Type: Backhoe bucket
Capacity: 0.11 - 0.22(0.22)m³
Width: 810mm
Travel System:
Type: Axial variable plunger motor
Support roller quantities: 5X2
Carrier roller quantities: 1×2
Travel shoes: 40X2
Travel speed: 27/4.6&2.3/4km/h
Drawbar pulling force: 50kN
Grade ability: 70 %(35°)
Swing System:
Swing motor type: Swash plate plunger motor
Swing speed: 0 - 11r/min
Brake type: Pressure release.  mechanical braking
Refilling Capacities & Lubrications:
Fuel tank: 105L
Cooling system: 10.4L
Engine oil: 9.5L
Hydraulic oil tank: 74
System Capacity: 110L
Operating Weight and Ground Pressure:
Shoe width: 400mm
Ground pressure: 33kPa
Operating weight: 5960kg
Scope of Work:
Max. digging height: 5785mm
Max. dumping height: 4075mm
Max. digging depth: 3850mm
Max. vertical digging depth: 3000mm
Max. Depth cut for 2500mm Level Bottom: 3770mm
Max. digging distance: 6200mm
Max. digging radius at ground level: 6060mm
Min. swing radius of work equipment: 2395mm
Max lifting height of bulldozer: 385mm
Max cutting depth of the bulldozer: 465mm
Dimensions:
Overall length: 5855mm
Ground contact length (Transportation): 3330mm
Overall height (to top of boom): 2060mm
Overall width: 1880mm
Overall height (to top of cab): 2610mm
Counter weight ground clearance: 710mm
Ground clearance: 360mm
Tail swing radius: 1655mm
Crawler wheel base: 1990mm
Track length: 2560mm
Track gauge: 1480mm
Track width: 1880mm
Shoe width: 400mm
Bonnet height: 1635mm
Revolving frame width: 1780mm
Distance from swivel center to tail: 1655mm.
