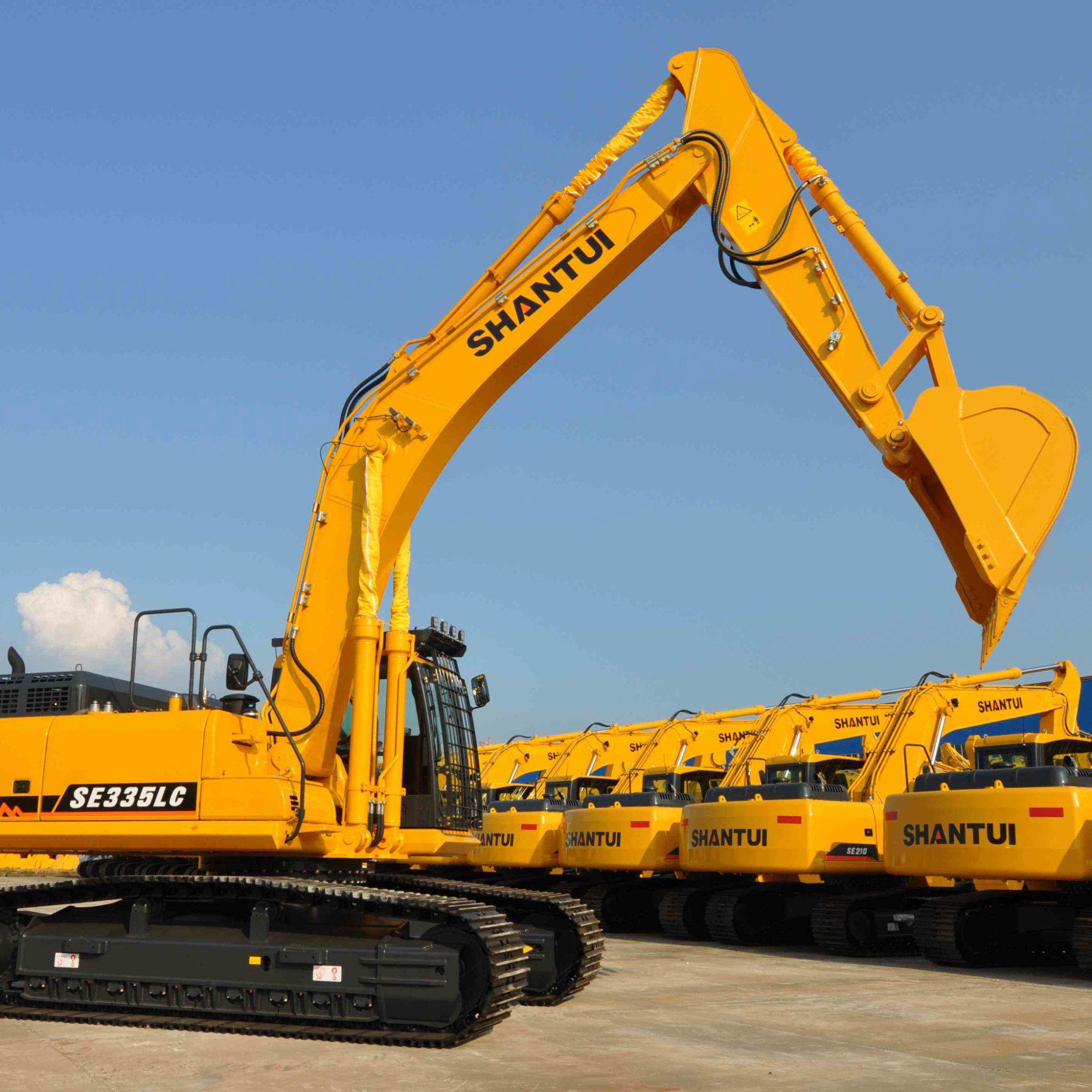

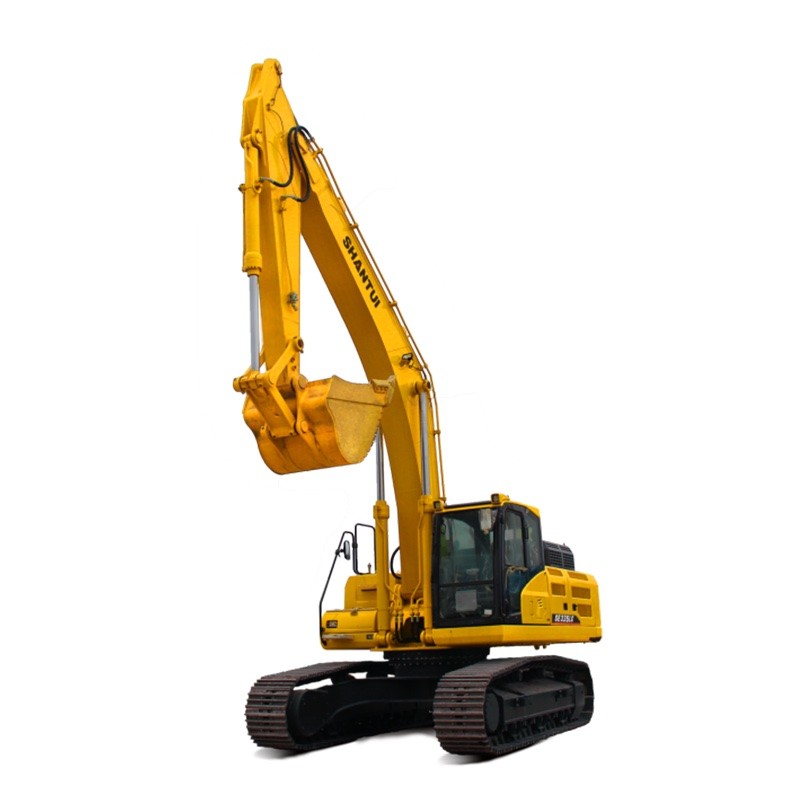

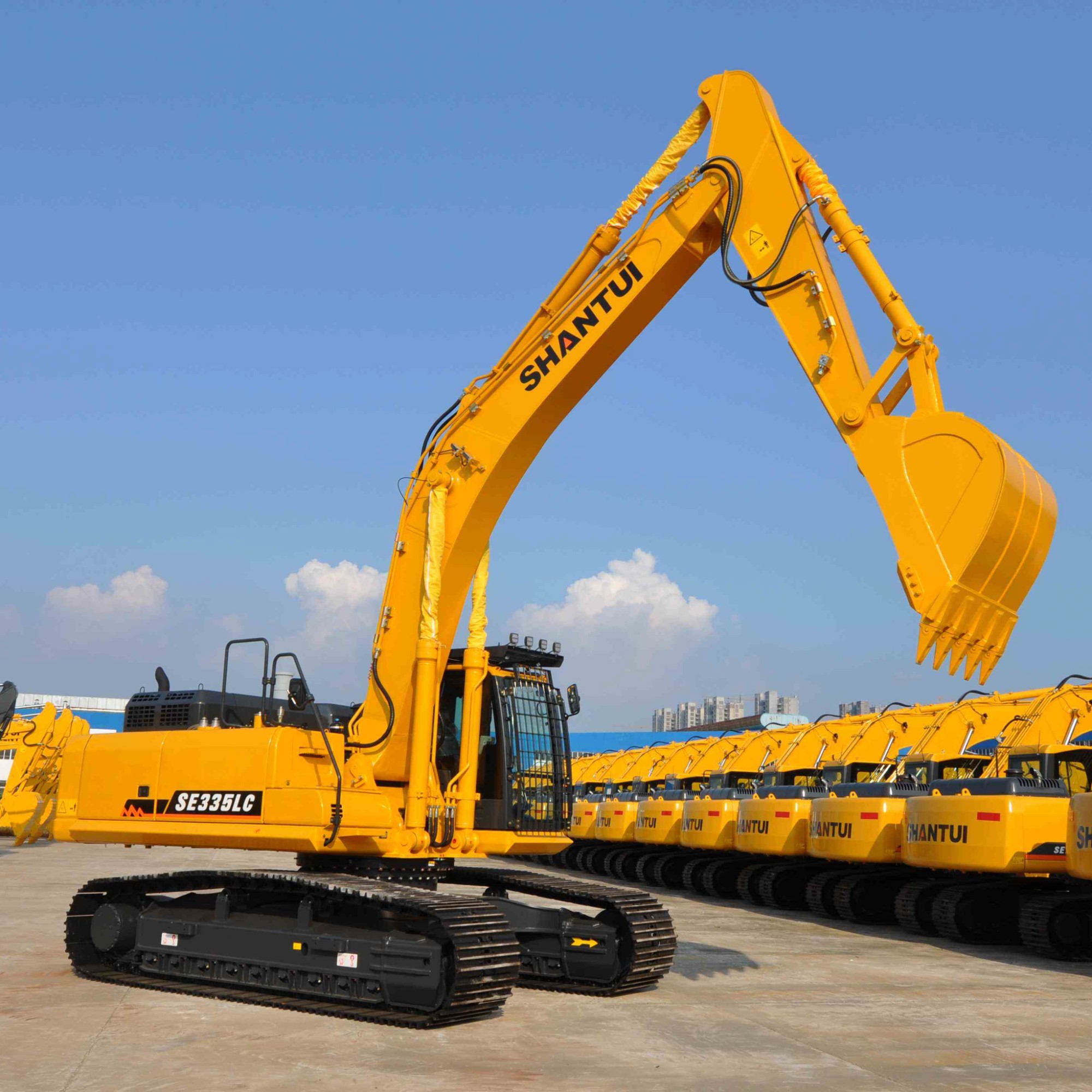

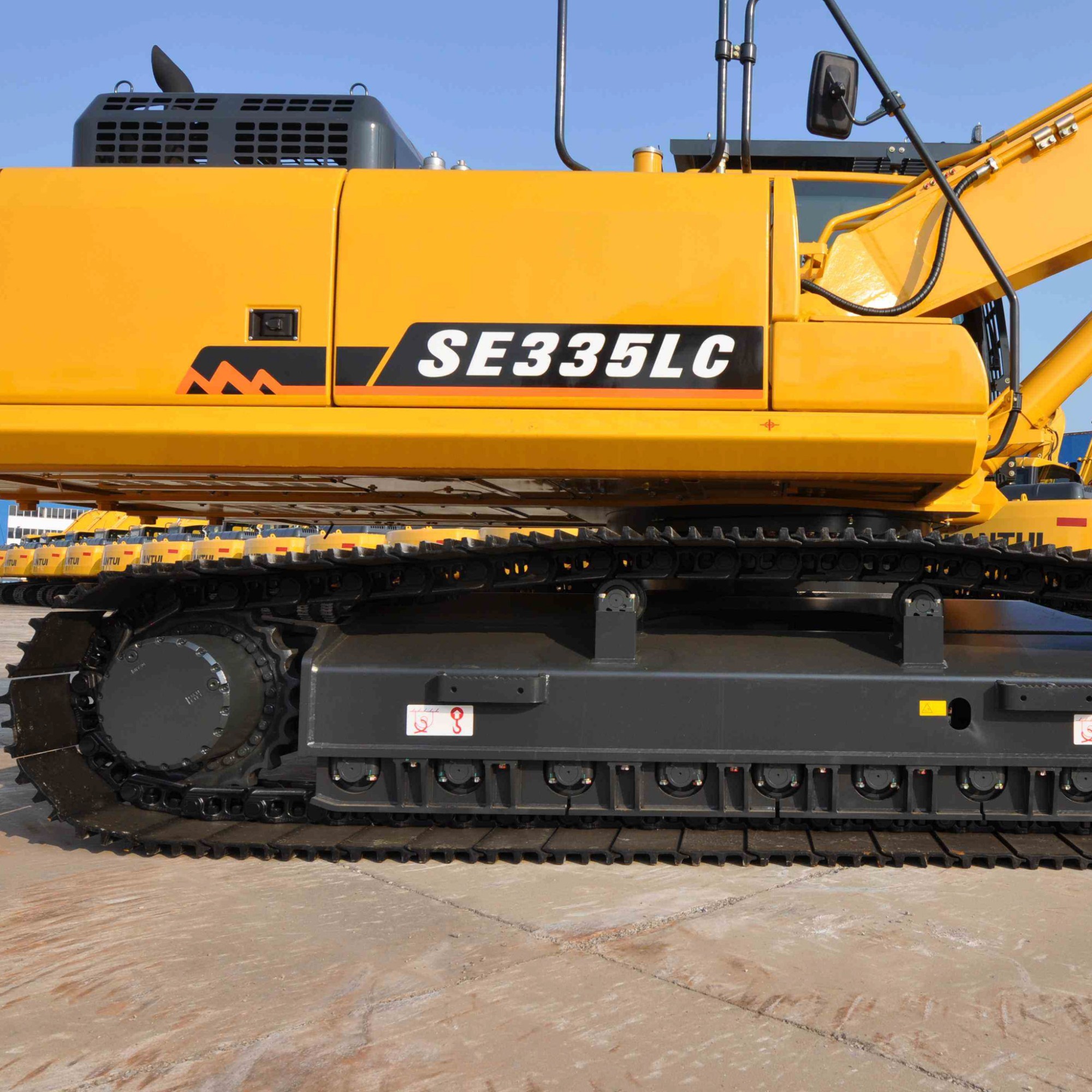

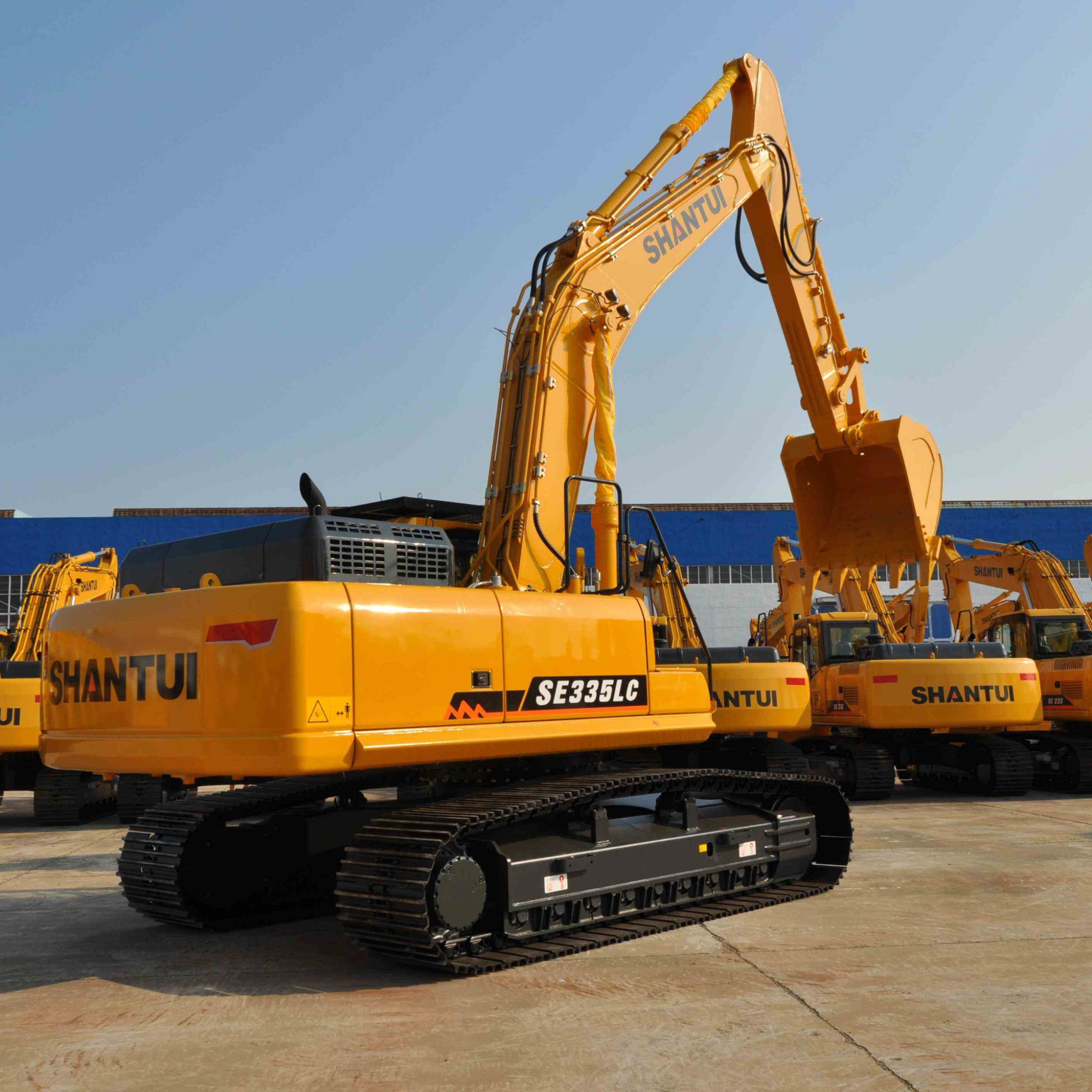

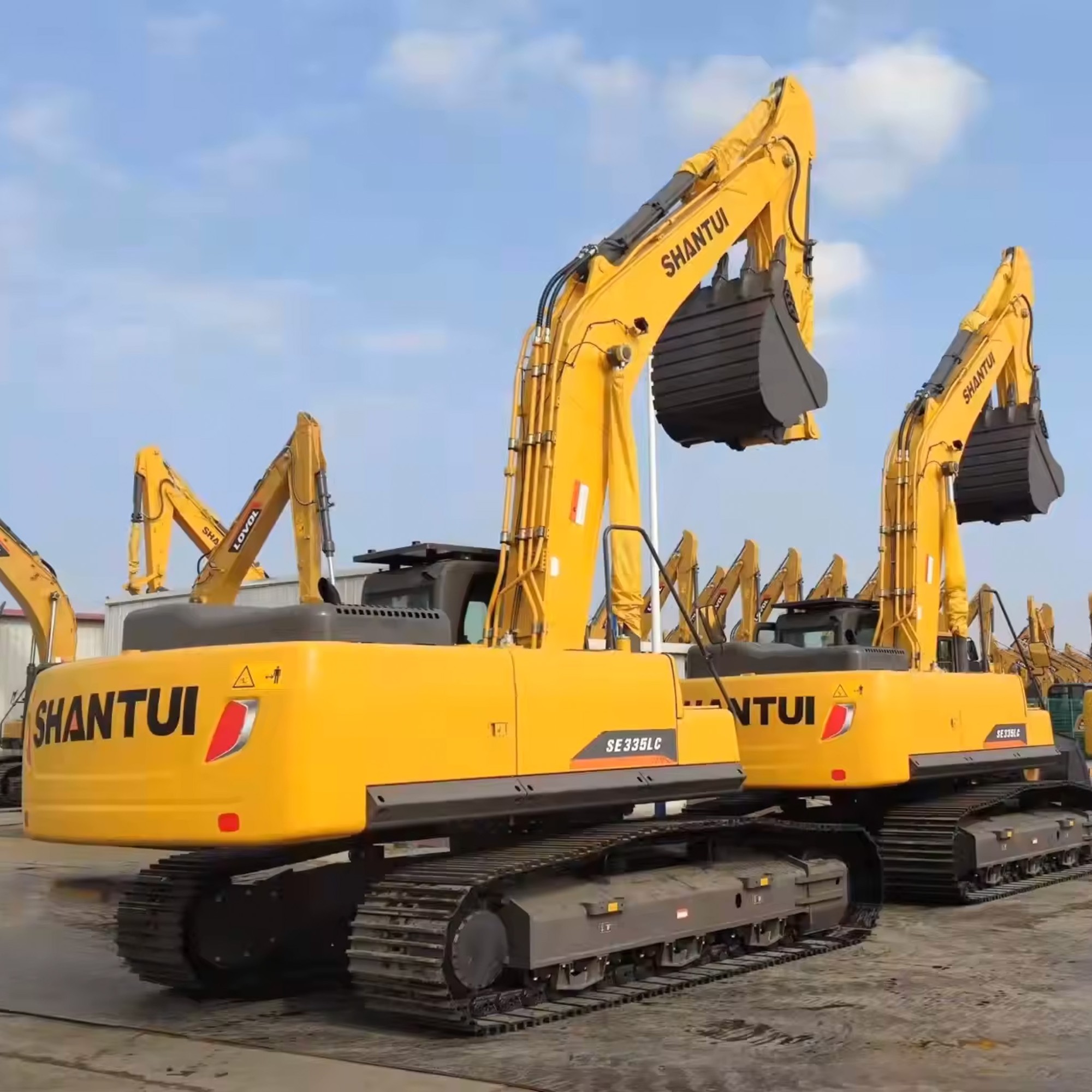

Shantui SE335LC 34.5Ton Excavator

• Price : $150,000.00
Engine:
Model: Weichai WP9H
Type: High pressure common rail, turbocharged
Number of cylinders: 6
Emission Regulation: Tier 3/Stage lll
Displacement: 8.8L
Power output: 220kW/2000rpm
Hydraulic System:
Type: Variable piston pump
Max. discharge flow: 300x2L/min
Digging Force (ISO6015):
Bucket digging force: 234kN
Arm digging force: 174kN
Bucket:
Type: Backhoe bucket
Capacity: 1.6m³
Width: 1490mm
Travel System:
Type: Axial variable plunger motor
Support roller quantities: 9X2
Carrier roller quantities: 2X2
Travel shoes: 48X2
Travel speed: 3.0 - 5.1km/h
Drawbar pulling force: 283kN
Grade ability: 70%(35°)
Swing System:
Swing motor type: Swash plate plunger motor
Swing speed: 0 - 10.5r/min
Brake type: Pressure release mechanical braking
Refilling Capacities & Lubrications:
Fuel tank: 620L
Cooling system: 30L
Engine oil: 24L
Hydraulic oil tank: 300L
System Capacity: 420L
Operating Weight and Ground Pressure:
Shoe width: 600mm
Ground pressure: 61.5kPa
Operating weight: 34500kg
Scope of Work:
Max. digging height: 10120mm
Max. dumping height: 6995mm
Max. digging depth: 7425mm
Max. vertical digging depth: 6810mm
Max. Depth cut for 2500mm Level Bottom: 7250mm
Max. digging distance: 11135mm
Max. digging radius at ground level: 10945mm
Min. swing radius of work equipment: 4335mm
Dimensions:
Overall length: 11260mm
Ground contact length (Transportation): 6900mm
Overall height(to top of boom): 3770mm
Overall width: 3200mm
Overall height(to top of cab): 3210mm
Counter weight ground clearance: 1260mm
Ground clearance: 530mm
Tail swing radius: 3520mm
Crawler wheel base: 4030mm
Track length: 4935mm
Track gauge: 2600mm
Track width: 3200mm
Shoe width: 600mm
Bonnet height: 2830mm
Revolving frame width: 3190mm
Distance from swivel center to tail: 3465mm.
