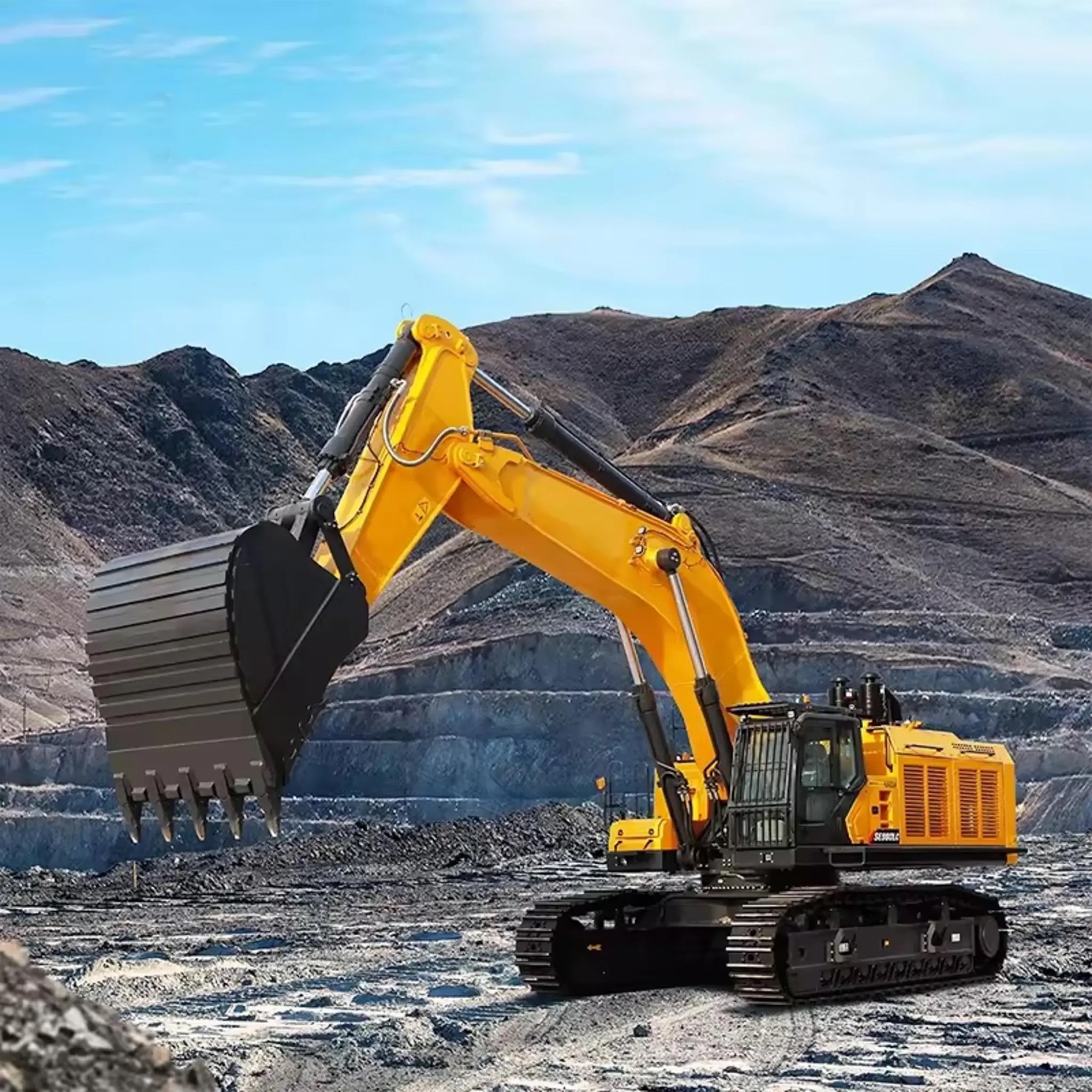

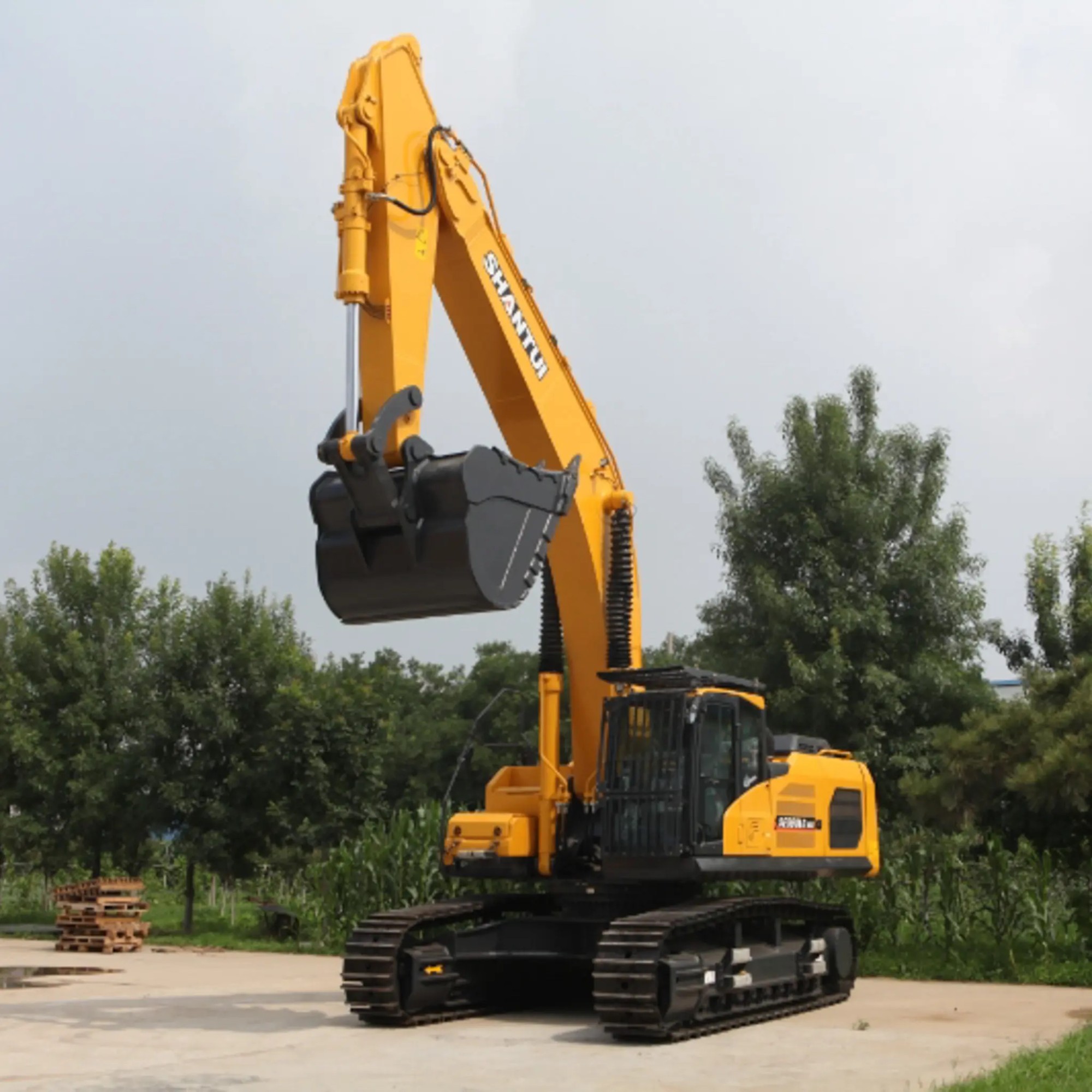

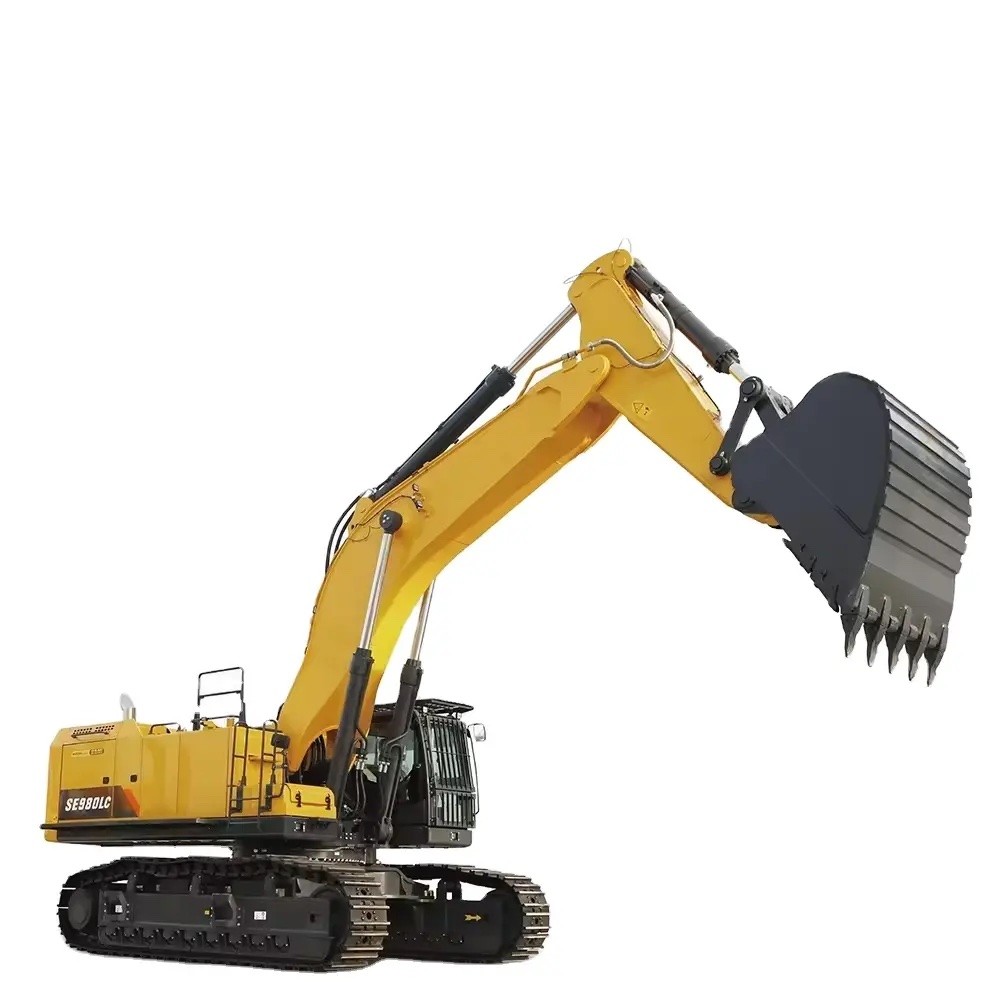

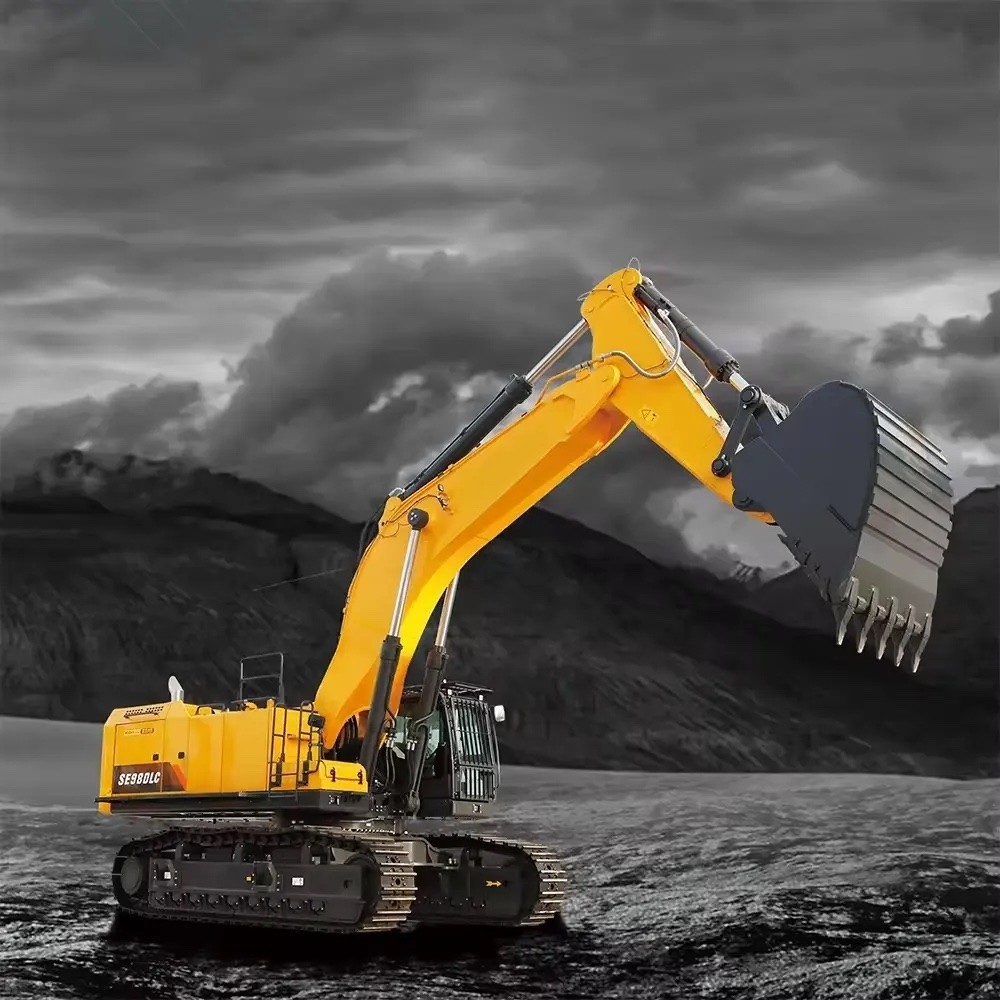

Shantui SE980LC 98Ton Excavator

• Price : $642,857.00
Engine:
Model: Weichai 6M33
Type: Electronically controlled high-pressure common rail, water-cooled, in-line six-cylinder, turbocharged
No.  of cylinders - Bore and stroke: 6 - 150mm x 185mm
Emission Regulation: --
Displacement: 19.6L
Power output: 571kW/1800rpm
Hydraulic System:
Type: Piston pump plus gear pump plus cooling pump
Max.   discharge flow: 2x570L/min
Digging Force (ISO6015):
Bucket digging force: 480kN
Arm digging force: 417kN
Bucket:
Type: Backhoe bucket
Capacity: 6.5m³
Width: 2525mm
Travel System:
Travel motors: Axial variable plunger motor
Support roller quantities: 9X2
Carrier roller quantities: 3X2
Travel shoes: 51X2
Travel speed: 2.8/4.1km/h
Drawbar pulling force: 626N.m
Grade ability: 70%(35°)
Swing System:
Swing motor type: Piston motor
Swing speed: 6.9r/min
Brake type: --
Refilling Capacities:
Fuel tank: 1250L
Cooling system: 85L
Engine oil: 63L
Hydraulic oil tank: 580L
System Capacity: 1000L
Operating Weight and Ground Pressure:
Shoe width: 650mm
Ground pressure: 135kPa
Operating weight: 97800kg
Scope of Work:
Max. digging height: 12735mm
Max. dumping height: 8195mm
Max. digging depth: 7150mm
Max. vertical digging depth: 4960mm
Max. Depth cut for 2500mm Level Bottom: 7010mm
Max. digging distance: 12620mm
Max. digging radius at ground level: 12310mm
Min. swing radius of work equipment: 4395mm
Dimensions:
Overall length: 13720mm
Ground contact length (Transportation): 8415mm
Overall height (to top of boom): 4990mm
Overall width: 3605/4200mm
Overall height (to top of cab): 3720/3855mm
Counter weight ground clearance: 1645mm
Ground clearance: 915mm
Tail swing radius: 4715mm
Tread: 5090mm
Track length: 6350mm
Track gauge: 2790/3550mm
Track width: 3440/4200mm
Shoe width: 650mm
Bonnet height: 3585mm
Revolving frame width: 3480mm
Distance from swivel center to tail: 4595mm.
