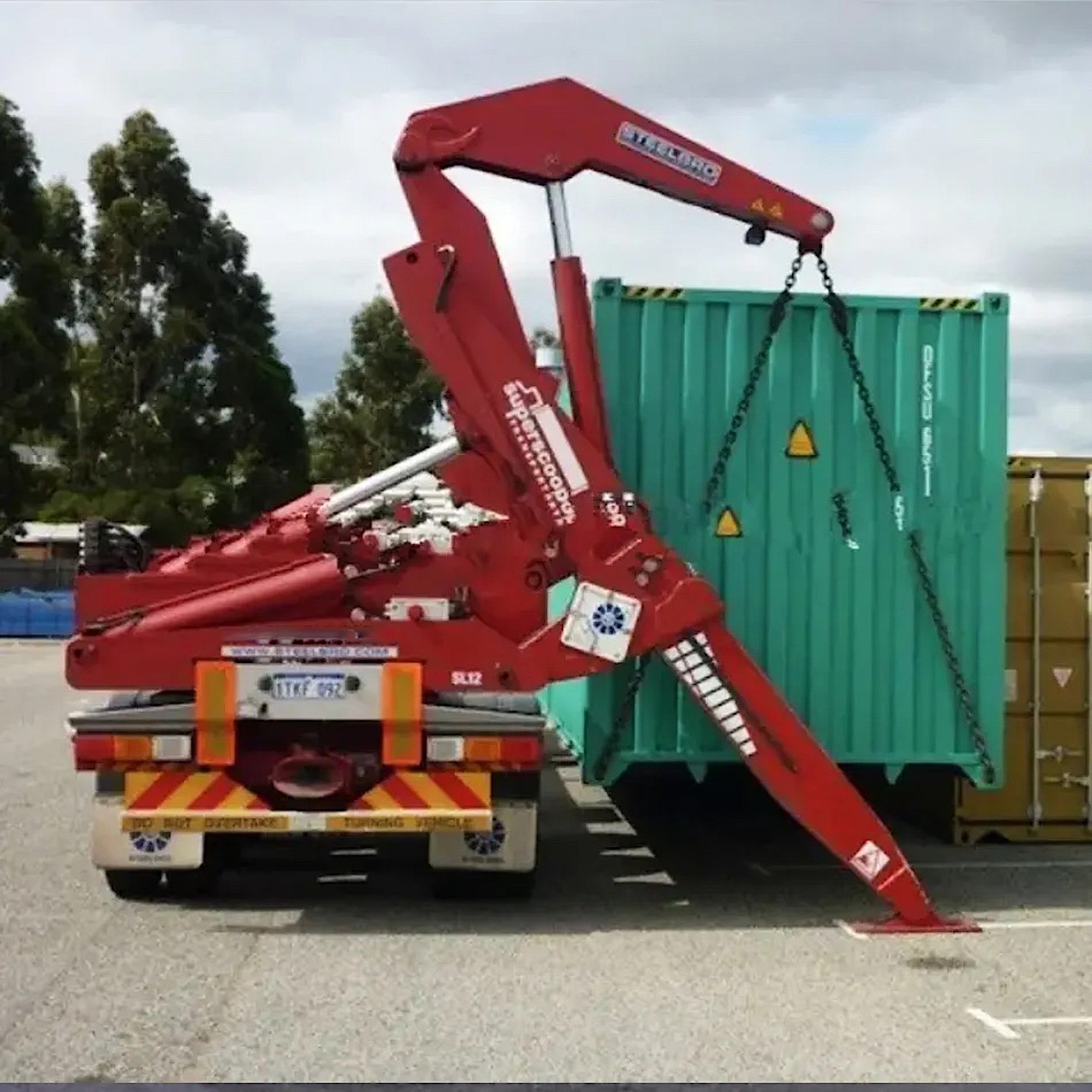

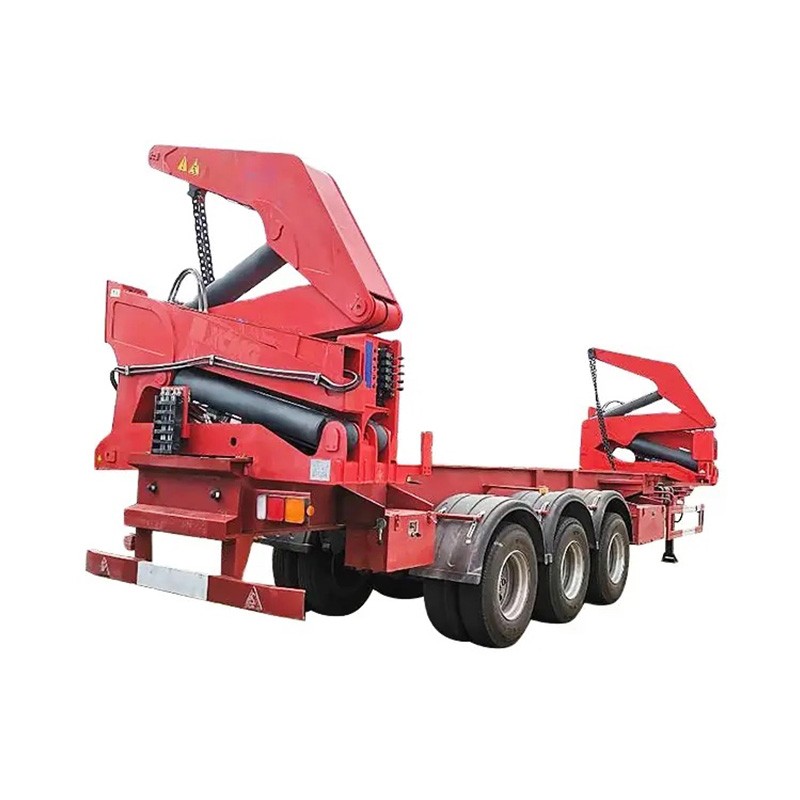

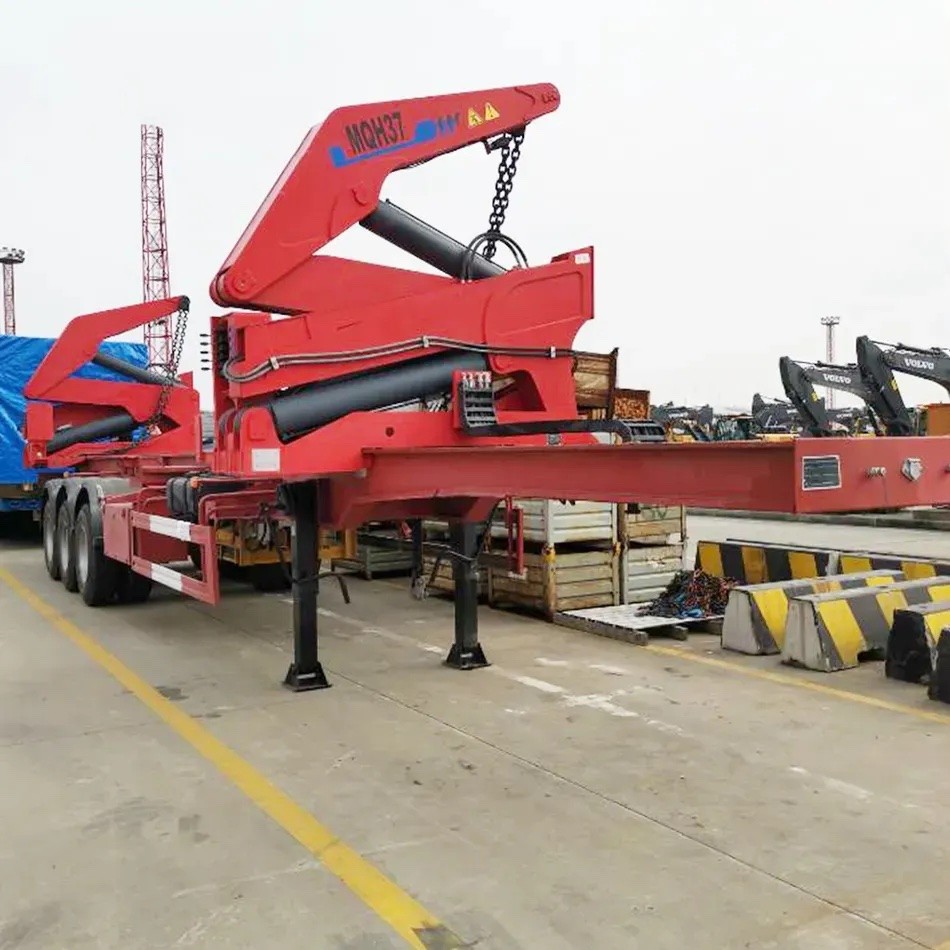

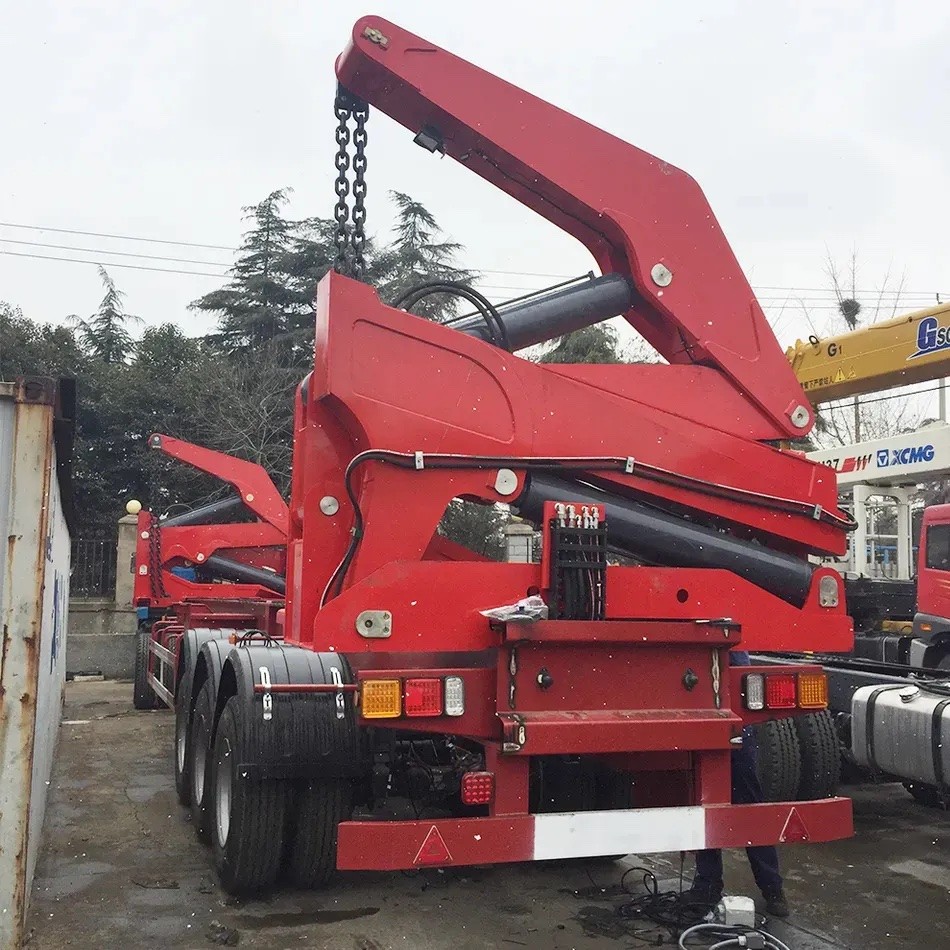

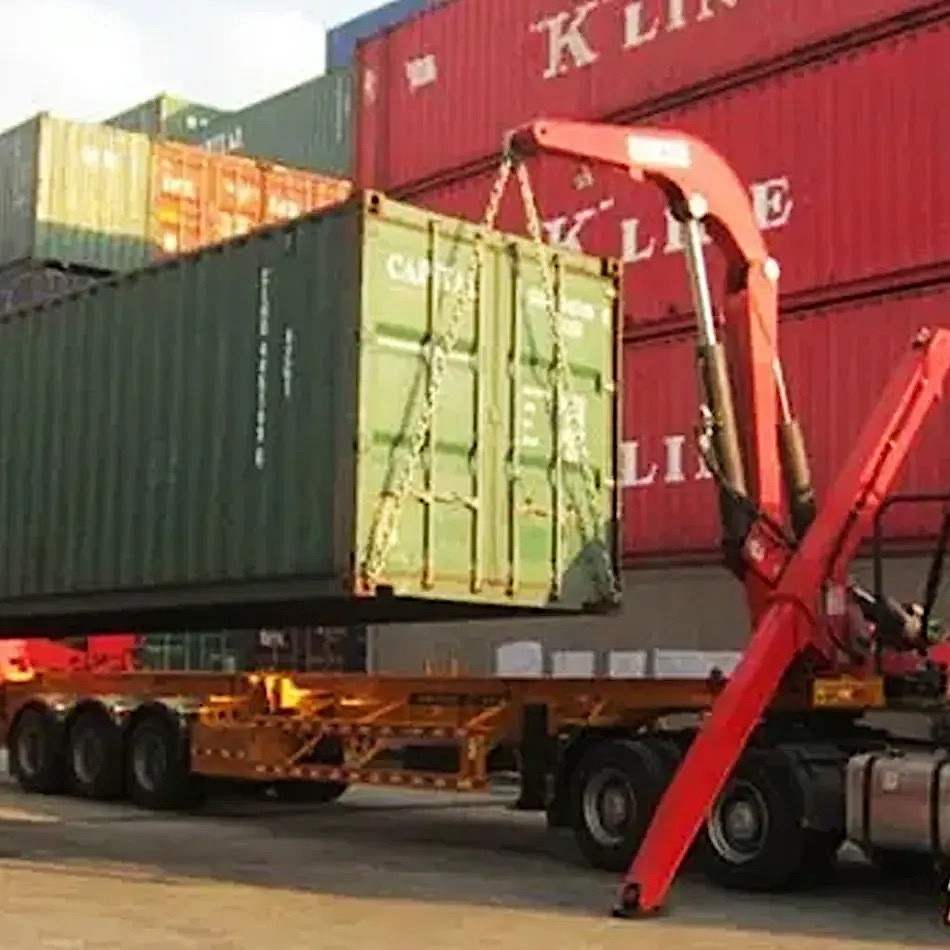

Side Loader Container Trailer Lift Truck Trailer

Vehicle Core Information
Dimensions
Length: 13900mm
Width: 2500mm
Height: 3990mm
Volume:140CBM
Load-related
Maximum lifting capacity: 36000Kg
Dead weight: 14510kg
Crane weight: 7000Kg
Working Parameters
Working pressure: 25MPa
Applicable Containers
Container size: 20 feet, 40 feet
Vehicle Components
Axle: 3 pieces, 13T FUWA
Tyre: 12 pieces, 11.00R20
Rim: 12 pieces, 8.00×20
Landing gear: 1 pair, JOST C200
Kingpin 3.5 inches: 1 piece, JOST 90#
Container twist lock: 12 pieces
Leaf spring: 16 thickness × 90 width × 8 pieces
Frame: Q345
Main beams: 2 pieces, I BEAM 500x140, top flange plate 14, bottom flange plate 14, web plate 8, Q345 steel plate
Control Systems
PLC: Both English and Chinese
Electric system: 24V, 7 - core socket
