Terminal Roll Trailer 45ft/65t

• Price : $16,575.00 - $19,575.00

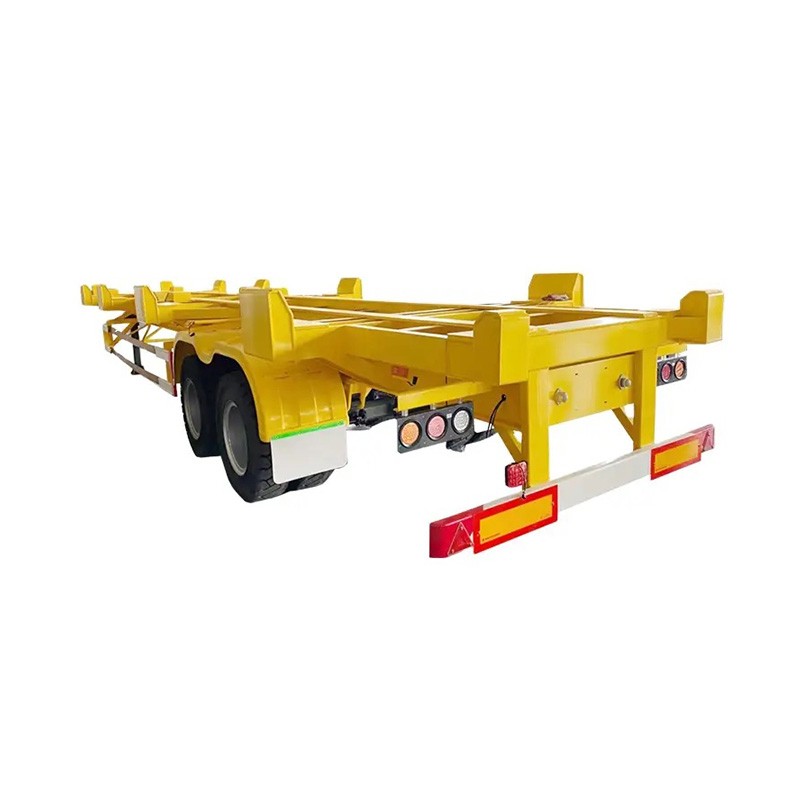

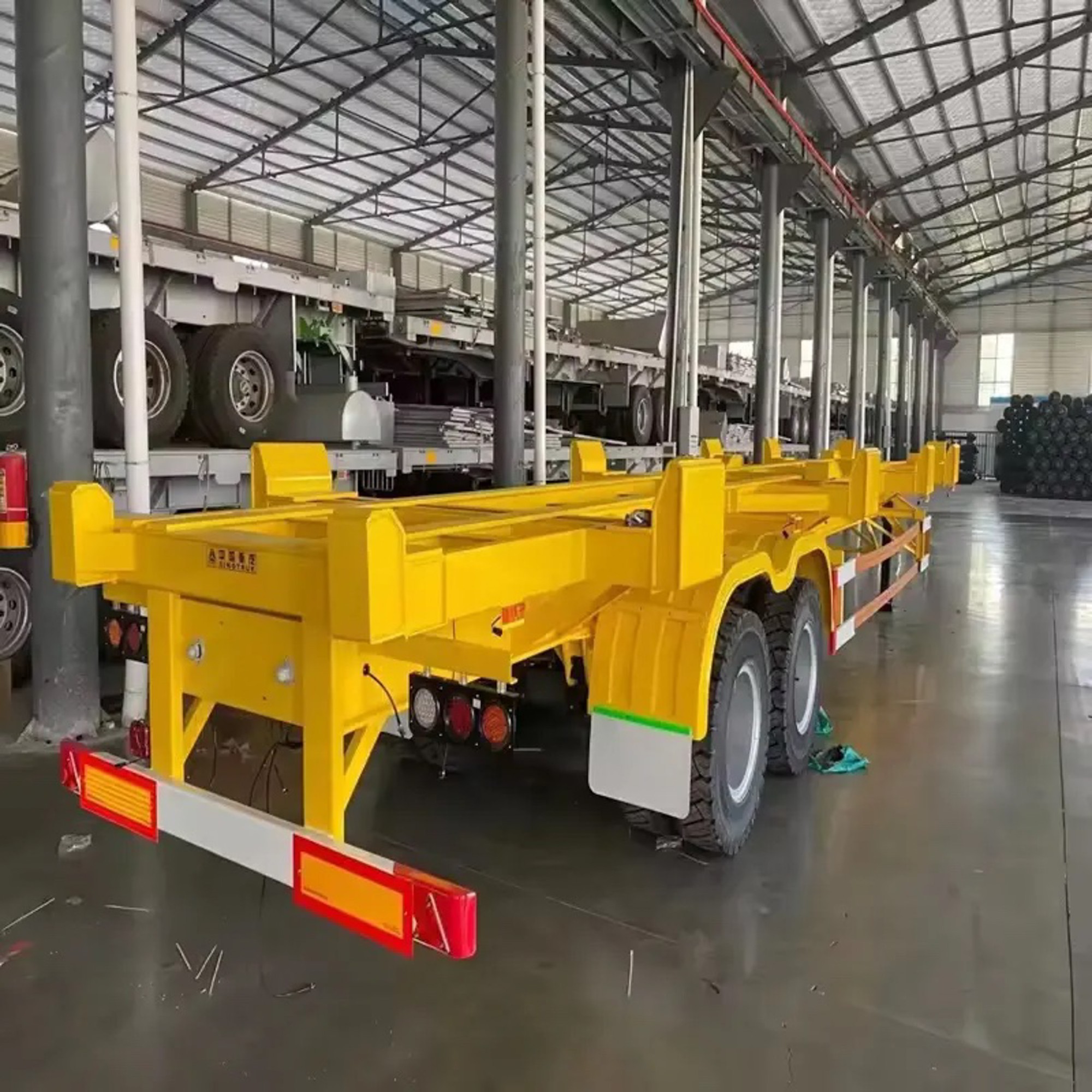

TERMINAL ROLL TRAILER 45FT/65T (BOMB CART)
Design and Application
Design: 1 or 2 x 20' ISO containers,
1 x 40' ISO container
1 x 45' ISO container
Dimensions:
Length: 14136 ± 10
Width: 2700 ± 10
Height: 1708 ± 10
Fifth wheel height: 1160
Operating Conditions:
1.The Trailers must run on hard level  surfaces within the Port and Container Terminal.
2.Roll Trailers can operate in a salt dust laden environment of high temperature and humidity.
Temp range: 3°C - 51°C
Humidity range: 48% - 100%
Dew point: 2°C - 34°C
Vehicle Specifications
Load Capacity: Can carry a fully loaded ISO 45ft container, 60 tons payload

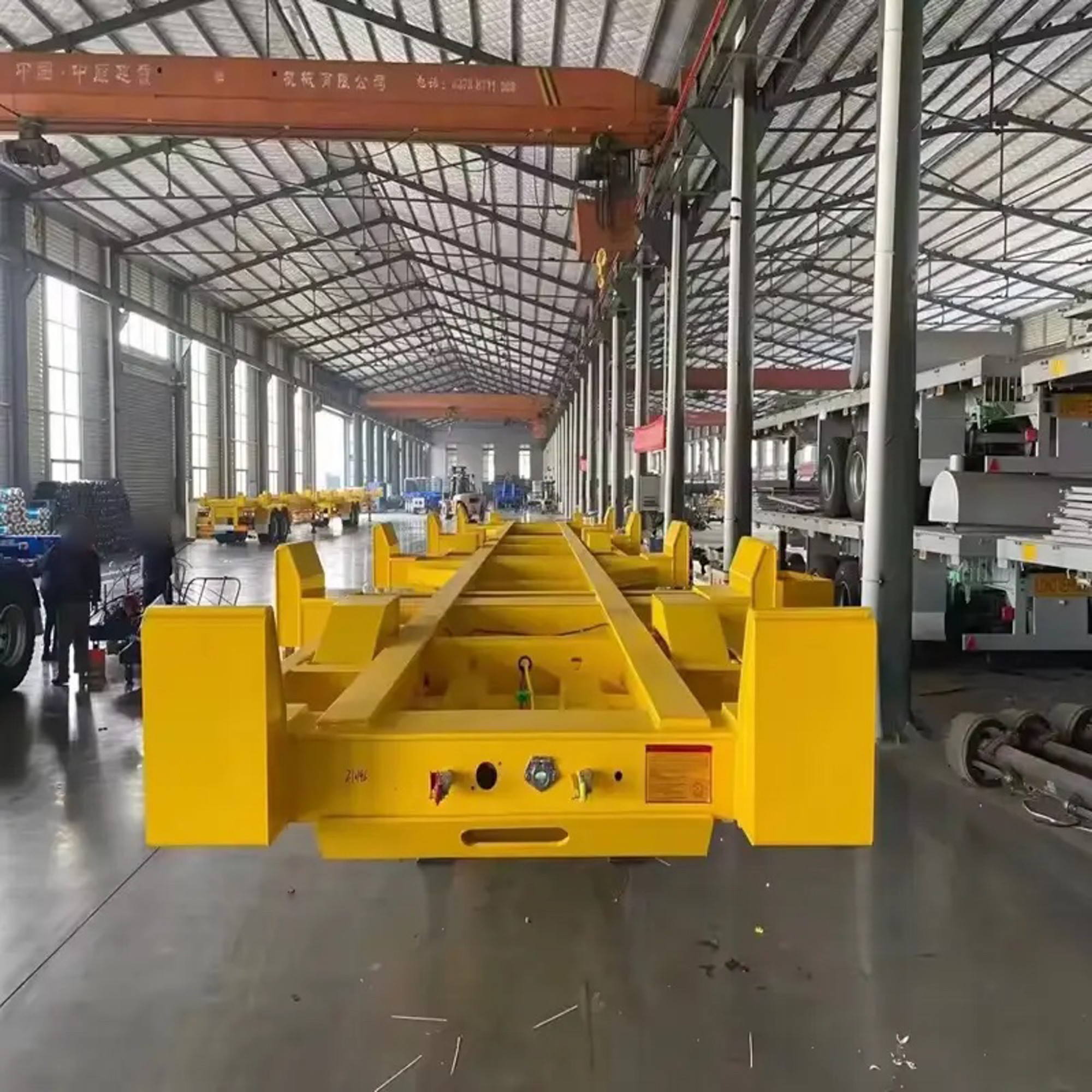

Chassis:
2 x 550 x 140mm mill rolled I-Beam
Flange plate thickness: 16mm
web plate thickness: 10mm
Axles of Suspension System:
Bogie system: 10 holes
Axles: 2
Loading capacity: 16T
Top speed: 25km/h
Cross Beam: 200mm U-Beam
Side Guard Supports: 20mm thick with steel reinforced shaft
King Pin: JOST KZ1012, SAE welded on 12mm skid plate, 1000mm from front face of front bolster

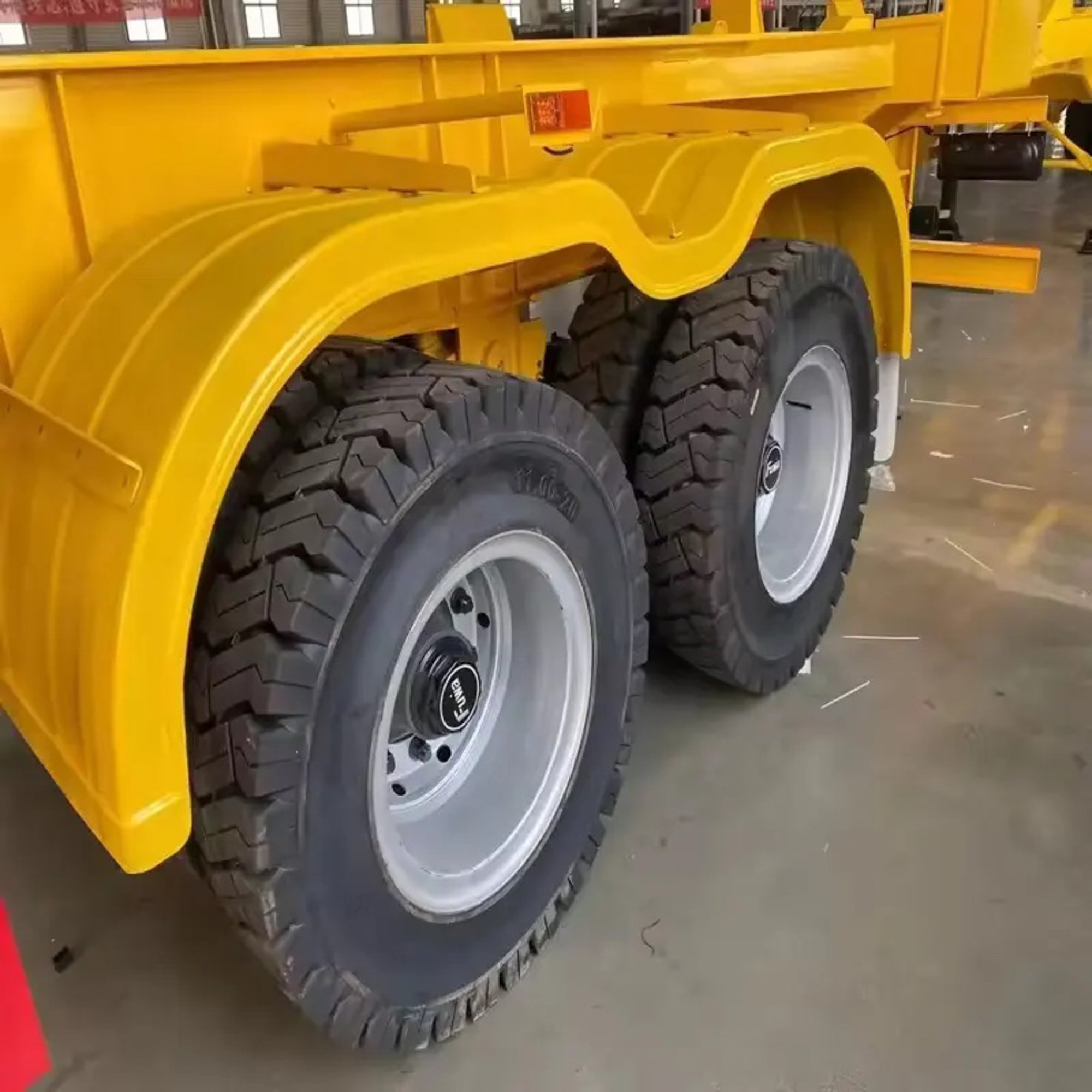

Tyres: 8NO.11.00 - 20
Rims: 8NO.8.0 - 20
Wheel Guard and Mud Flaps: 4 NO.    Rubber wheel guards and 2 No.    mud flaps

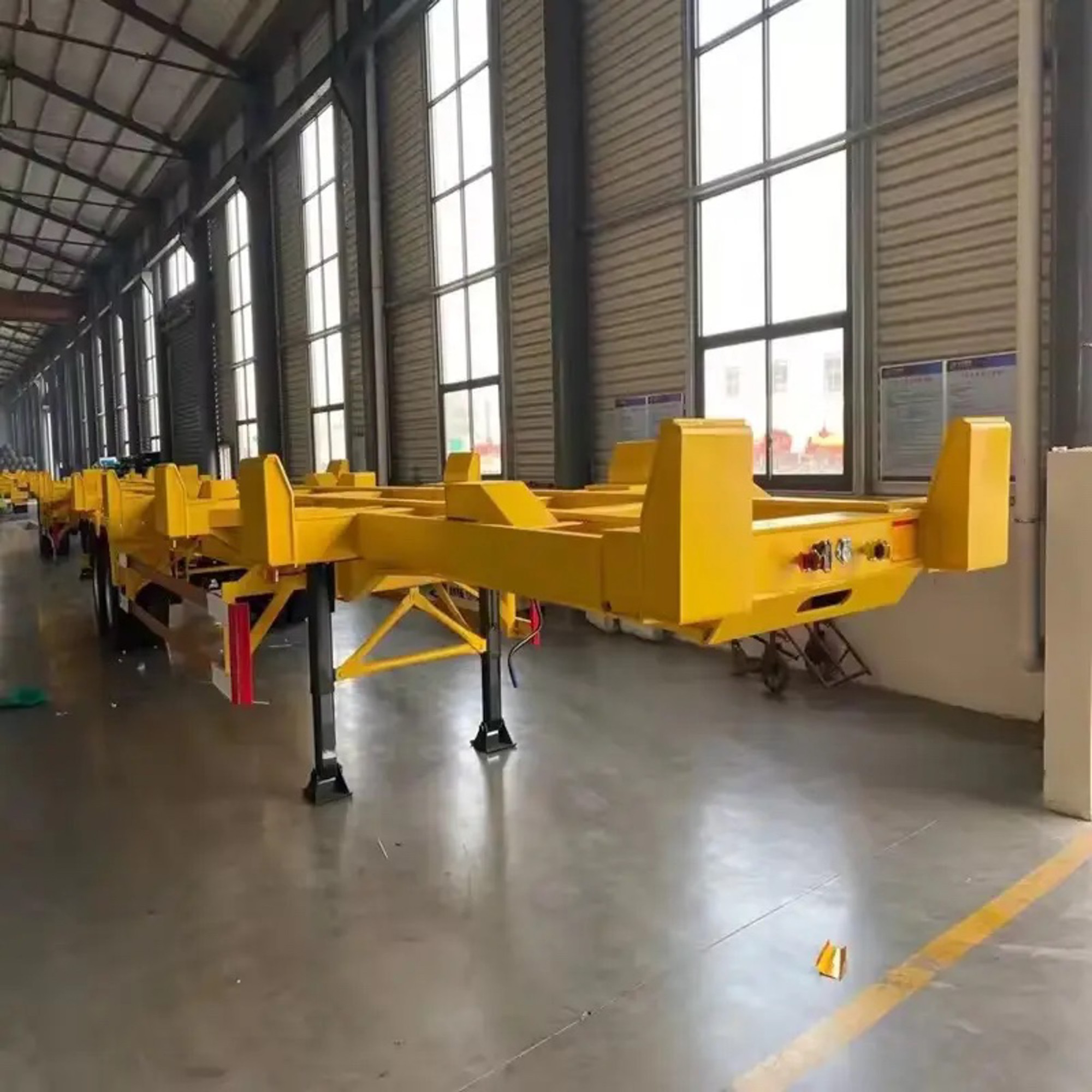

Landing Gear: York retractable legs 2 speed, 19 inches
Electrical System: 24  volts with  7  pin  connector. Comply with European standard.
Painting:
1.Seawater proofed and waxed
2.Shot blasted and painted with 1 layer of Zinc epoxy Primer + 3 layers Alkyd finish top coat
3.Color and marking: RAL1018, Zinc Yellow
Spares: Recommended list provided by SINOTRUCKTRAILER before end of production, all parts available
Warranty: 1 year for the whole trailer except tyres and leaf springs
