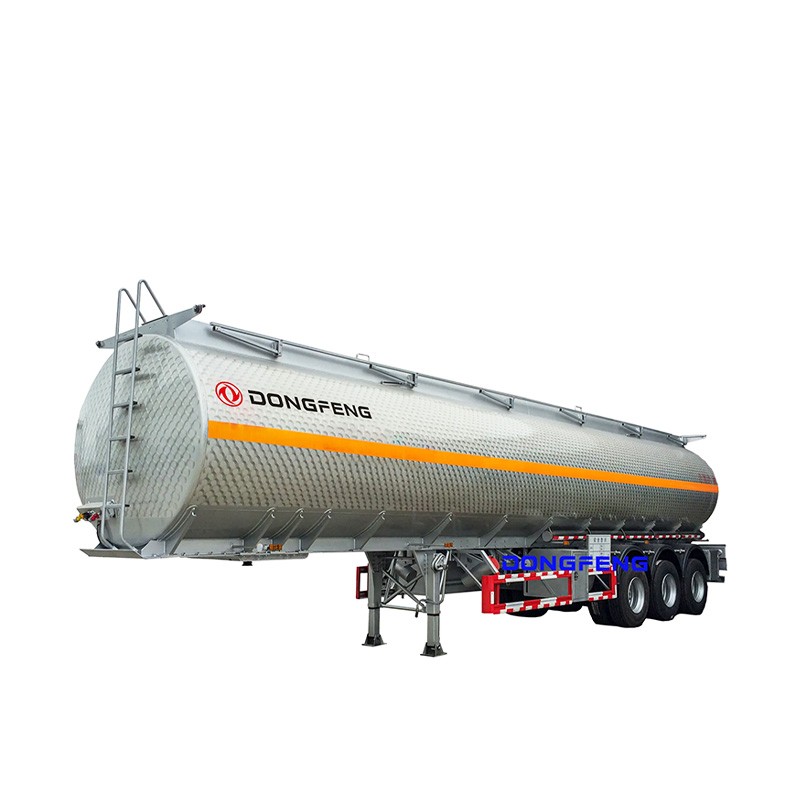

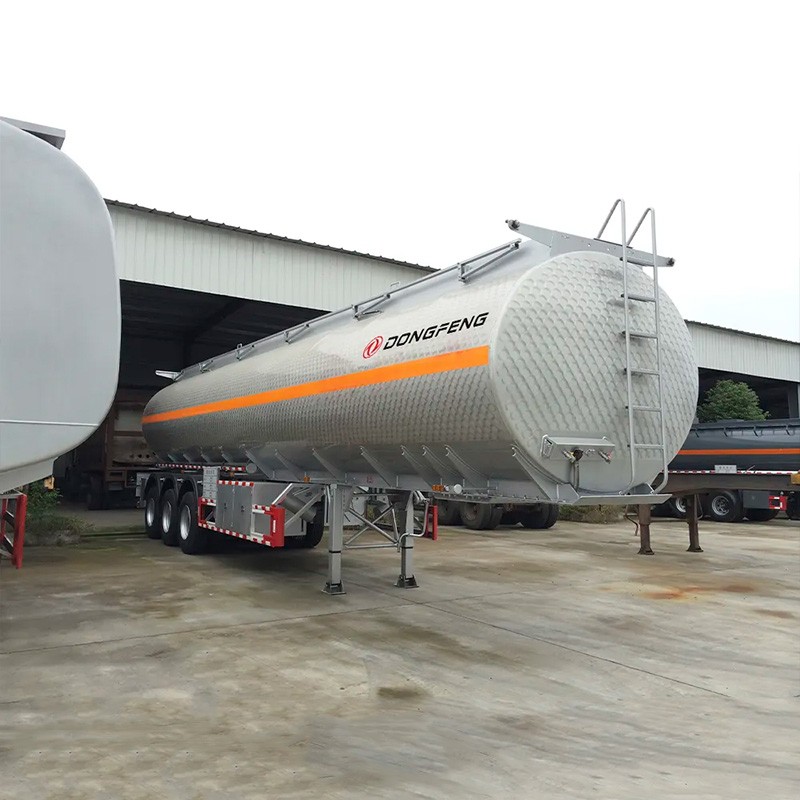

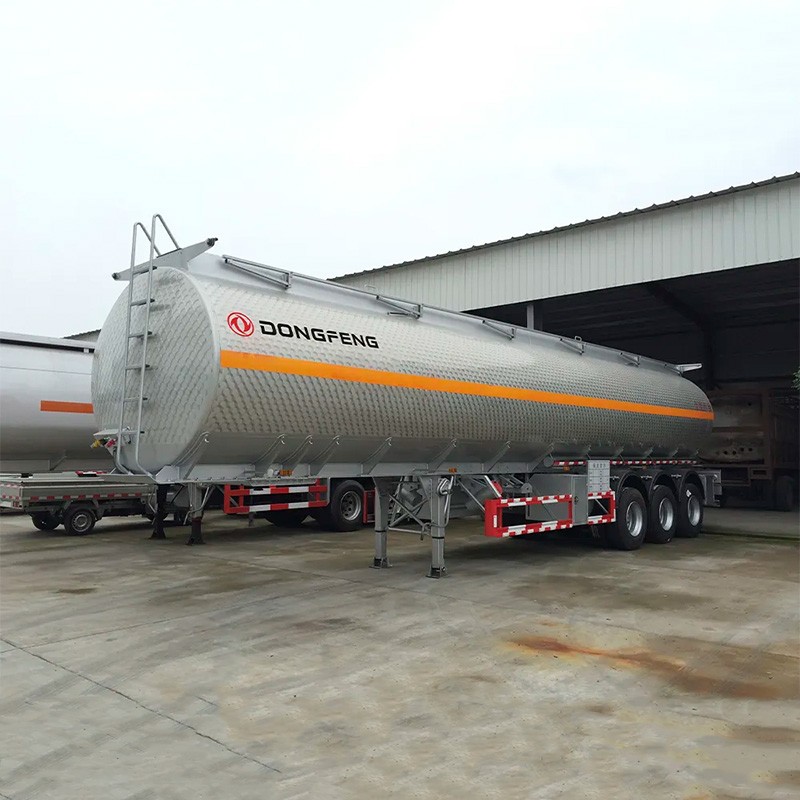

Dongfeng 42000 liter oil tank trailer 304 stainless steel type with API standard loading and discharge fuel tanker

• Price : $10,000.00 - $39,062.00
Vehicle Information
Model: DFT11-40-3S
Dimension: 11620x2500x3750mm
Capacity: 42000 L
Material: Aluminum Steel H5182 (6 mm thick)
Curb Weight: 7250kg
G.V.W: 40000kg
Wheel Base: 5500+1320+1320mm
F/R track base: /1840/1840/1840mm
F/R Axle-load: Brand - FUWA, Unit - 3, Kg - 13000
Suspension: Spring Suspension (Option~ Airbag Suspension)
Approach/Departure angle: /18
Tire Specification:  12.00-20, 12 +1 Unit, with customized model as an option
Kingpin: Model 90# or 50#
Supporting Leg: 28000Kg, FUWA Brand
Electronic Socket: 7 Pin, 24 V
Installed Equipment

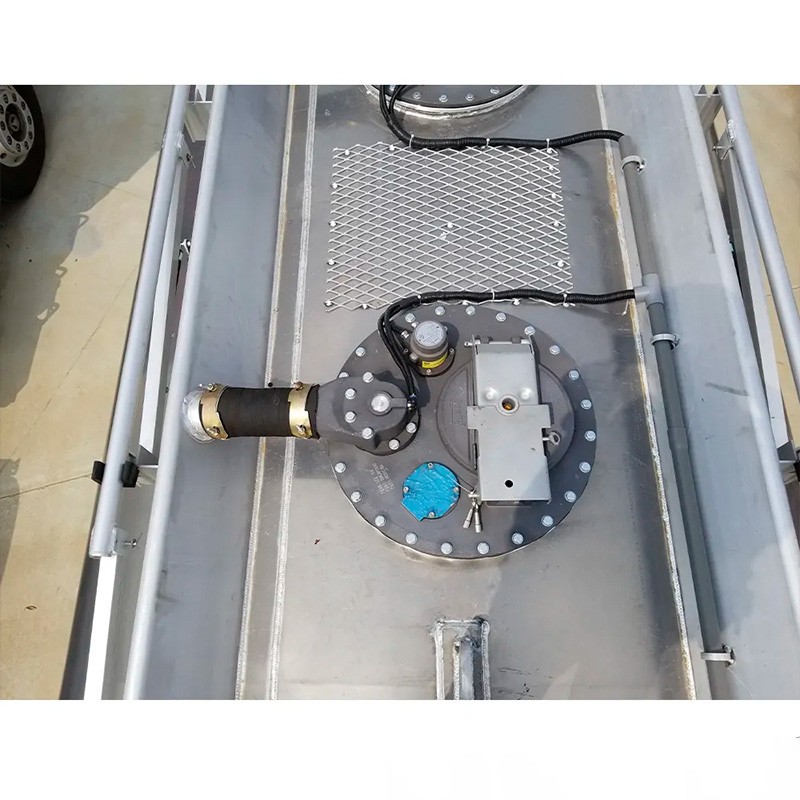

1) Top Human Manhole, Aluminum alloy type, 450mm, 2 Unit.

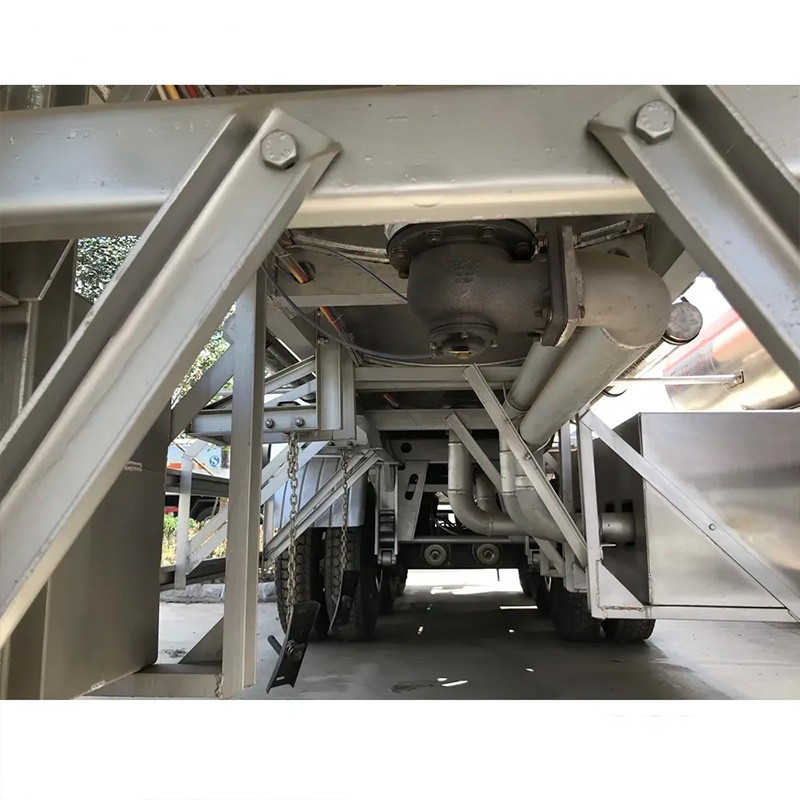

2) Bottom Urgent Cut Off Valve x 2, Aluminum alloy type.
3) Rear climb ladder, Top Human foldable ladder.
4) 2 Unit x 4kg Fire extinguisher, 1 Unit toolbox.

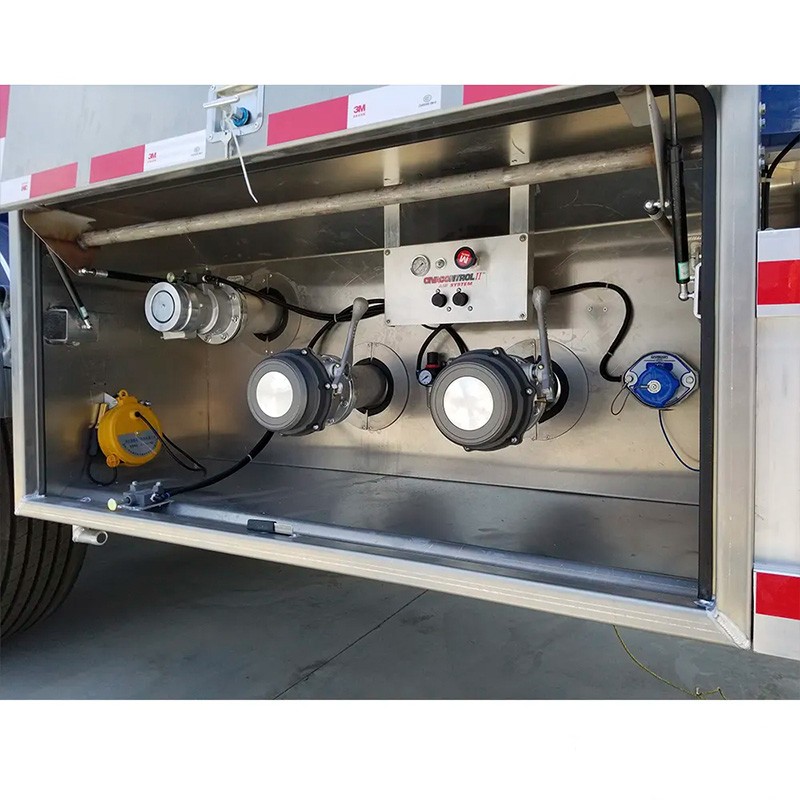

5) One side output and input port with hosing pertection; Output and Input port with API Valve, 2 Unit loading/Discharging Valve, 2 Unit of oil gas recycle Valve; One Compartment; Customized special requirements.
