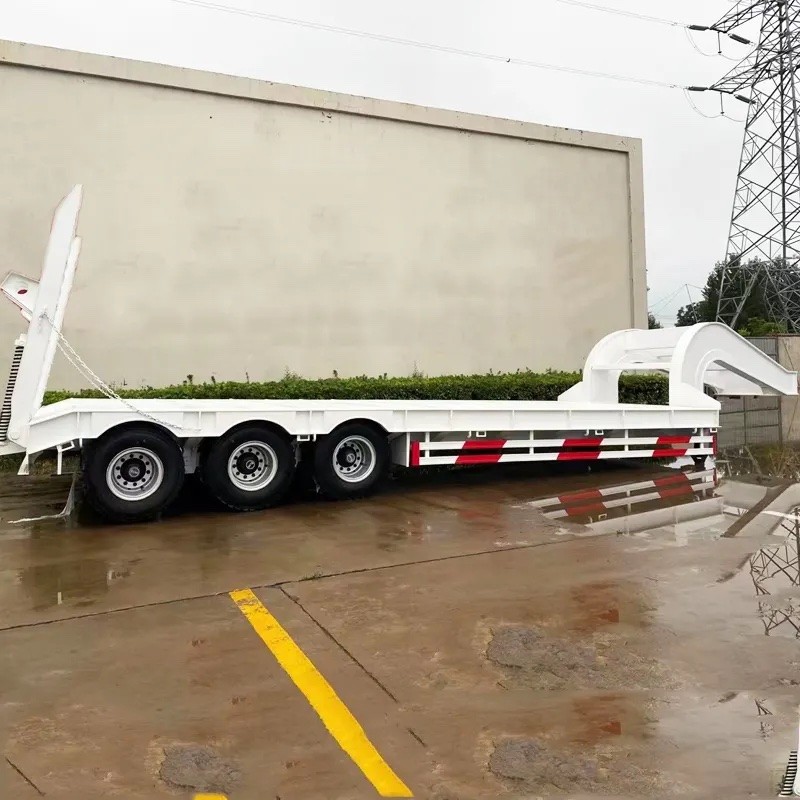

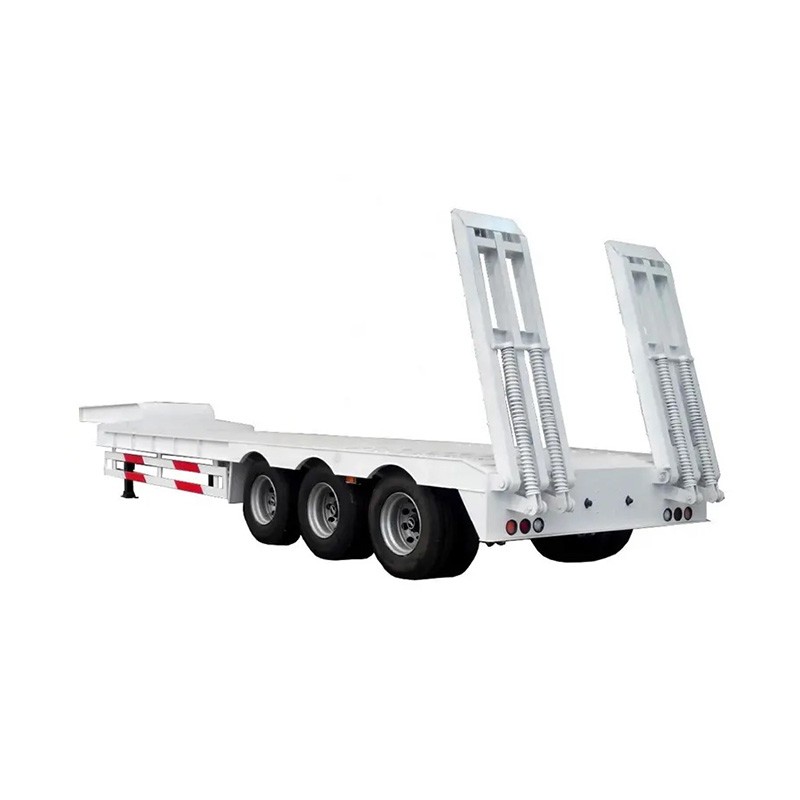

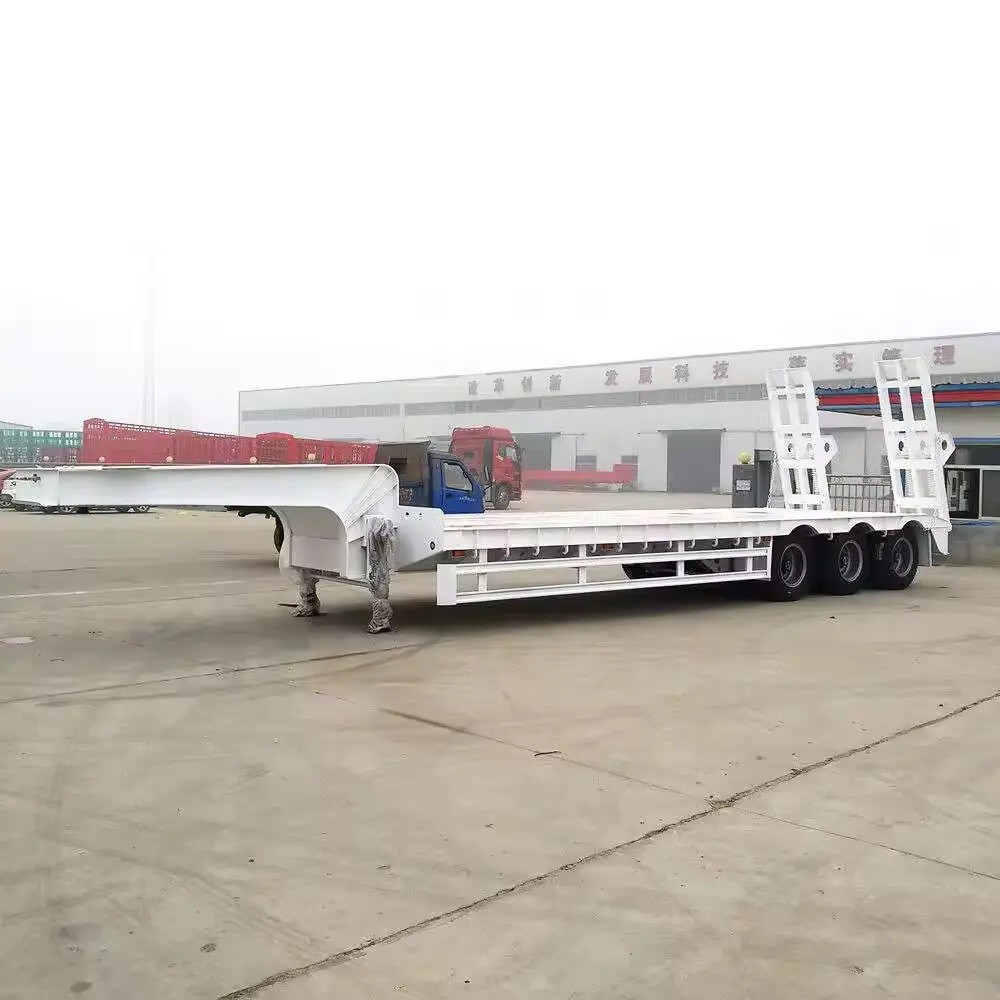

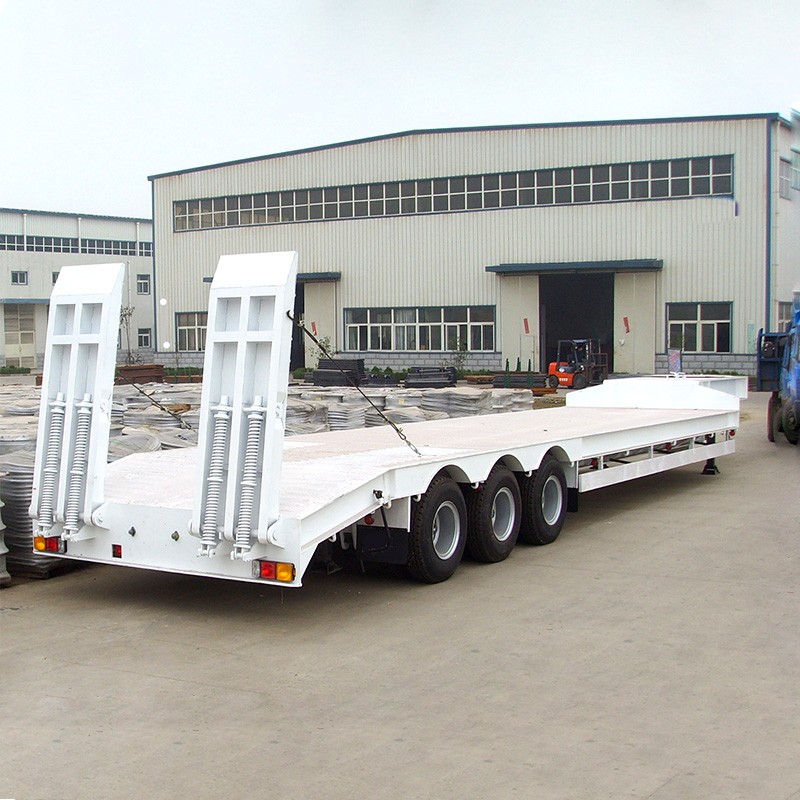

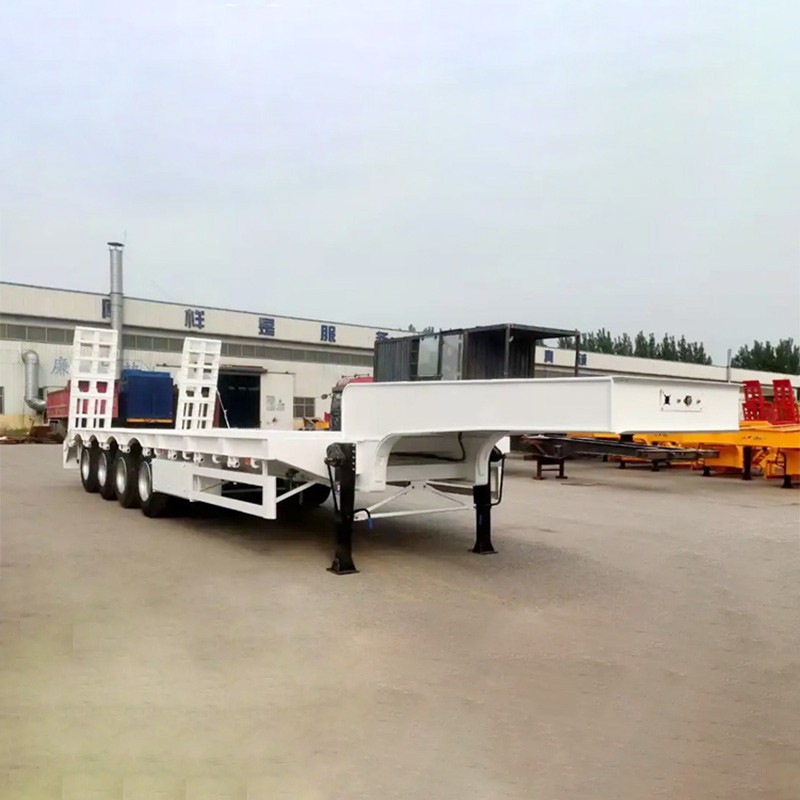

Sinotruk Low Bed 3 axle Semi Trailer

• Price : $30,000.00 - $3,3000.00
Steel:  GB frame with dimensions （16930×3500×1250mm）
Axle: 3 pieces.  14T HO'S(Wheelbase 1360)
Tire: 13 units.  DOUBLE COINS 11.00R-20(One spare set included)
Rim: 13 units.  8.0-20 Domestic Zheng-xing(One spare set included)
Leafspring: 6 units.  Domestic 100 width,10 pieces, 16 thickness, under-slung.
Suspension: 3 units.  SINOTRUCKTRAILE REINFORCED TYPE.
Electrical and air pipeline: For the whole vehicle;  Quick release valve installed.
Landing gear: 2 pairs.  JOST A400 (Linkage);Front landing gear stroke is 19 inches, rear one is 14 inches.
Kingpin 3.5": 1 piece.  Adjustable JOST KZ1016.
I beam: Top flange thickness 20mm, width 250mm;  bottom flange thickness 25mm, width 250mm;  web plate thickness 14mm, height of longitudinal beam is 600mm.
Side beams: 300mm "H" steel.  (the hook for loop welded)
Floor: 6mm checkered plate.
Relay valve: 2 pieces.  WABCO.
Braking chamber: 2 pieces.  Double chamber.
Paint: White paint wax  whole trailer.
Ramp: Width 800MM, 6 MM checkered plate welded and antiskid bar welded.
Packing: Two units bundled as one set.
