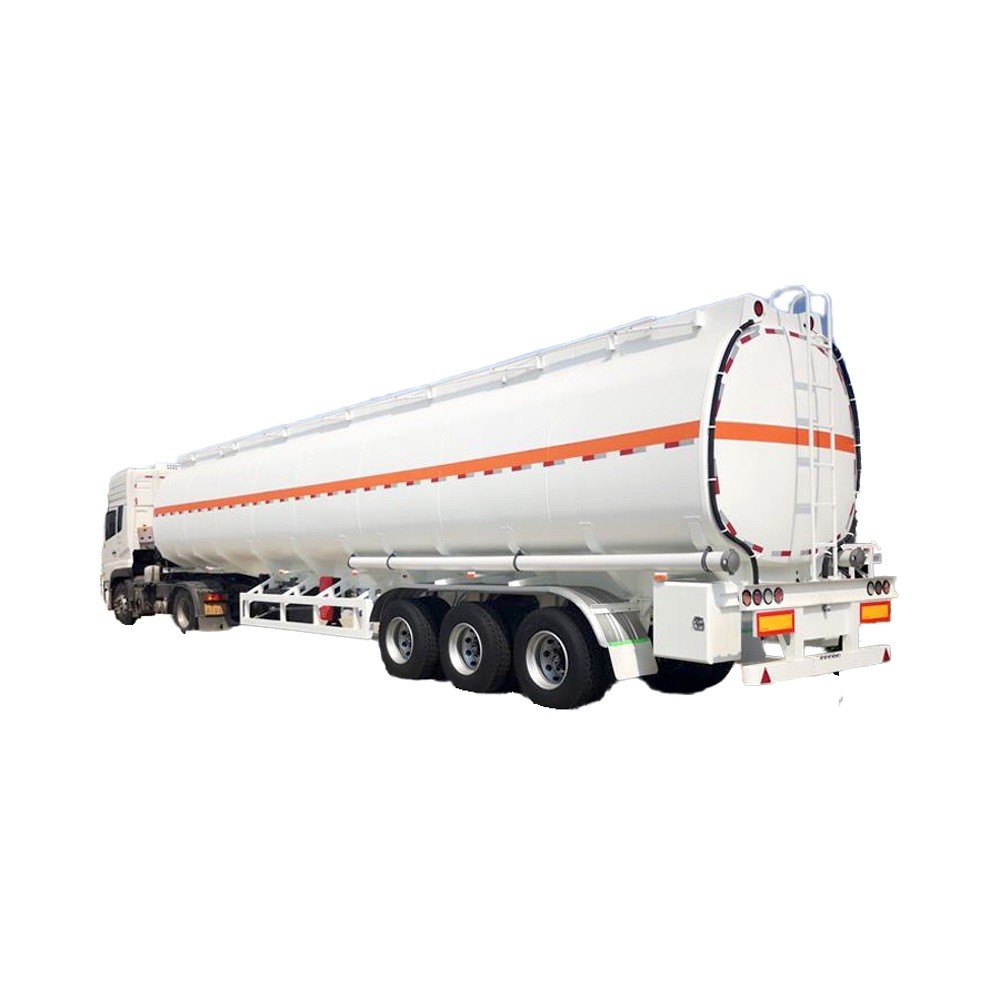

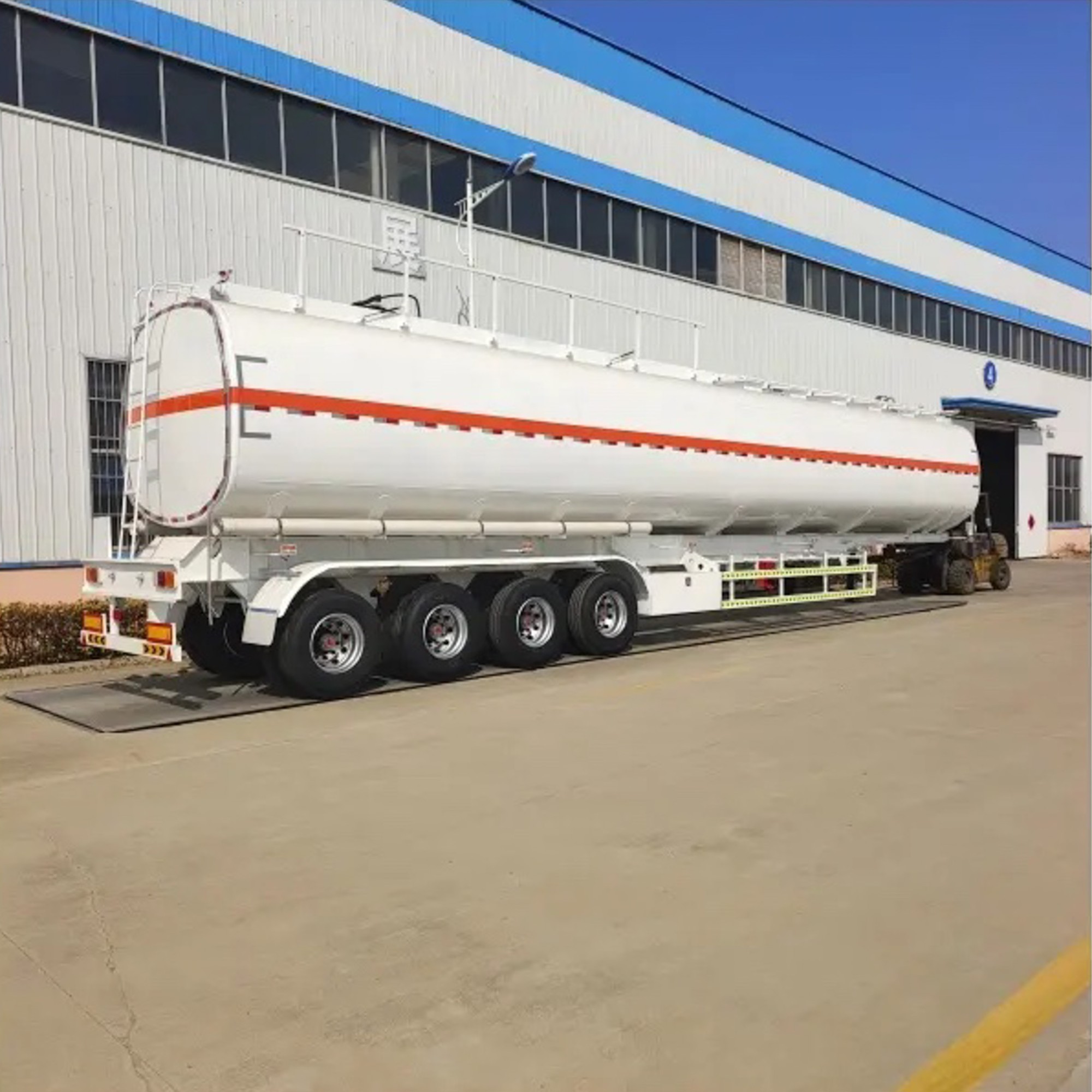

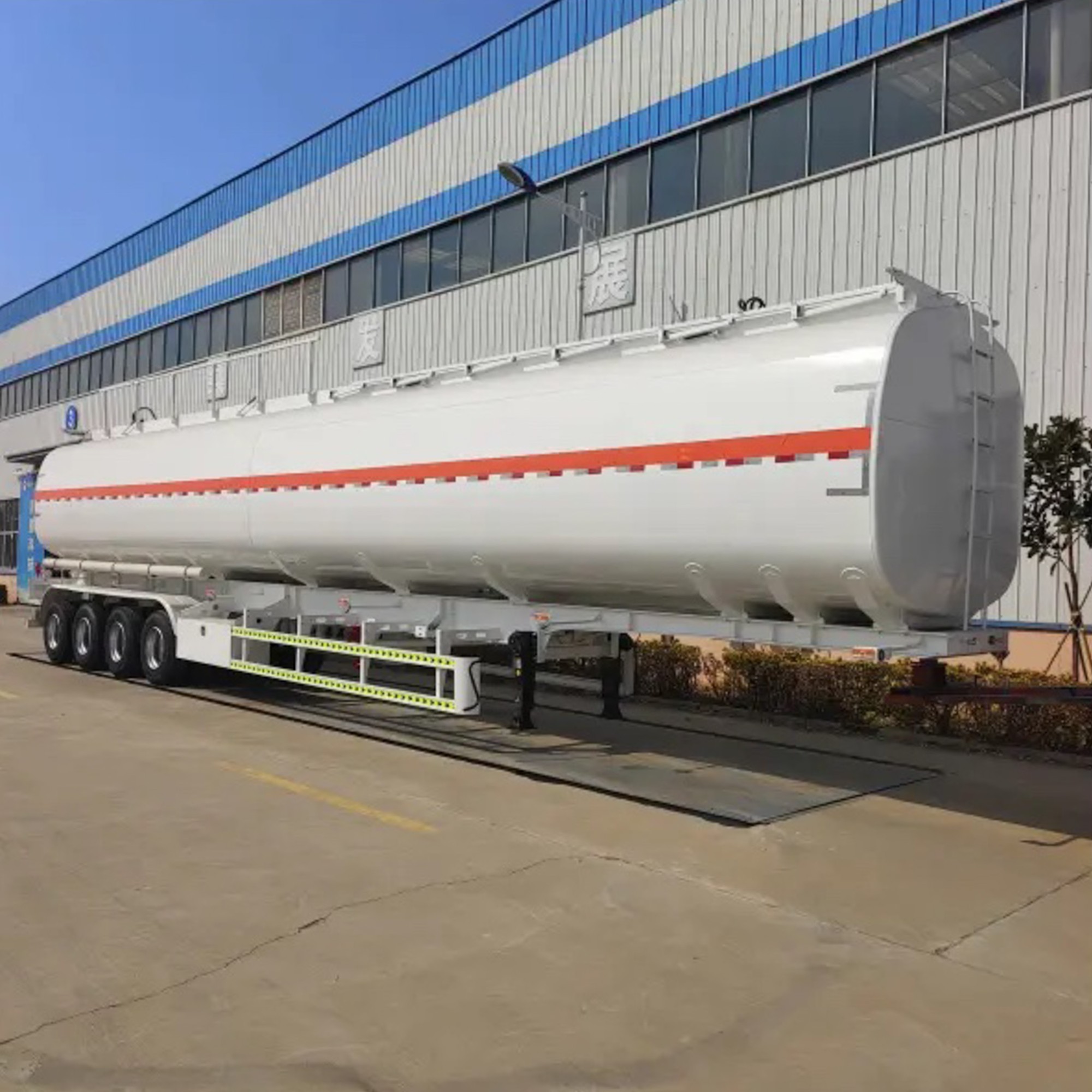

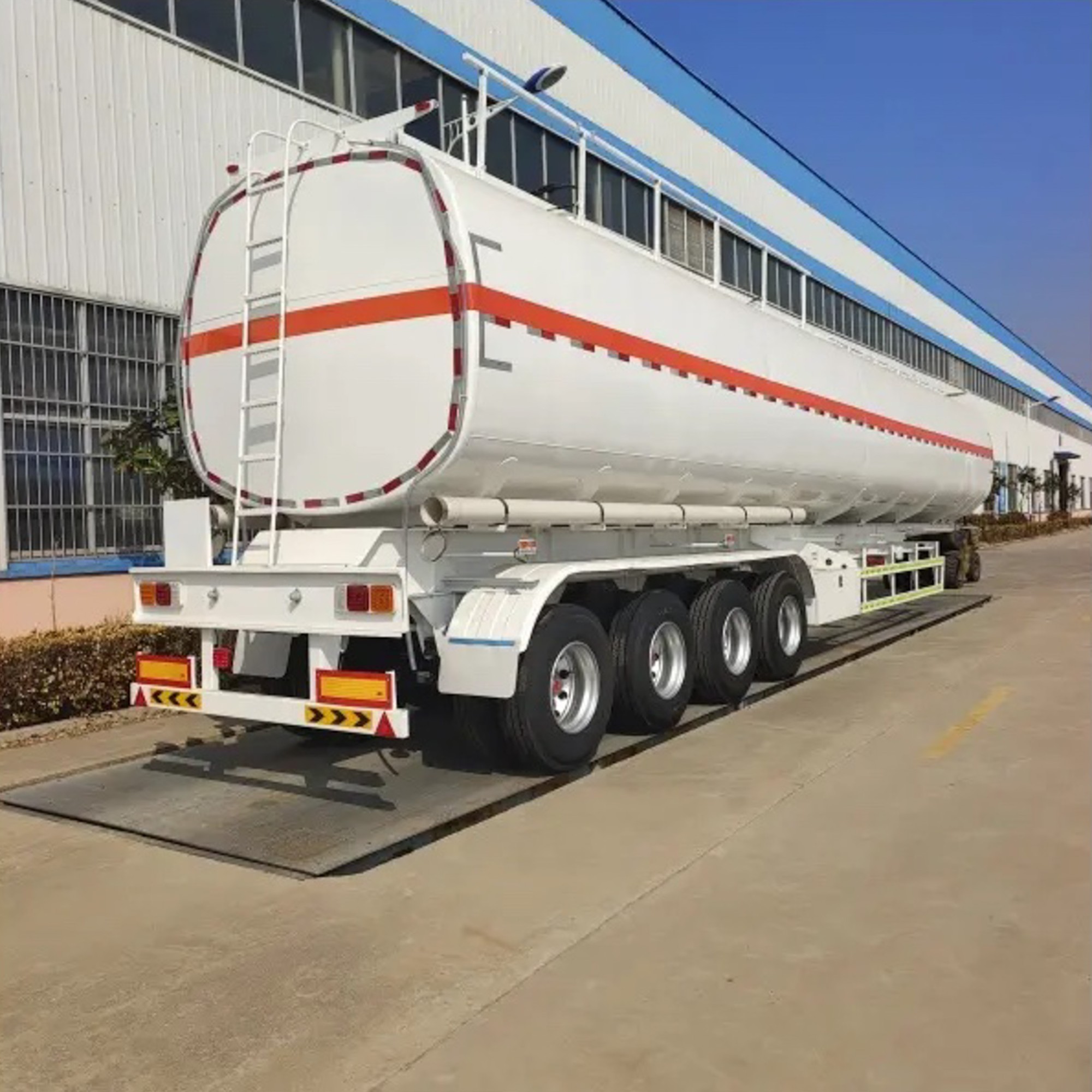

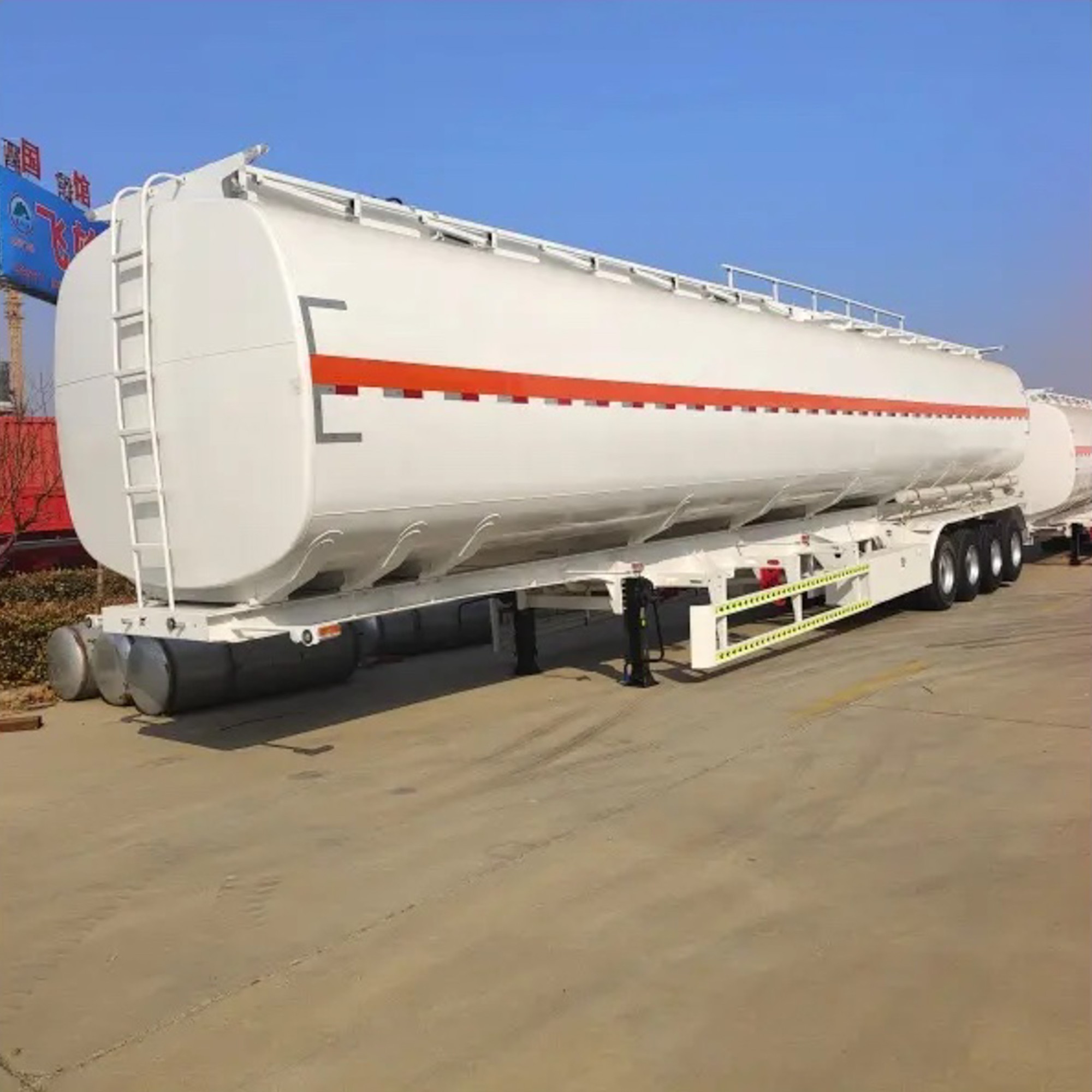

Sinotruk Fuel Tank Semi trailer

Capacity: 70 CBM, 3 independent compartments, available volume 66 CBM, each compartment 22 CBM
Axle: 3 pieces, 16 ton HO’S German Style
Tire: 14 sets, 315/80R22.5
Rim: 14 sets, 9.0 - 22.5
Leaf - spring: 6 sets, Domestic (90width * 10pieces * 13 thickness)
Suspension: 3 sets, SINOTRUCKTRAILER REINFORCED TYPE
Electrical fittings: Whole vehicle with WABCO Relay valve
Landing gear: 1 pair, JOST C200(Linkage)
Discharging Valve: 3 pieces, 4 inch Spherical Valve
Kingpin 2’’: 1 piece, Adjustable(JOST)
Relay valve: 2 pieces, WABCO
Fire extinguisher: 2 pieces, Domestic with canister
Painting color: Frame is red, and the tank body is white
Bottom valve: 3PCS bottom valves conformity with 3 independent compartments
Manhole: 3 PCS with auto - pressure relief valve
Spare wheel carrier: 2 pieces
Remark:
1.  Tanker wall is 6mm thick
2.  Collapsible rail at the top to prevent falling down from top, plus rear ladder
3.  2 pieces of reserve tanks, each one capacity is 500L
