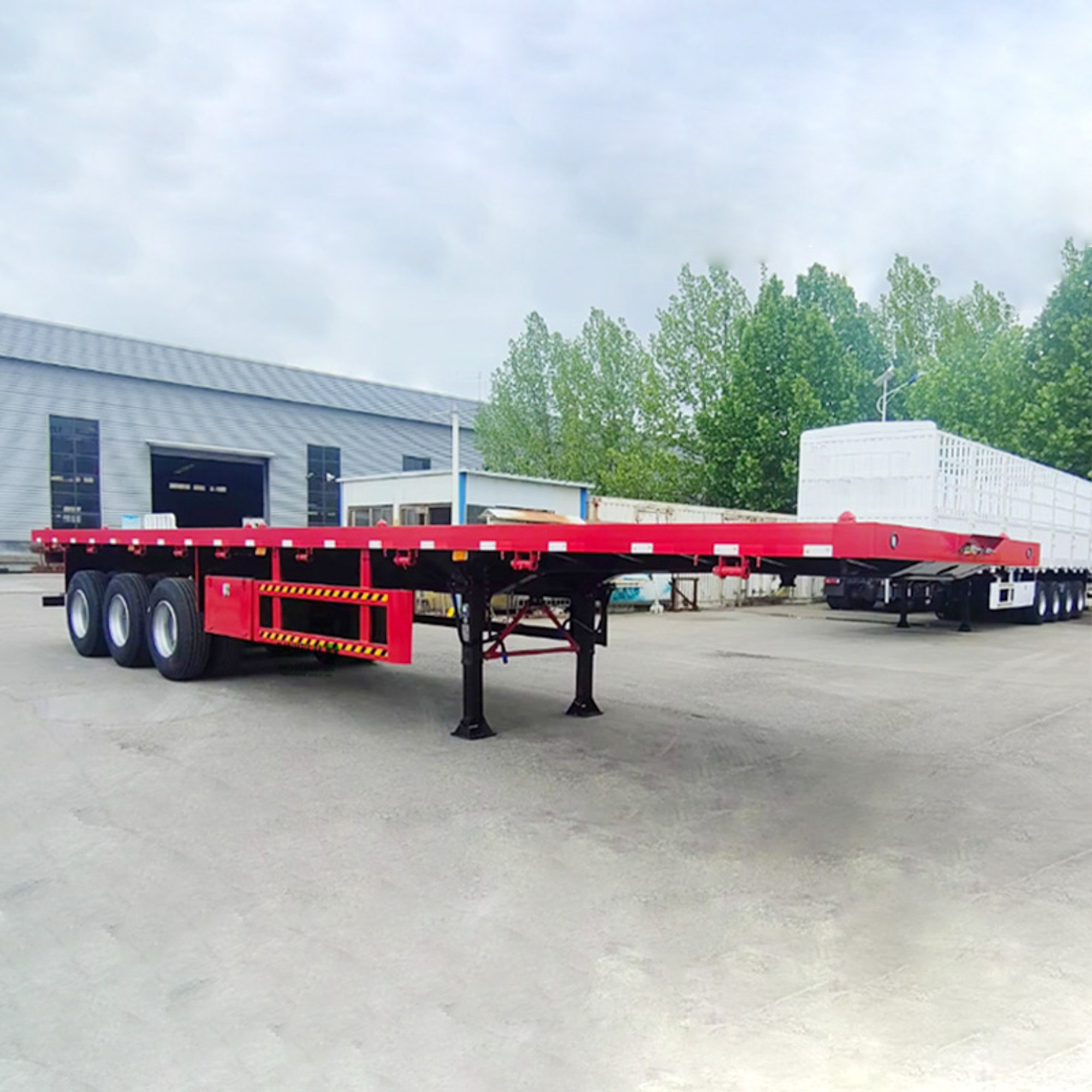

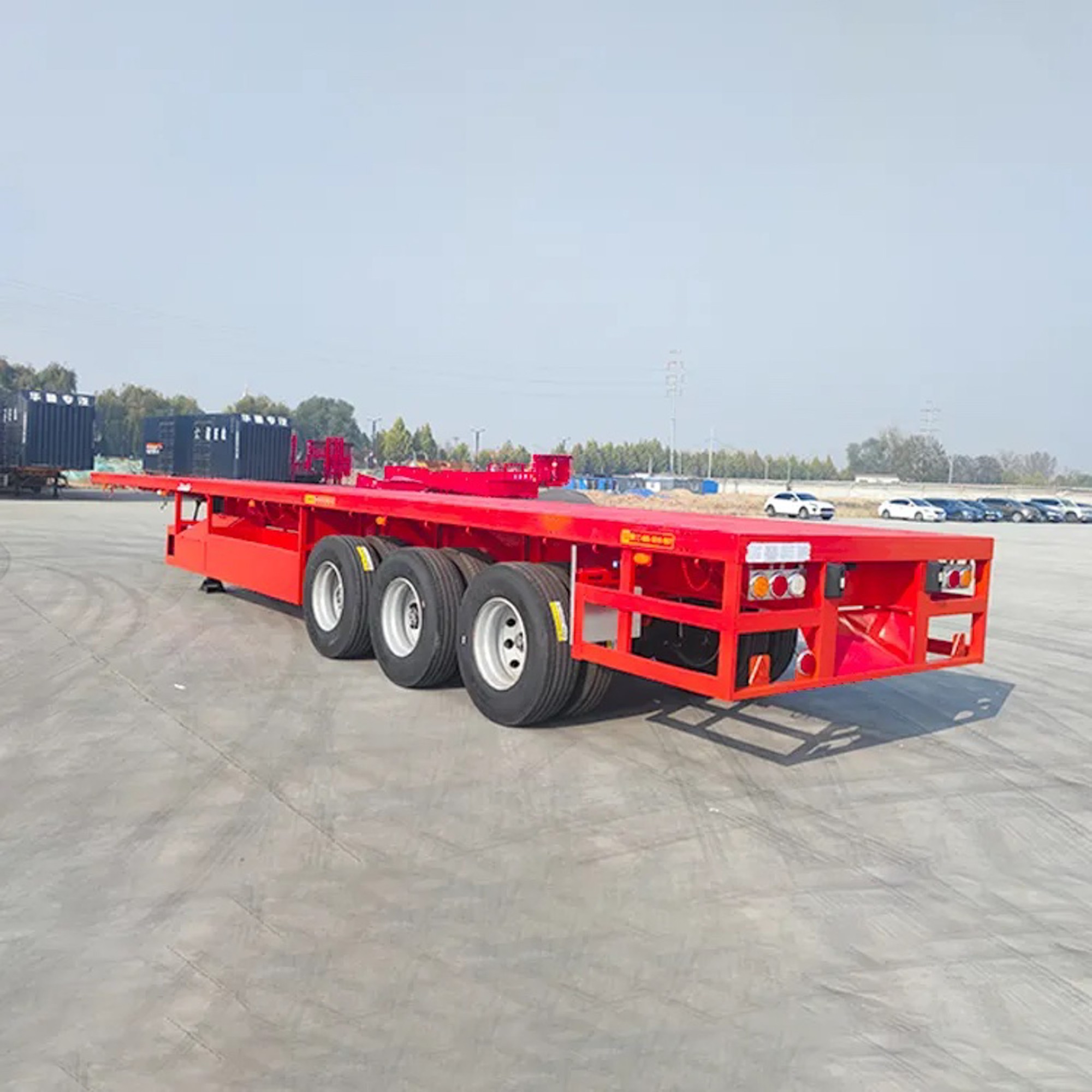

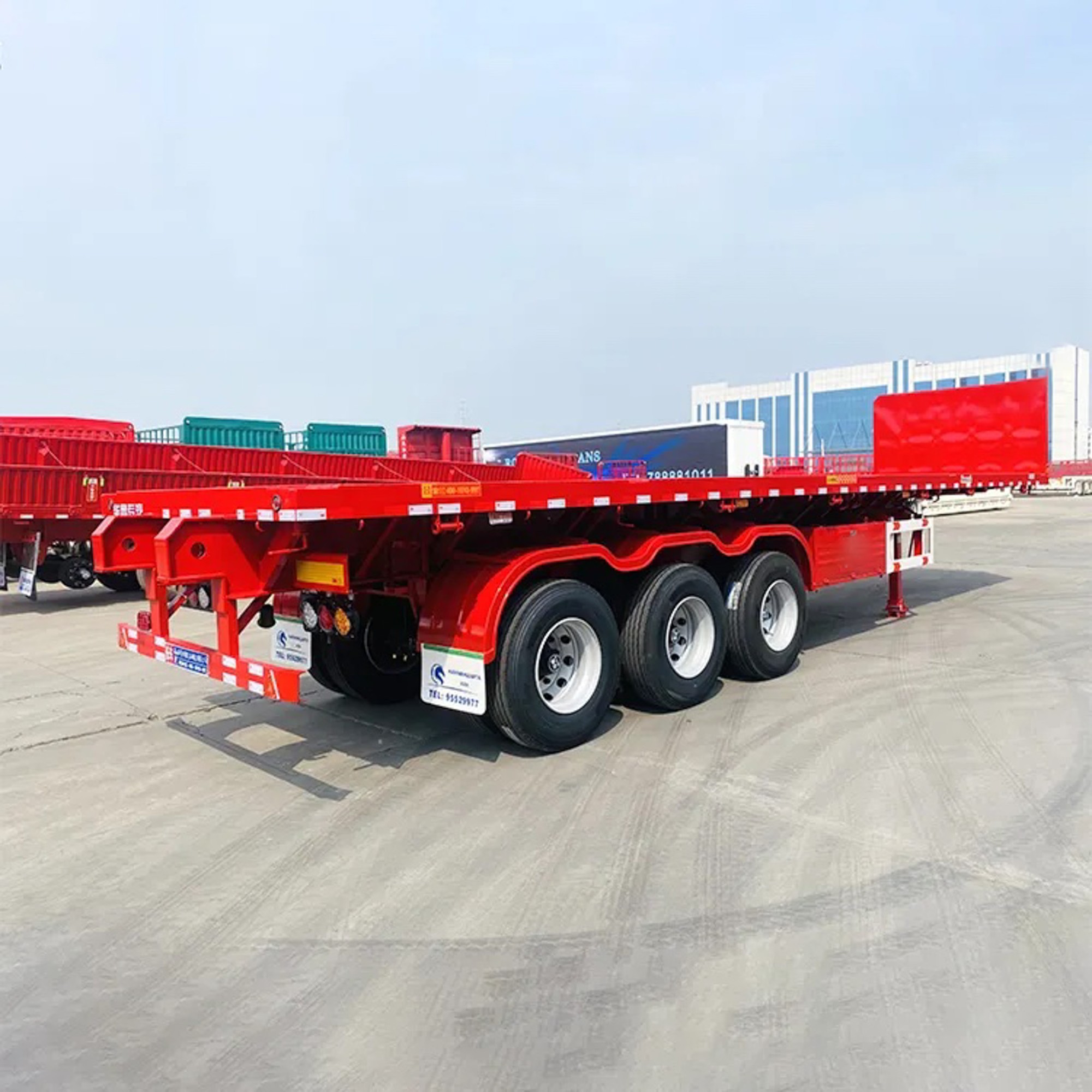

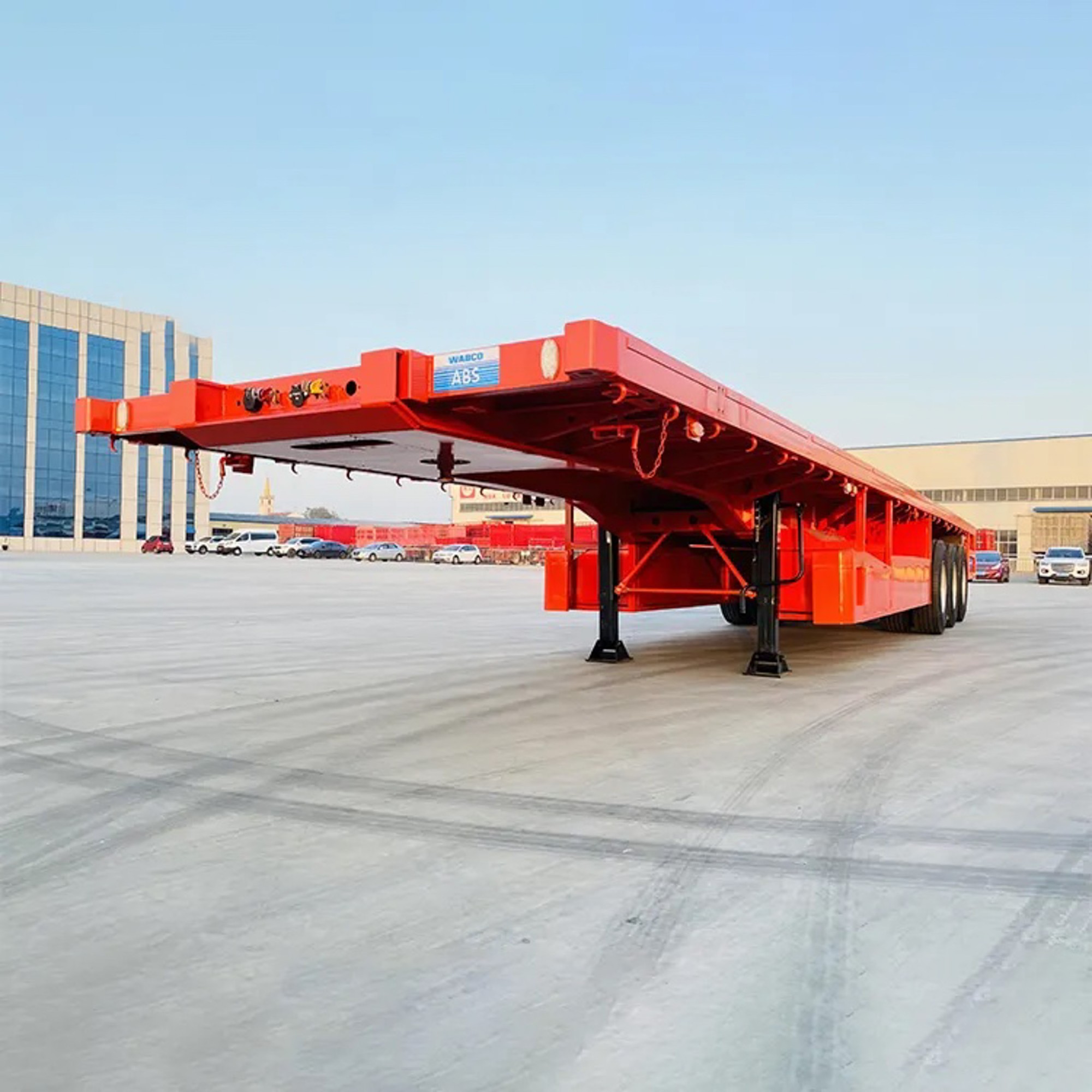

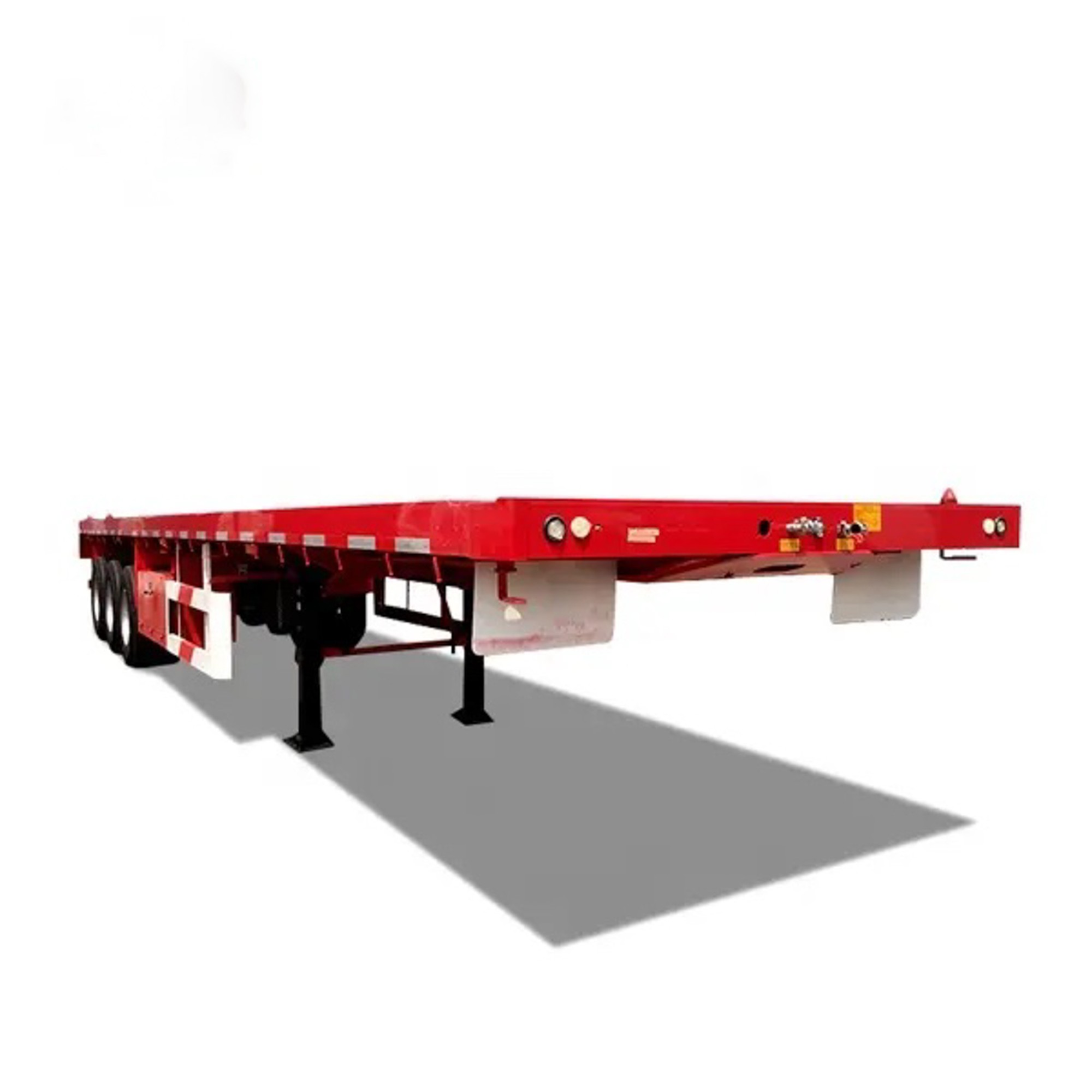

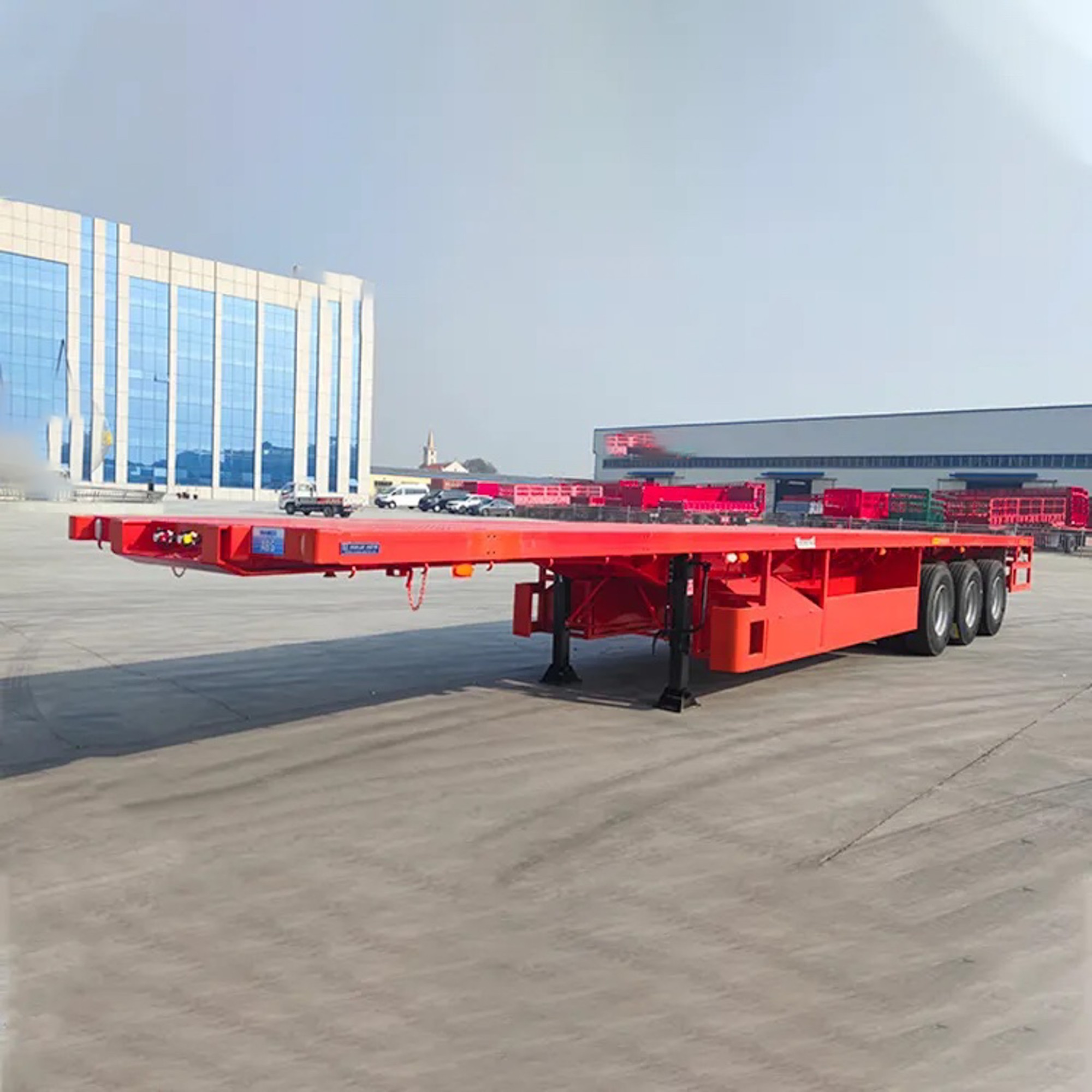

40' Flatbed Semi-trailer with tri-axle

• Price : $15,410.00 - $18,410.00
Dimension & Weight
Length: Approx 12500mm
Width: Approx 2500mm
Height: Approx 1620mm@ unload condition
Height of Loading Platform: Approx 1620mm @ unload condition
King Pin Location: Approx 1400mm from the front face of the front bolster
Wheelbase: Approx 6500mm+1300mm+1300mm
Landing Gear location: 2,450mm behind the king pin location
Fifth wheel (King Pin) Height: Approx 1,300mm with the chassis level
(Some of the above dimension will be adjusted according to the tractor specification.)
Weight
Tare Weight (Tolerance 0~-4%): Approx 7,200 kg
Max.  Payload: Approx 32,800kg
Gross Vehicle Weight: Approx 40,000kg
Steel Structure
Material: Q345 Mn steel plate;    with 345 MPa yield strength is used for welded I-beam and (Q235) with 235MPa yield strength is used for other fabricated parts.
Main Beams: 500mm deep x 140mm wide x 6mm web welded I-section main beams, the thickness of top flange is 14mm;    the bottom flange is 16mm.
The platform floor: 3mm checked floor.
OEM Parts Configuration
King Pin:  KZ1412, JOST, 3.5’’ Made in China,
Locks: 8 units ISO retractable Twist Locks, Screw type twist locks are optional
Landing Gear: JOST C200, linkage, 28T;
Suspension: Mechanical suspension with leaf spring (90mm *16mm*8 Pieces, Made in China)
Axle: Three axles, HO’S brand, 13,000kg class, made in China.
Tires: 12.00R22.5， Made in China
Brake System: Dual air brake system, Made in China, none ABS
Braking Chambers: Type 30 on the first axle, type 30/30 on the rear two axles.
Electrical System: 24 volt lighting system, Chinese Standard
Front mark light: white
Side mark lamp: amber
Rear lamp: white;
Others
Spare Tire & Carrier: Without spare tire, 2 PCS Spare tire carrier,
Side Guard: None steel standard
Tool Box: Equipped one set,
Painting: color by customer’s requirement.
Marking:  SINOTRUCKTRAILER standard.
