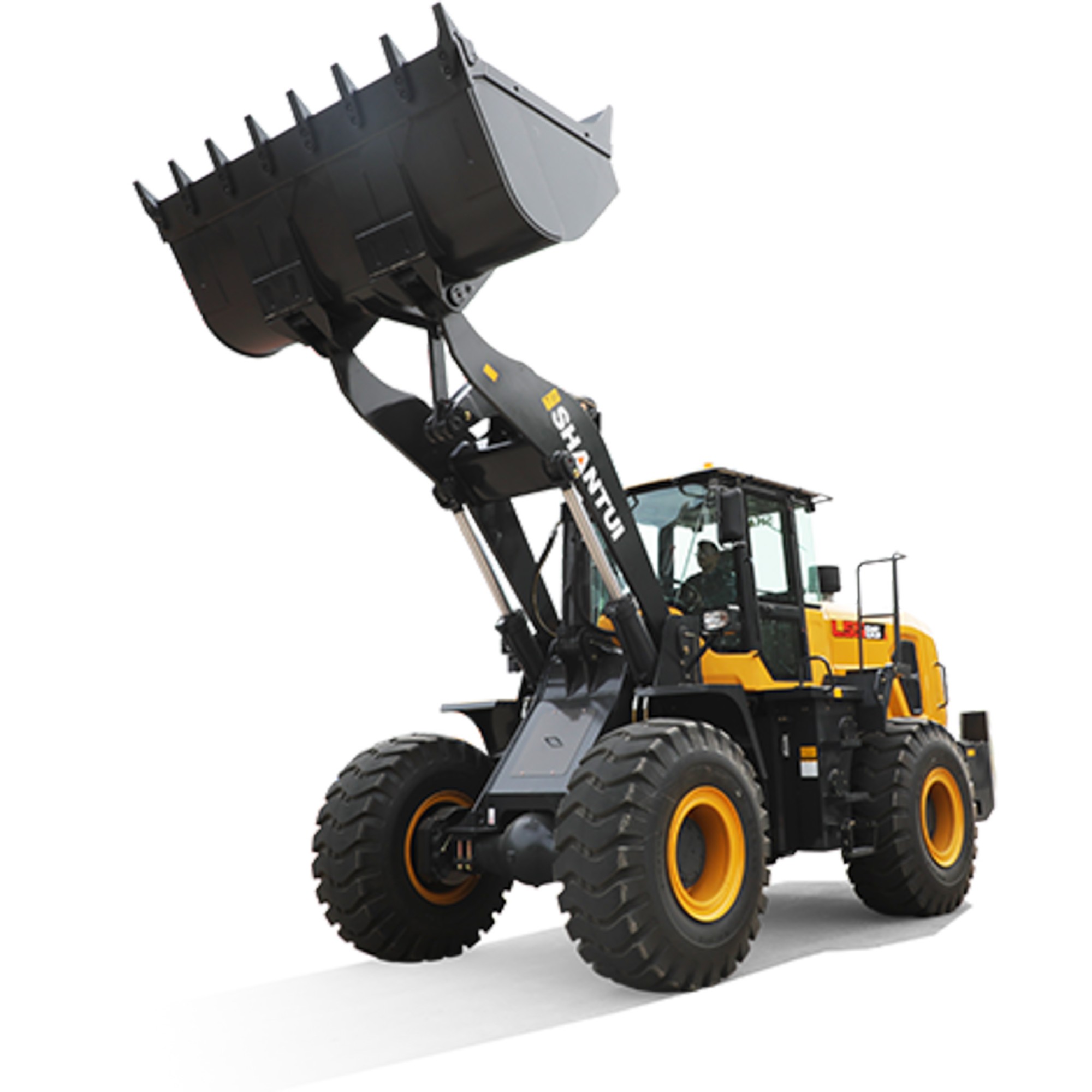

Shantui L55-B5 5Ton Wheel Loader

• Price : $48,571.00
Engine:
Emission: Tier 2/Stage ll
Model: Weichai WD10G220E23
Rated Power: 162 kW(220 hp)@2,000 rpm
Max Torque: 900N·m
Displacement: 9.726L
Number of Cylinders: 6
Loader Arm Performance:
Tipping Load - Full Turn: 10000kg
Bucket Breakout Force: 170kN
Maximum Dump Angle at Full Height: 45°
Dump Clearance at Full Height Discharge: 3050mm
Dump Reach at Full Height Discharge: 1120mm
Maximum Hinge Pin Height: 4100mm
Maximum Digging Depth, Bucket Level: 30 mm
Bucket Capacity: 3m³
Operating Weight: 17100kg
Transmission:
Transmission Type: Planetary, power shift
Torque Converter: Single stage, four elements
Maximum Travel Speed, fwd: 40km/h
Maximum Travel Speed, rev: 15km/h
Number of Speeds, fwd: 2
Number of Speeds, rev: 1
Axles:
Differential Front Type: Conventional
Differential Rear Type: Conventional
Axle Oscillation: ±12°
Steering:
Steering Configuration: Articulated
Steering System Pressure: 16 Mpa
Brakes:
Service Brake Type: Caliper disc brake
Service Brake Actuation: Air over Hydraulic
Parking Brake Type: Flexible shaft control
Parking Brake Actuation: Mechanical
Tires:
Tire Size: 23.5 - 25 - 16PR
Hydraulic System:
Main Pump Type: Gear
Main Relief Pressure: 18 Mpa
Raise time: 5.5S
Total Cycle Time: 10.5S
Service Capacity:
Fuel Tank: 300L
Hydraulic oil Tank: 170L
Engine Oil: 21L
Axles, each: 29X2L
Transmission: 45L
Cooling System: 65kg
Dimensions:
Length: 8220 mm
Width: 3066mm
Height: 3450mm
Wheelbase: 3250mm
Wheel Tread: 2238 mm
Ground Clearance: 440mm
Turn Angle, Either Side: 35°
Turning Radius, Outside of Tire: 6626mm
Turning Radius, Center of Tire: 6326mm
Turning Radius, Bucket Carry: 7200mm.
