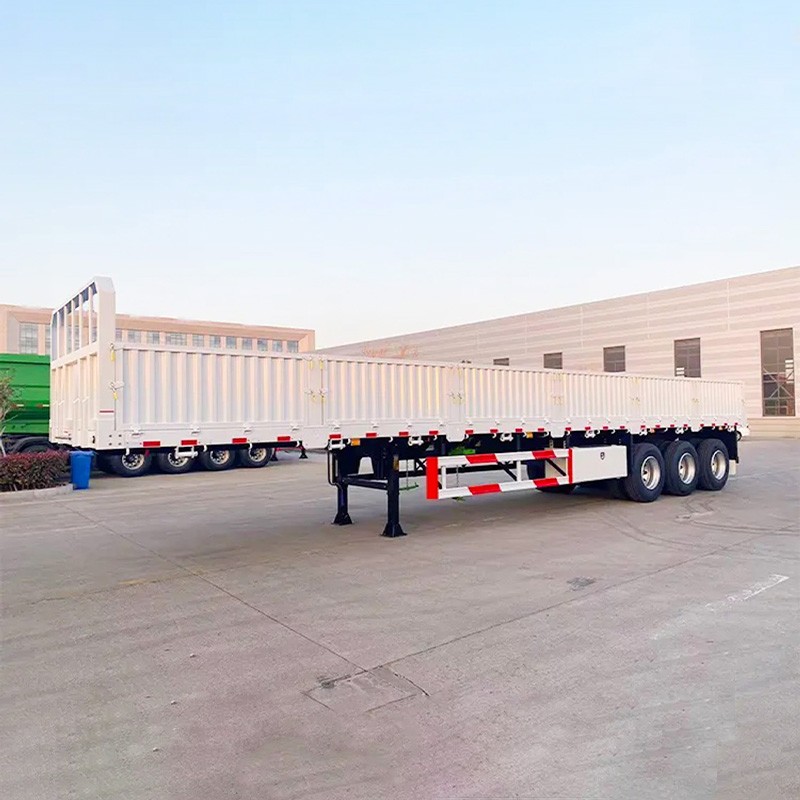

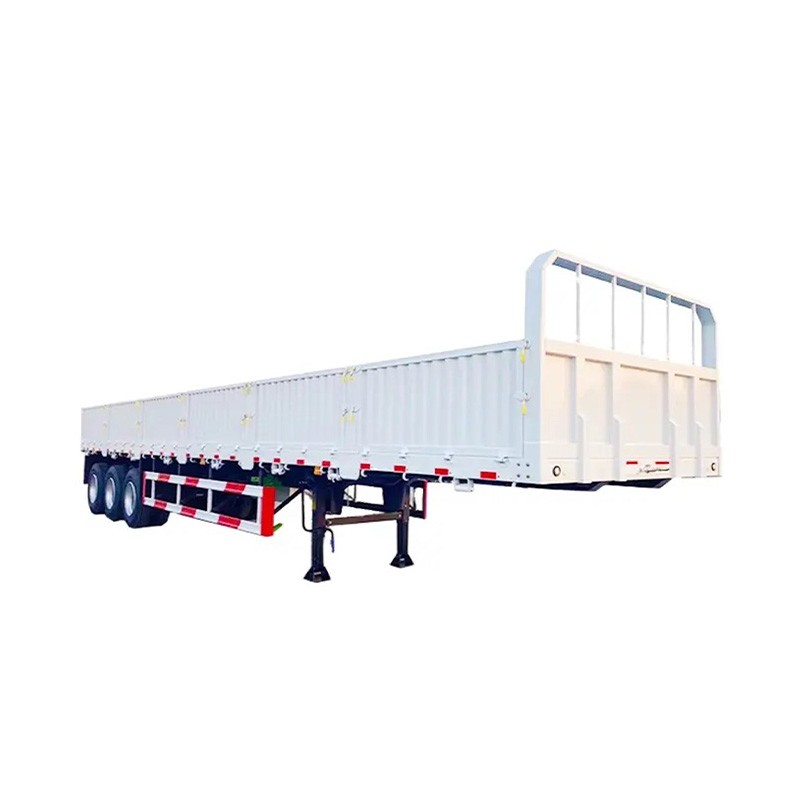

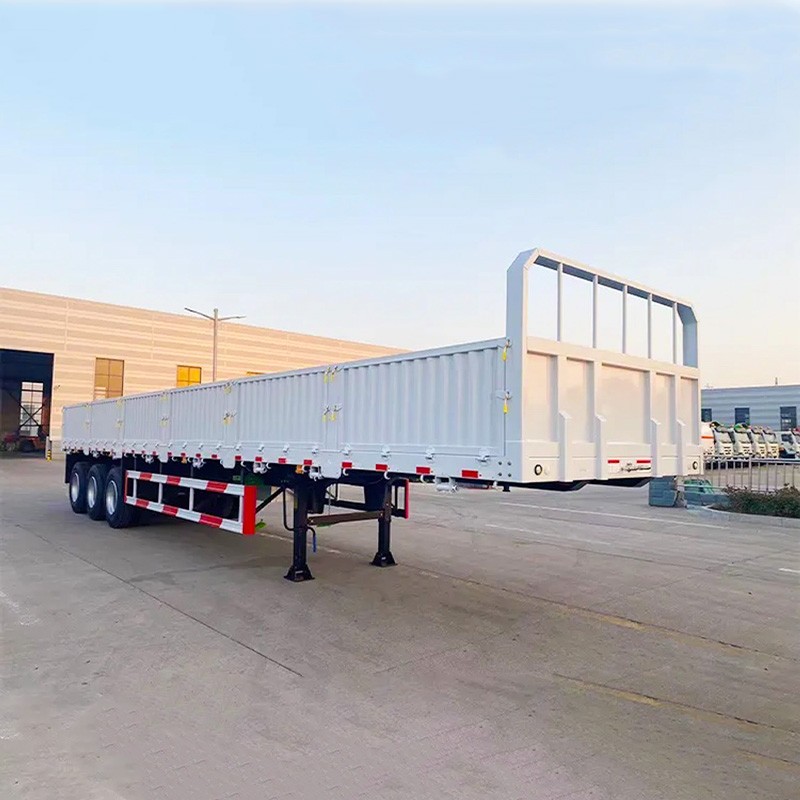

40’Platform Semi-trailer with Side Wall Panel

SPECIFICATIONS:
40’Platform Semi-trailer with Side Wall Panel (Normal Mechanical Suspension)
Dimension & Weight:
Overall Dimension: 12740mm (Length) x 2640mm (Width) x H3mm (Height)
Frame Dimension: 12590mm (L) x 2580mm (W) x H2 mm (H)
Side Wall Inner Dimension: 12500mm (L) x 2460mm (W) x 600mm (H)
Front Overhang: 1325mm
Landing Leg Setting: 2920mm
Wheelbase: 7900 + 1300mm
King Pin Plate Height: H1mm
Front Fitting Radius: 1,600mm
Rear Tractor Clearance Radius: 2300mm
◆ H1, H2, H3 according to the fifth wheel height of tractor
WEIGHT:
Tare weight: Approx 6500kg (excluding spare wheels & tarpaulin)
Payload: 32000kg
G.V.W.R: 38500kg
Kingpin Weight: 13500kg
Axle Weight: 25000kg

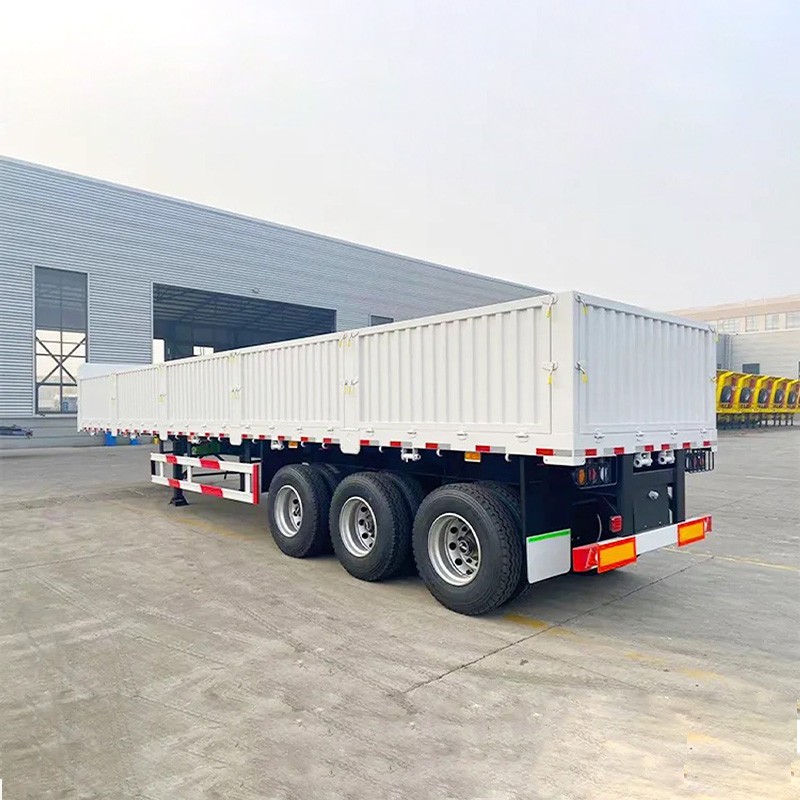

RUNNING GEAR:
Suspension: Normal Mechanical Suspension;     Assembled with frame.
Axle: FUHUA 16T axle×2
Rim: 9.0 - 22.5, 10 holes steel Disc Wheel, 8 PCS.     (without spare rims), made in China.
Tire: 12R22.5.     8 PCS (without spare tires), triangle brand tire.
Kingpin: JOST, KZ1412, bolted type.
Locks: 8 sets twist locks, all are retractable type.     (Screw type is optional.)

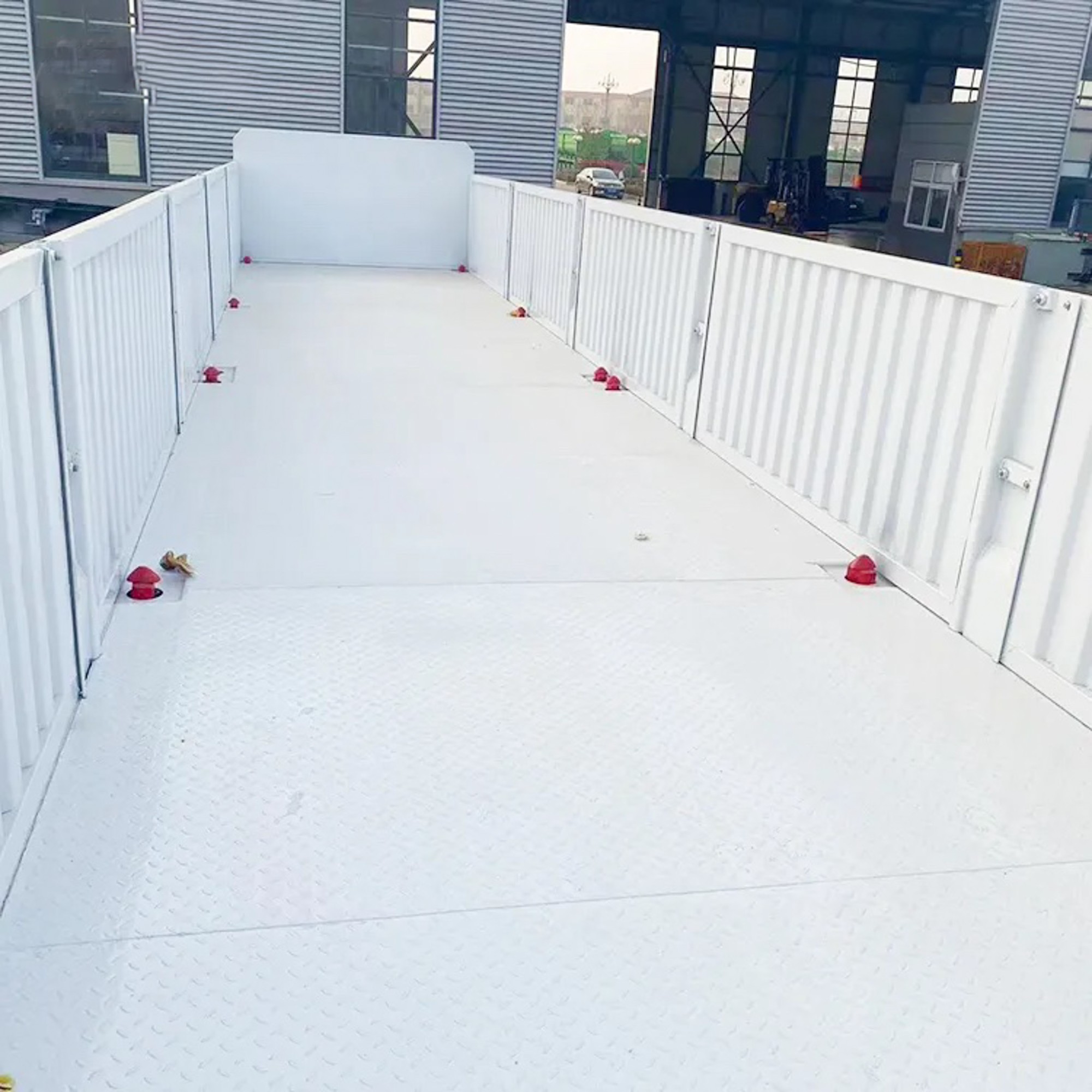

Floor: 3 mm thickness checkered plate.
Side wall panels: See drawing;   1 mm thickness, front wall height is 1350mm.     side and rear wall height is 600mm, without tarpaulin bar.
BRAKE SYSTEM:
Brake: Dual line pneumatic brake system.     Haldex brake valve, without ABS.
Brake Chamber: Type 30/30 spring loaded brake chamber on front axle;     Type 30 air brake chamber on rear axle.
ELECTRICAL SYSTEM:
Voltage: 24Volt.
Receptacle: 7 ways.
Front Marker Lamp: White
Side Flasher Lamp: Amber
Side Marker Lamp: Amber
Rear Lamp: Red
Turn Signal Lamp: Amber

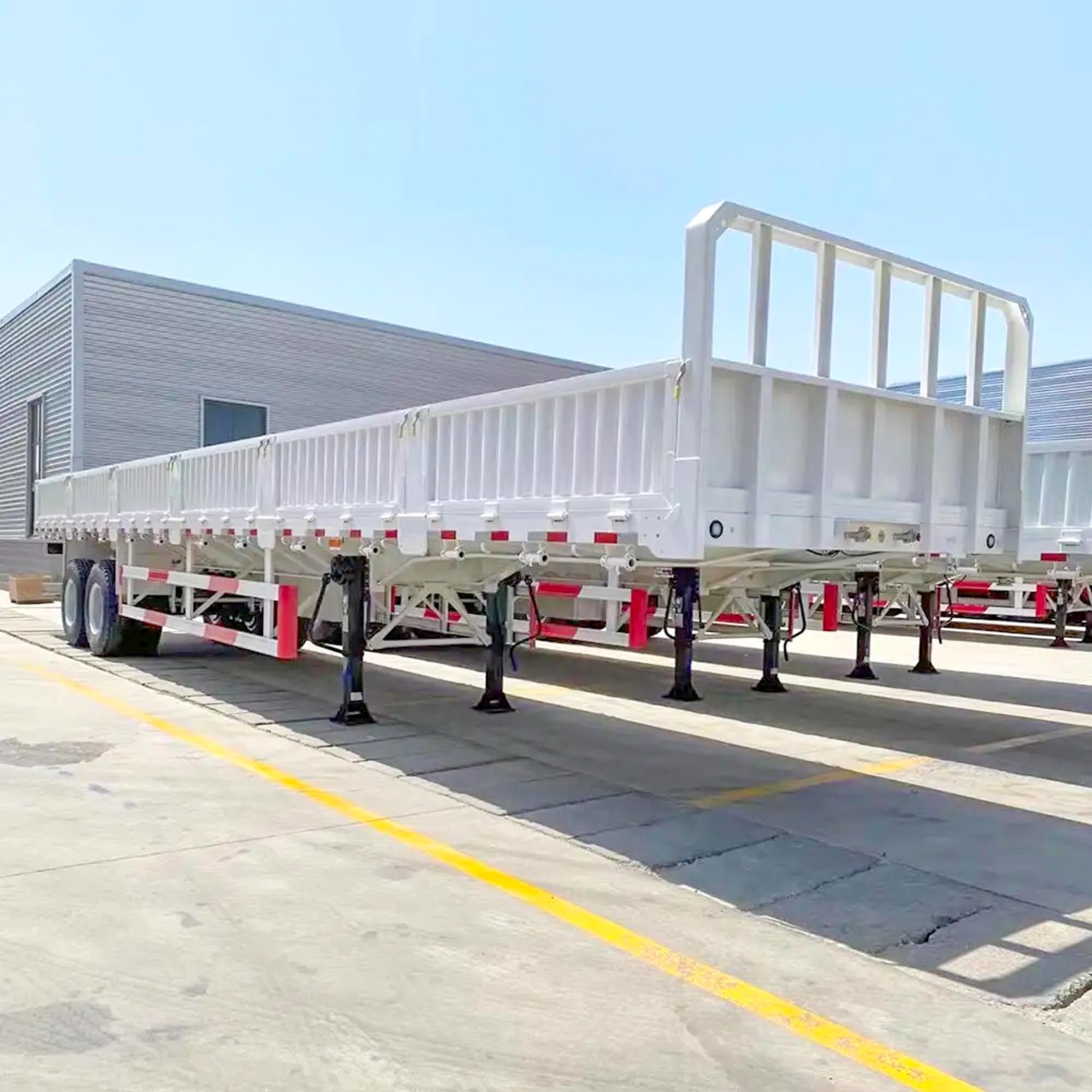

LANDING LEG:
Leg: Two speed manual operation type with sand shoe;     right handle.
Leg Model: JOSTC200.
Rated Capacity: Static 50T, Lifting 24T.
PAINTING & MARKING:
Color: Comply with the customers’ request
Painting: Comply with Export request.
Marking: STT standard, Comply with Chinese Standards
Others:
Side Guard: None.
Toolbox: 1 PCS (800cm Length)
Fuel tanks: should be Optional
Water tank: should be Optional
Spare tire carriers: 2 PCS.
The maximum load of this semitrailer is 32000kg.  And that must be equally distributed on the platform.
The side wall must be removed while load container.
