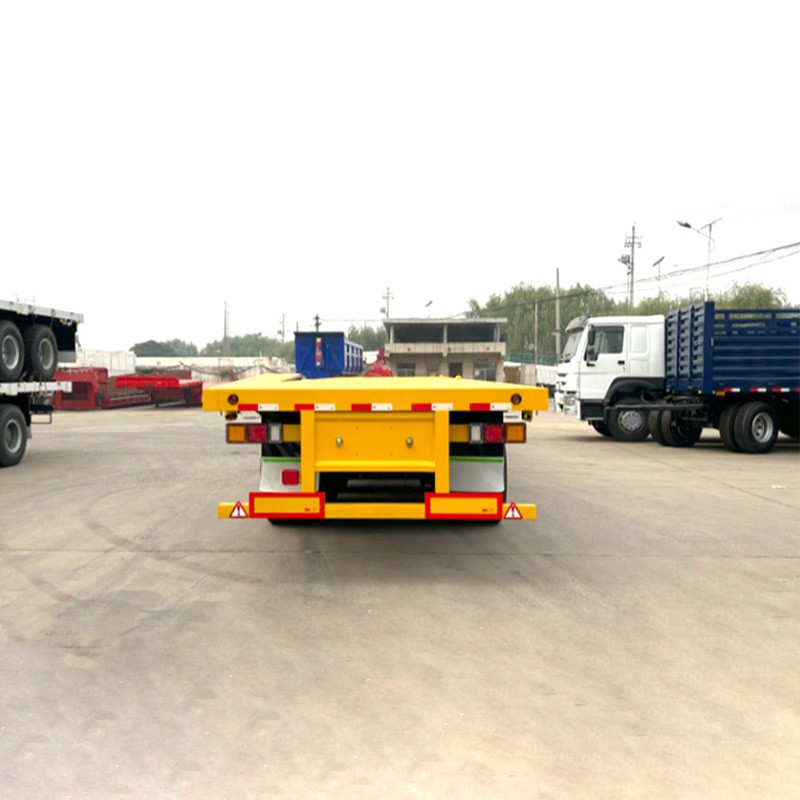

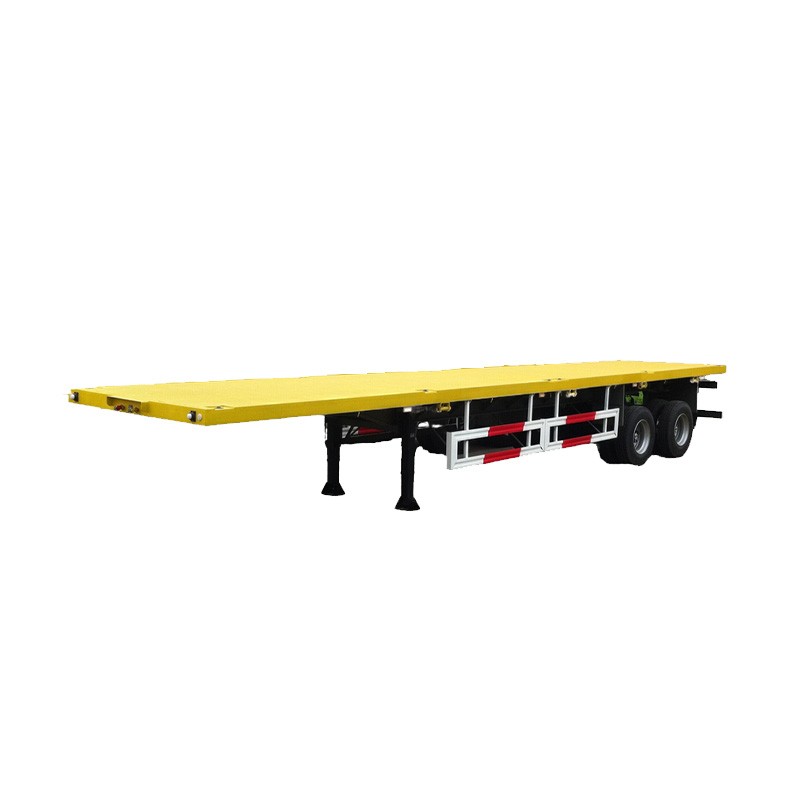

2 Axle Flatbed Container-Semi Trailer

Dimensions:
Length: Approx12400mm.
Width: Approx2440mm.
Height: Approx1620mm.
King Pin Location: Approx 1330mm from the front face of the front bolster.
Wheelbase: Approx 8050mm + 1550mm (Some dimensions may be adjusted according to tractor specification).
Payload: 60 TON.
Main Beam: 5008mm with top/bottom flange of 16/20mm*140mm.
Suspension: One set of HO’S(BAND) BOGIE suspension 32T.
Tires: 9 units of 11R22.5 Type and 8.25-22.5 rim (one spare included).
Brake System: Air break system with WABCO relay valve.
Landing Gear: JOST C-200 landing gear.
Kingpin: 2’’ JOST standard kingpin.
Locks: Twist Lock - 12 units for 1*40HQ*2*20GP container.
Accessories:
Rope Tightener (4 units on each side), total of 8 units.
Rope hook.
One tool box.
One spare type.
