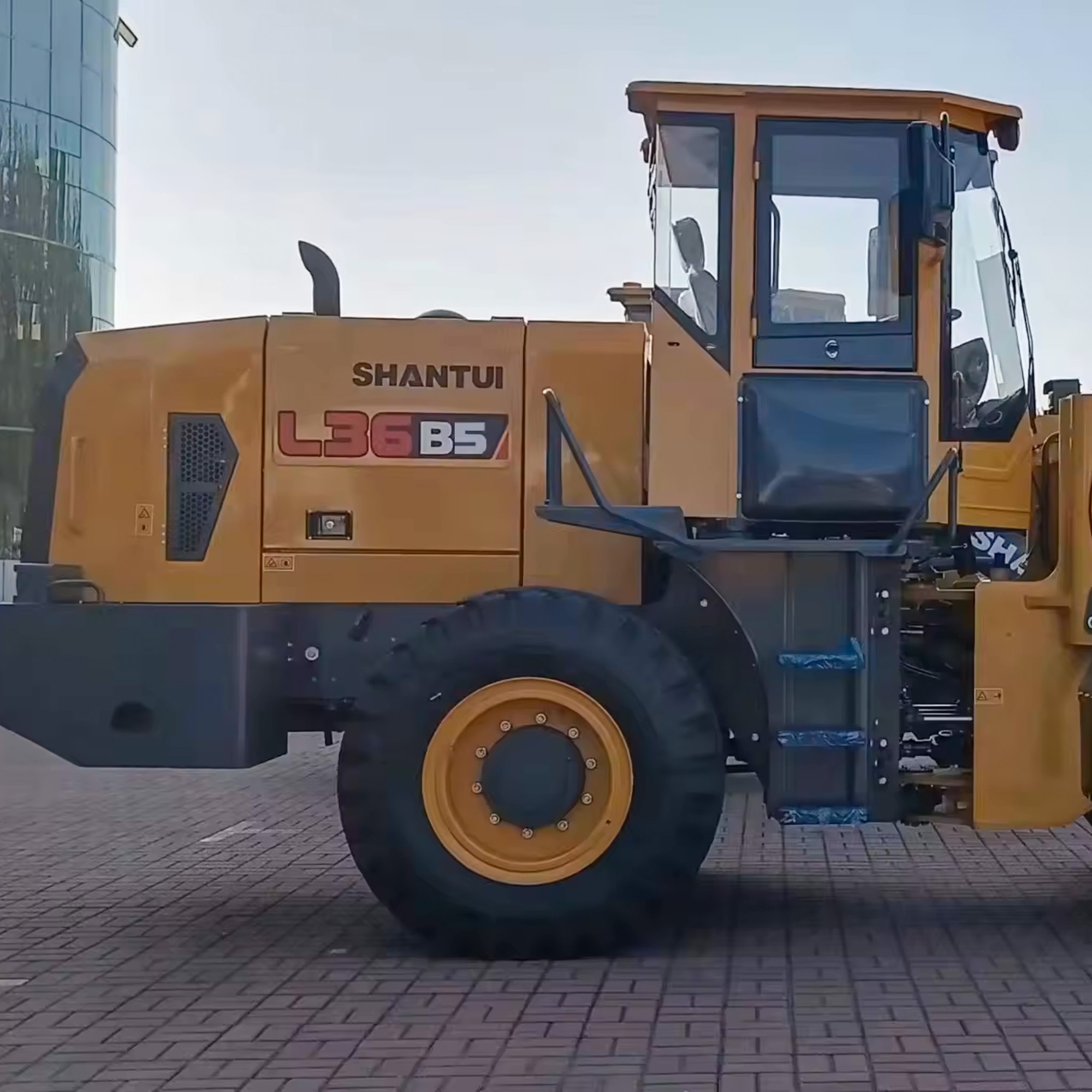

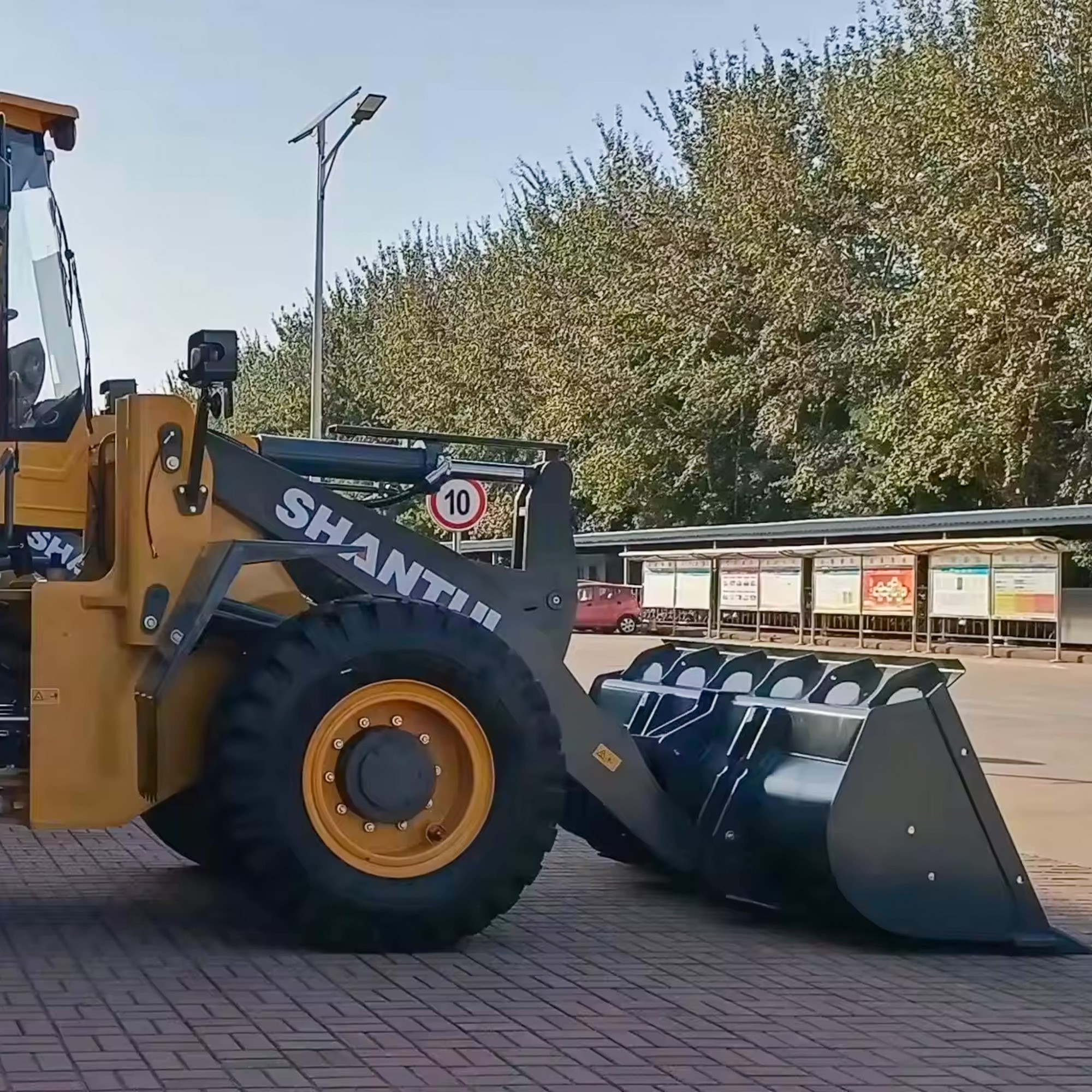

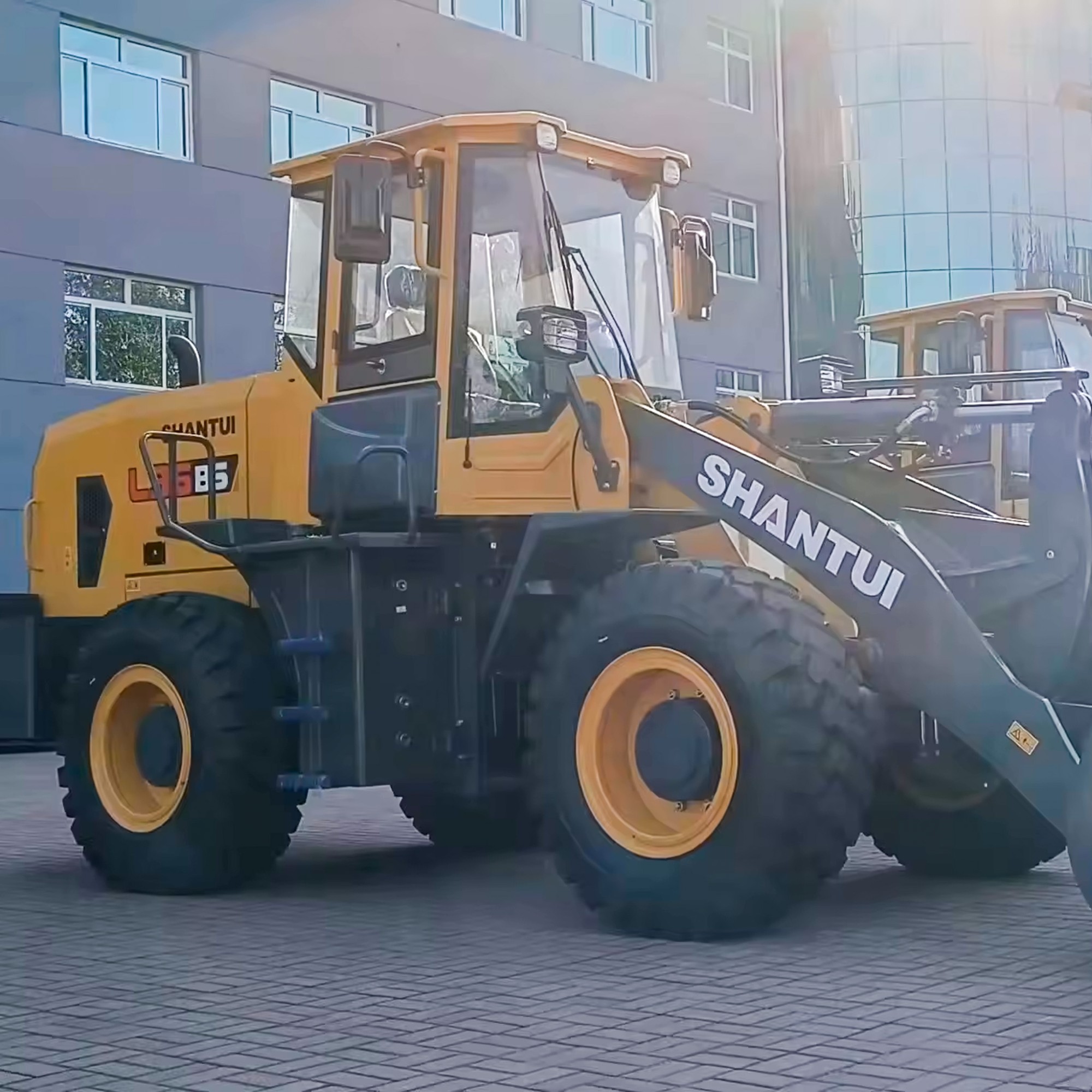

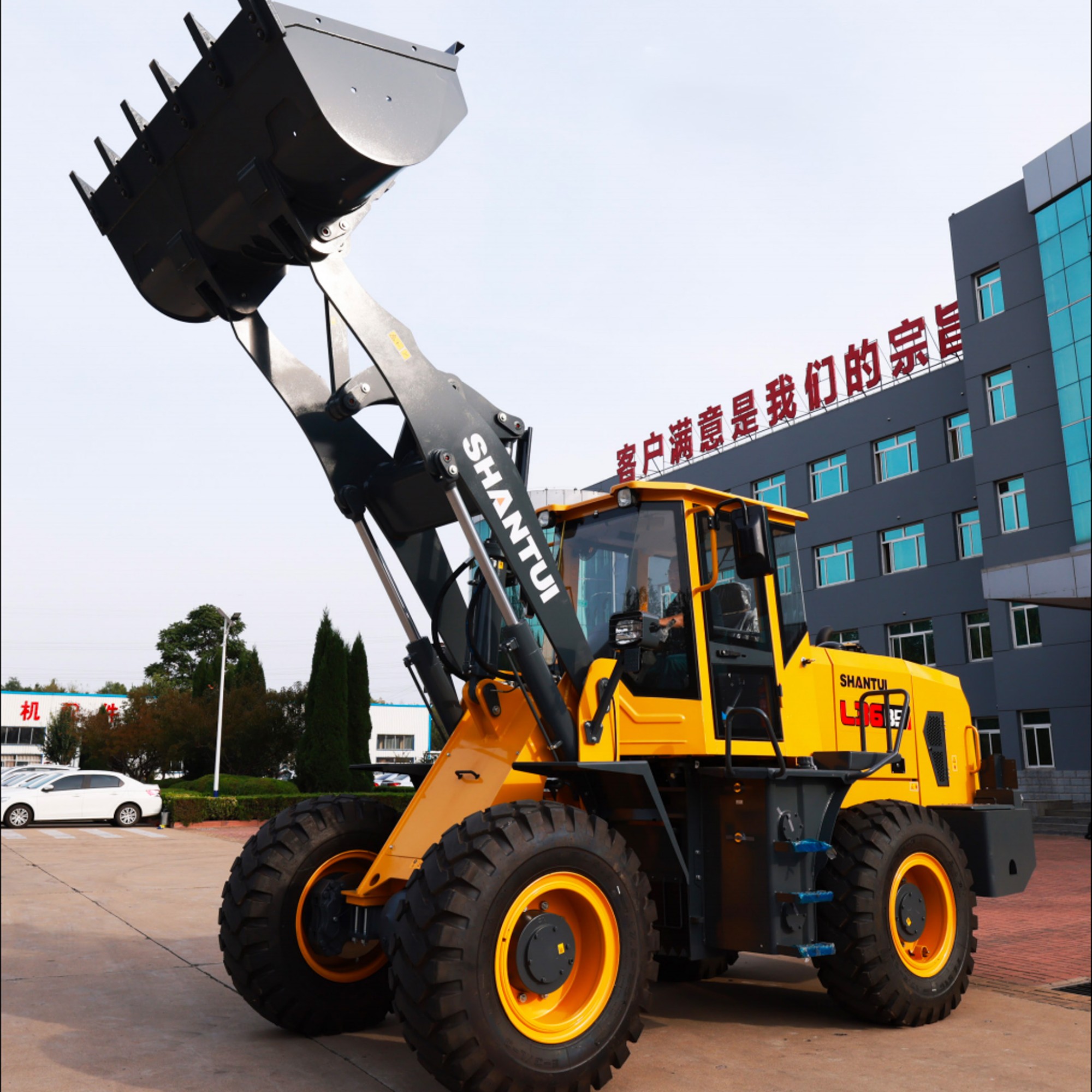

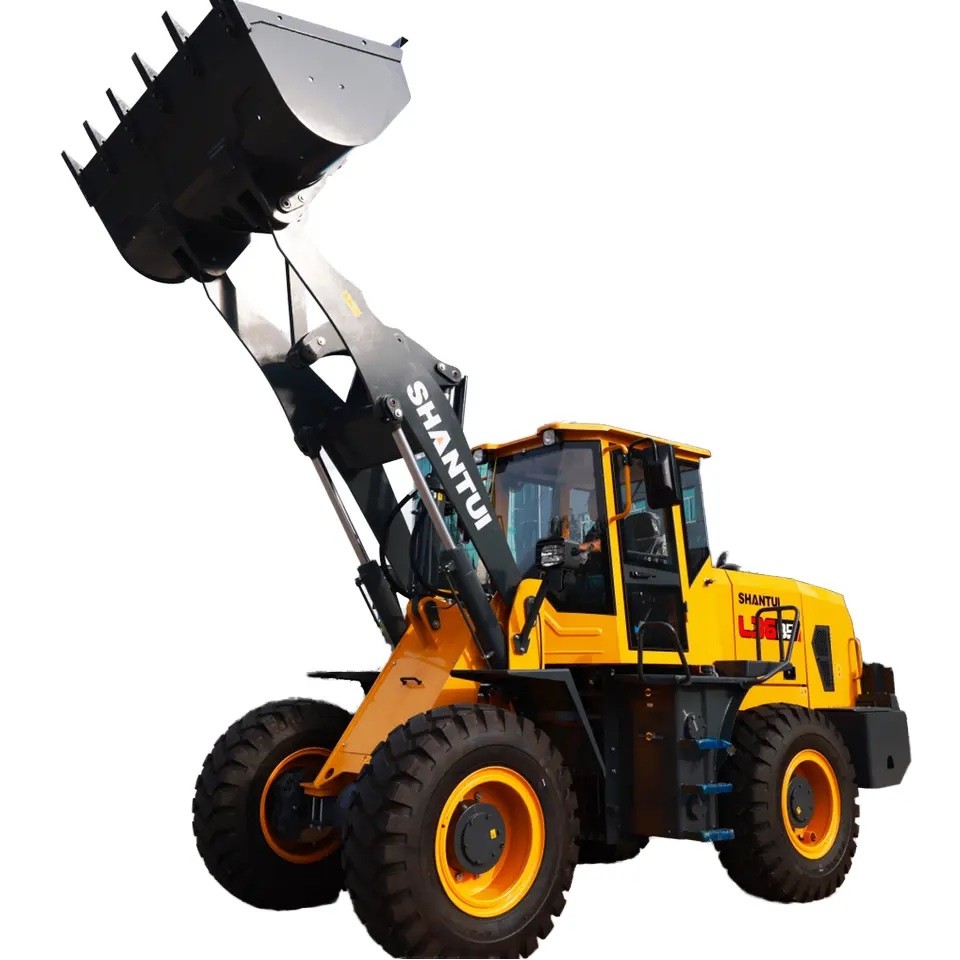

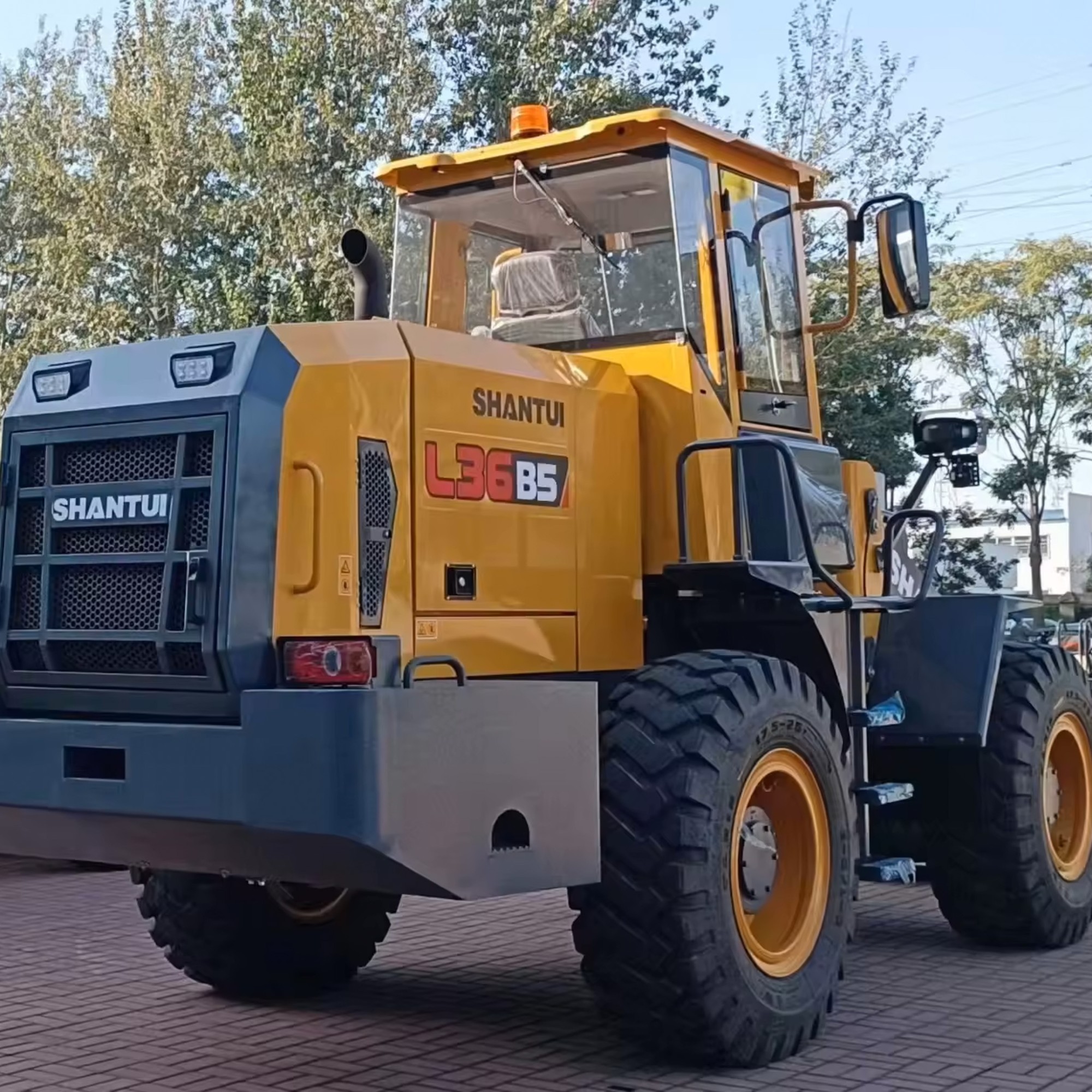

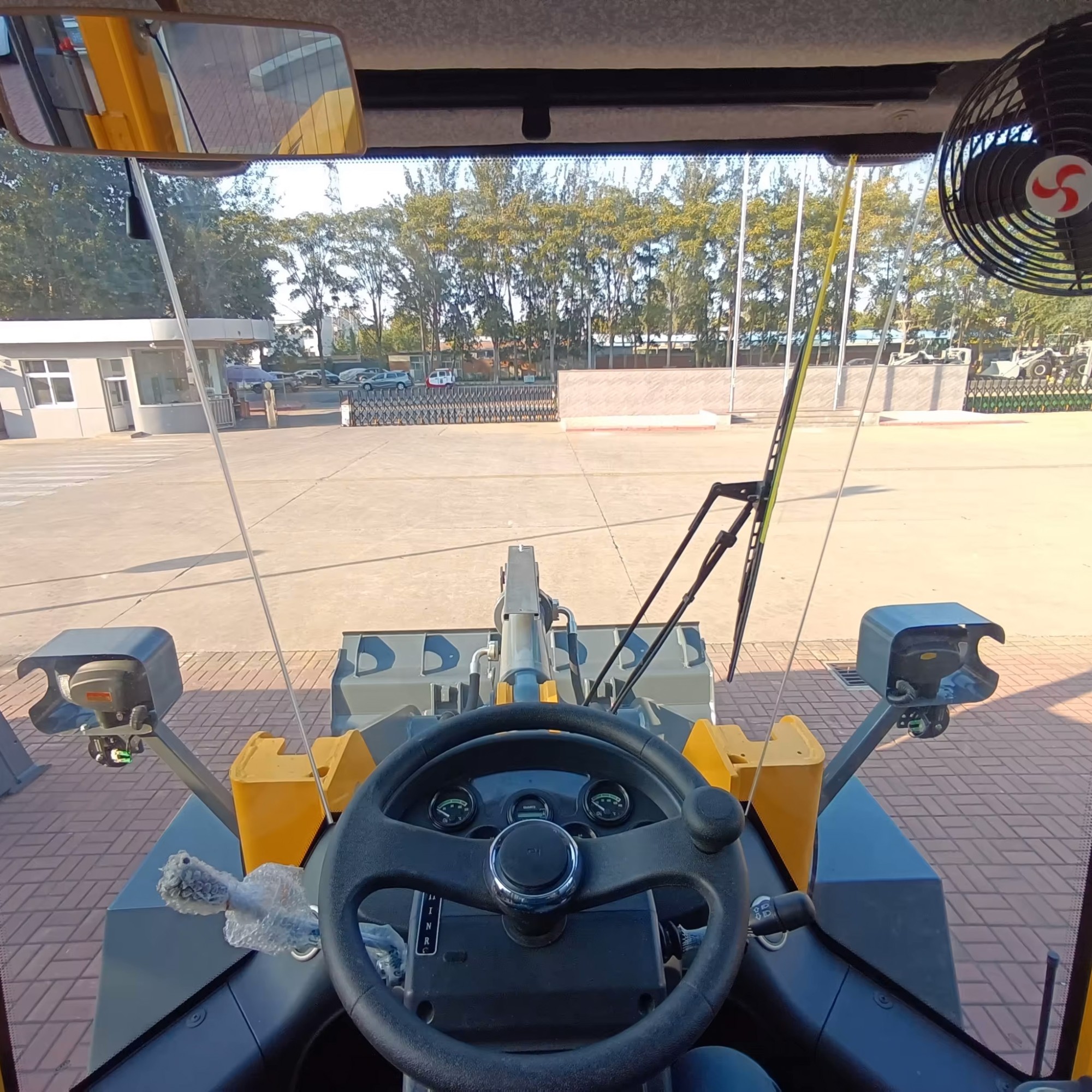

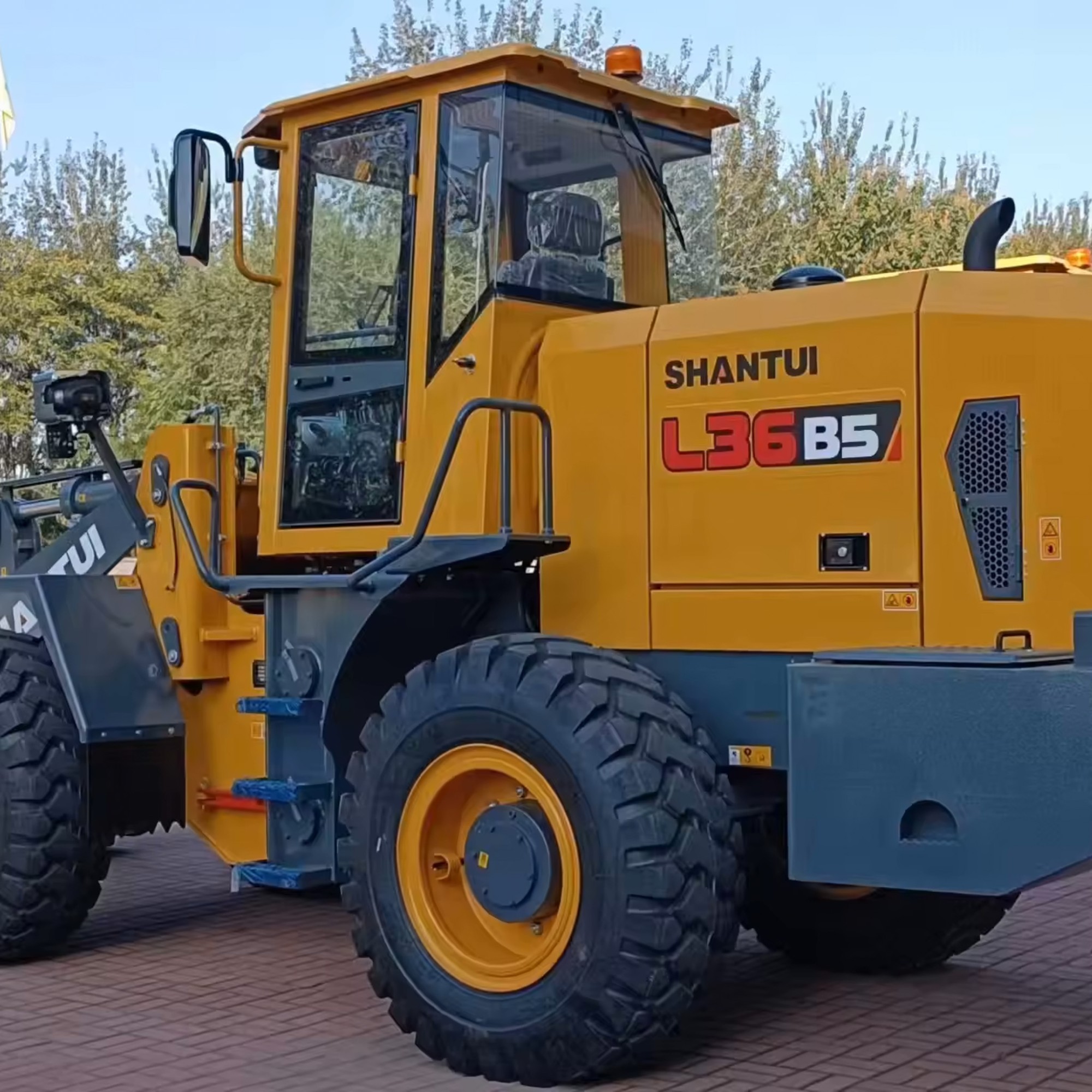

Shantui L36-B5 3Ton Wheel Loader

• Price : $28,571.00
Engine:
Emission Regulation: Tier 2/Stage ll
Make: Weichai
Model: WP6G125E22
Rated Power: 92kW@2,200rpm
Max Torque: 500N·m
Displacement: 6.754L
Number of Cylinders: 6
Aspiration: Turbocharged
Loader Arm Performance:
Tipping Load - Full Turn: 60kN
Bucket Breakout Force: 95±3kN
Maximum Dump Angle at Full Height: 45°
Dump Clearance at Full Height Discharge: 3250mm
Dump Reach at Full Height Discharge: 1000mm
Maximum Hinge Pin Height: 4060 mm
Maximum Digging Depth, Bucket Level: 15mm
Bucket Capacity: 1.7m³
Operating Weight: 10300kg
Transmission:
Transmission Type: Countershaft, power shift
Torque Converter: Single stage, three elements
Maximum Travel Speed, fwd: 36km/h
Maximum Travel Speed, rev: 28km/h
Number of Speeds, fwd: 4
Number of Speeds, rev: 2
Axles:
Differential Front Type: Conventional
Differential Rear Type: Conventional
Axle Oscillation: ±10°
Steering:
Steering Configuration: Articulated
Steering System Pressure: 14 Mpa
Brakes:
Service Brake Type: Caliper disc brake
Service Brake Actuation: Air over Hydraulic
Parking Brake Type: Flexible shaft control
Parking Brake Actuation: Mechanical
Tires:
Tire Size: 17.5 - 25
Hydraulic System:
Main Pump Type: Gear
Main Relief Pressure: 16Mpa
Raise time: 5.0S
Total Cycle Time: 9.0S
Service Capacity:
Fuel Tank: 200L
Hydraulic oil Tank: 165L
Engine Oil: 14L
Axles, each: 36L
Transmission: 36L
Cooling System: 27kg
Dimensions:
Length: 7450mm
Width: 2430 mm
Height: 3180mm
Wheelbase: 2850mm
Wheel Tread: 1850mm
Ground Clearance: 345mm
Turn Angle, Either Side: 35°
Turning Radius, Outside of Tire: 5700mm
Turning Radius, Center of Tire: 5450mm
Turning Radius, Bucket Carry: 6250mm.
