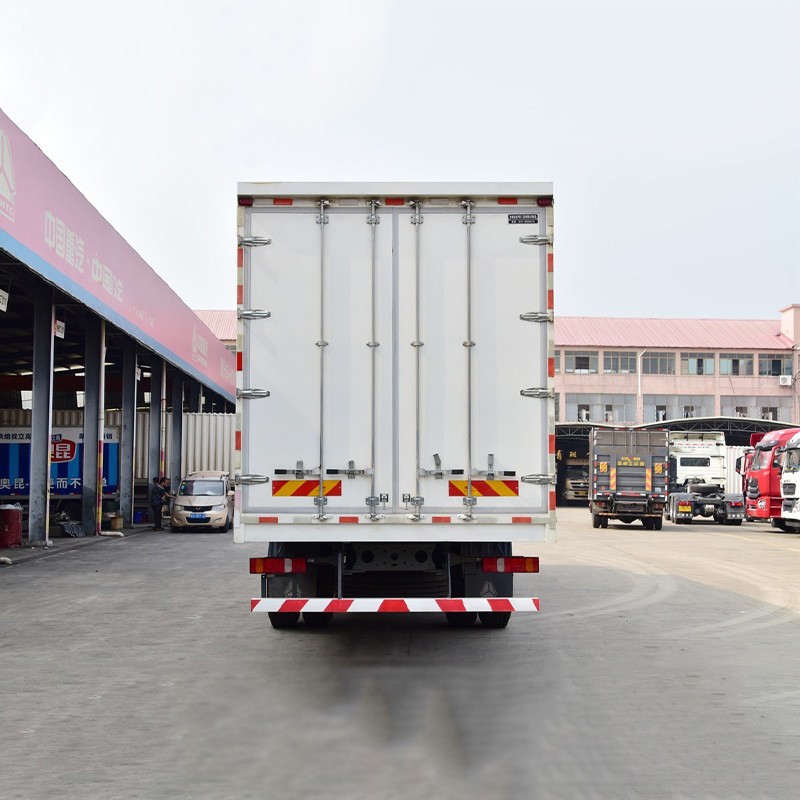

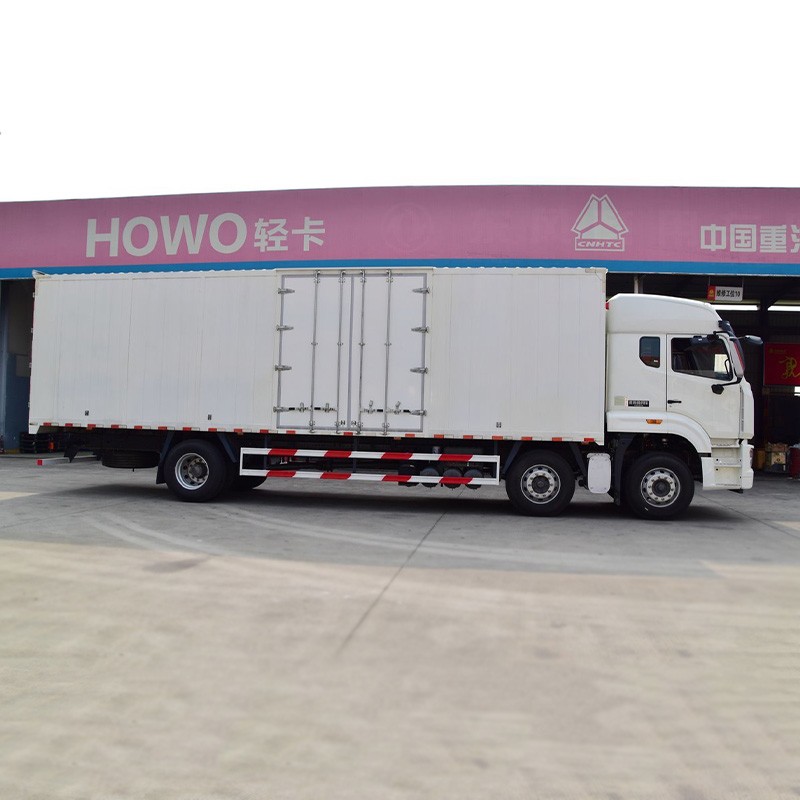

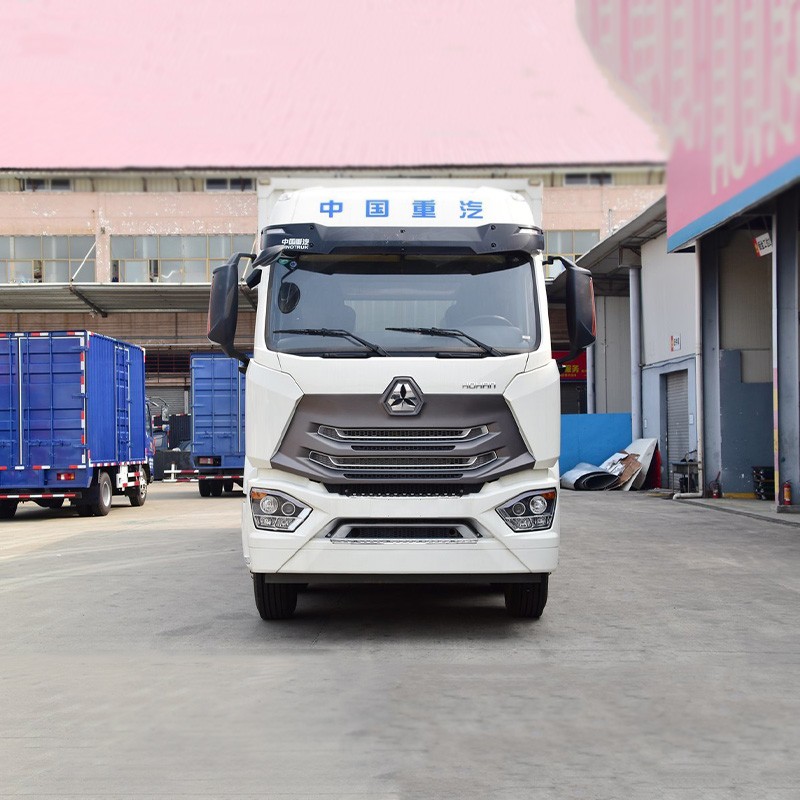

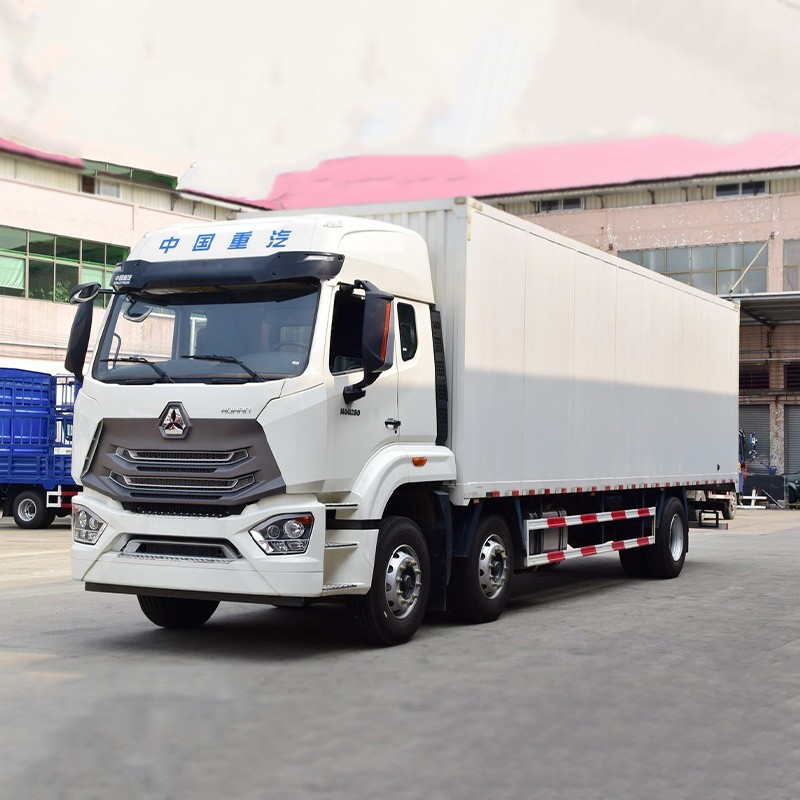

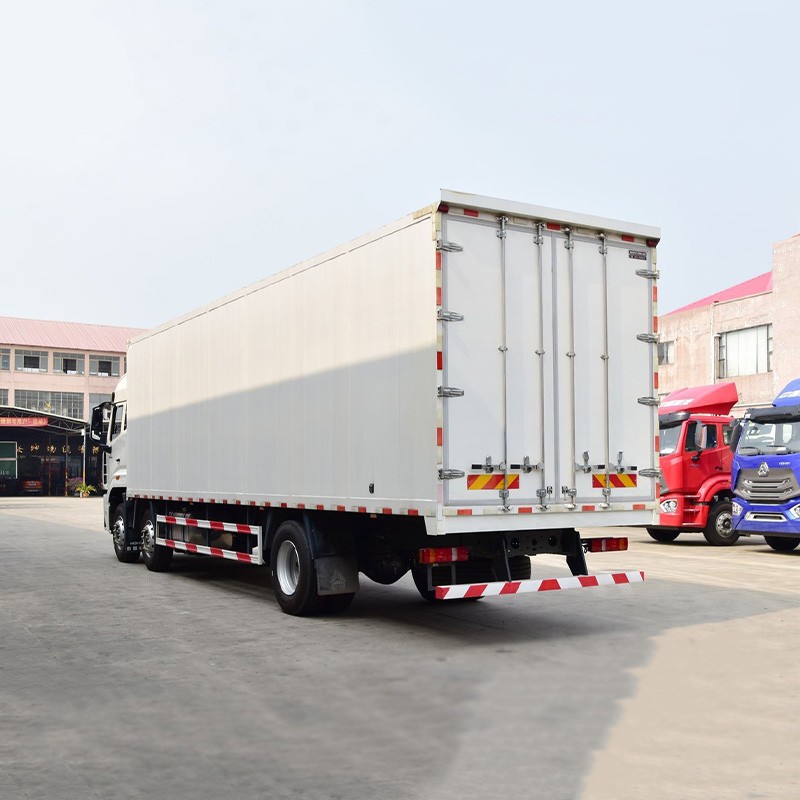

Sinotruk Hohan N5G Heavy Truck 280HP 6x2 9.73m Van Truck

• Price : $35,000.00 - $38,000.00
Basic information
Bulletin model: ZZ5255XXYM56C3E1
Type: Van
Drive form: 6X2
Wheelbase: 1800+5600mm
Box length class: 9.7m
Body length: 11.995 m
Body width: 2.55 m
Body height: 3.98 m
Front track: 2041/2041mm
Rear track: 1860mm
Weight information:
Vehicle weight: 10.17 ton
Rated load: 14.7 ton
Gross vehicle weight: 25 ton
Performance information
Maximum speed: 102KM/h
Tonnage class: Heavy truck
Approach Angle: 20 degrees
Departure Angle: 14 degrees
Front/Rear suspension: 1.55/3.045 meters
Engine information
Model: SinotruK MC07.28-50
Brand: SinotruK
Commonly known as: Sinotruk Man 7L
Number of cylinders: 6
Fuel type: diesel
Arrangement: Straight
Displacement: 6.87L
Emission standard: Euro 5
Maximum output power: 206kw
Maximum horsepower: 280 HP
Maximum torque: 1100N · m
Maximum torque speed: 1200-1800RPM
Rated speed: 2300RPM
Form: In-line, water-cooled, four-stroke, supercharged and intercooled
Container information
Form: Van style
Length: 9.73 m
Width: 2.5 m
Height: 2.7 m
Cab information
High top double bedroom
Cab suspension: four-point airbag suspension
Cab lift: electric
Permitted passenger capacity: 2 persons
Number of rows: half rows
Transmission information
Model: Qijiang 9TS1200C
Brand: Qijiang
Shift mode: Manual
Forward gear: 9
Number of reversals: 1
Chassis information
Front axle description: H153
Front axle allowable load: 6500/7000KG
Frame size: 280×80×(7+5) mm
Rear axle description: 153
Rear axle allowable load: 11500KG
Speed ratio: 4.111
Number of spring pieces: 4/4/5
Suspension type (front/rear) : Less front and rear
Tire information
Specification: 295/80R22.518PR
Quantity: 8
Control configuration
ABS Anti-lock: Yes
External configuration
Deflector hood: Yes
Remark
Cab front and rear airbag shock absorber suspension + electric adjustable heating defrost mirrors + electric adjustable day headlights + triple lock in one + comfort package (220V power outlet + collapsible remote control key), smart passband MP5 system, speed ratio optional 4.44
